Official DistributorBy Rittal
SKU
Weight
1.515 kg

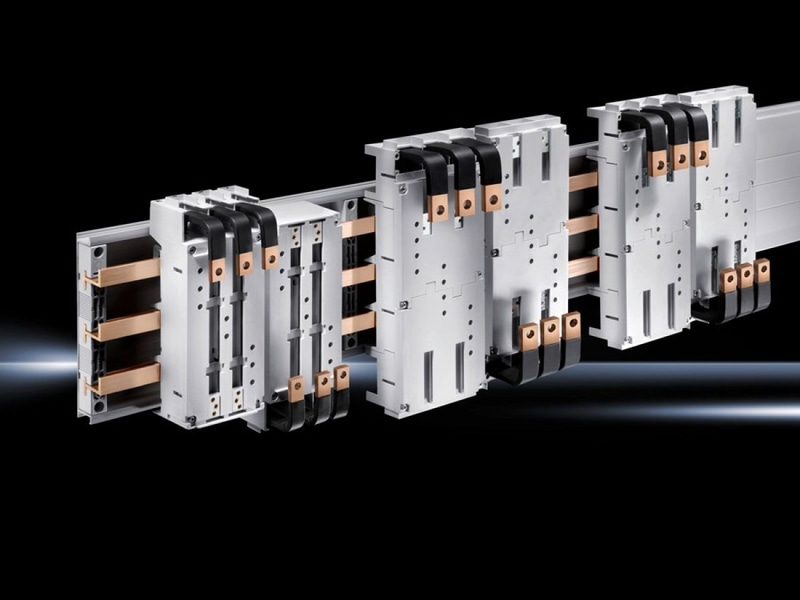

SV Circuit-breaker component adaptor, 250 A, 690 V, 3-pole, cable outlet bottom, with connection straps
Supply includes
Connection straps
Sliding Blocks
Circuit-Breaker Component Adaptors 3-pole
For mechanical attachment and the direct contact of circuit breakers on the board.
Technical Specifications
Dimensions
| Width | 105 mm |
| Height | 240 mm |
Suitable for busbars
| with cross-section height | 5, 10 mm |
| Material | Polyamide Fire protection corresponding to UL 94-V0 |
| Color | RAL 7035 |
| Rated current max. | 250 A |
| Rated operating voltage | 690 V, 3~ |
| Cable outlet | Bottom |
| For bar systems with center-to-center spacing | 60 mm |
| Note | Cable outlet: Switch outlet or as outgoing cable from the switchgear |
| Number of Poles | 3-pole |
| To fit manufacturer (model) | ABB (S3, T3, T4/320 A, T3 UL, T4 UL, XT3, XT4) |
| Weight/packaging unit | 1.515 kg |
| Copper weight (kg per piece) | 0.77 |
| Customs tariff number | 85369095 |
| EAN | 4028177679986 |
| ETIM 7.0 | EC001531 |
| ECLASS 8.0 | 27370304 |
Why Proax for Rittal 9345610?
Proax is an authorized distributor of Rittal 9345610 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
