3071357
Official DistributorSKU
PHX3071357
MPN
UDB 2X25/16 BN
Weight
0.051 kg
Series UDB

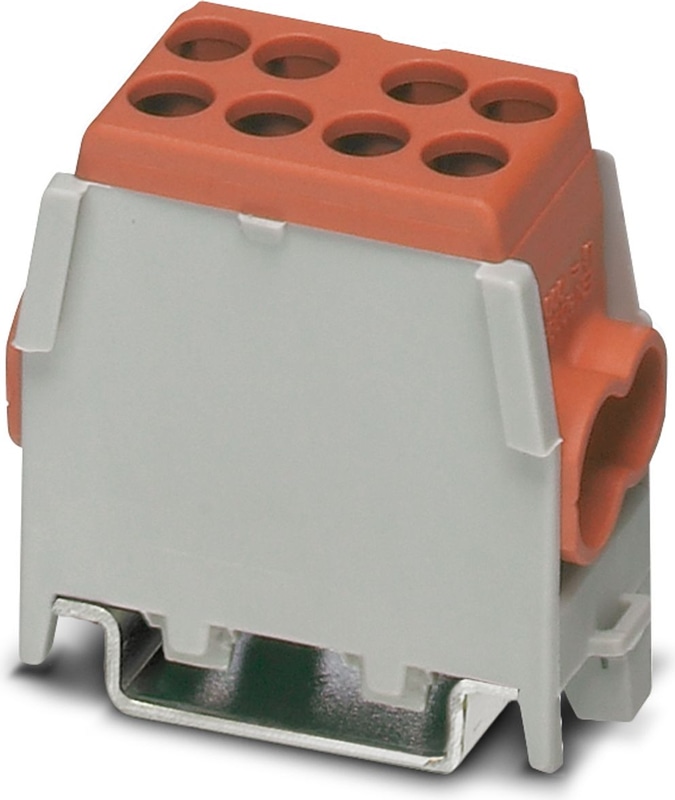

UDB 2X25/16 BN - Trunk line branch terminal
Trunk line branch terminal, nom. voltage: 400 V, nominal current: 101 A, number of connections: 4, number of positions: 1, connection method: Screw connection, 1 level, Rated cross section: 25 mm2, cross section: 1.5 mm2 - 25 mm2, Screw connection, 2nd level, cross section: 1.5 mm2 - 16 mm2, mounting type: NS 35/7,5, NS 35/15, color: brown
- The branch terminal is suitable for the simple voltage pick-off of main supply cables
- Conformance with DIN VDE 0603‑2/EN 60998‑1
Technical Specifications
Notes
| General | Up to 3 terminal blocks alignable |
General
| Note | The max. load current must not be exceeded by the total current of all connected conductors. |
Product properties
| Number of Positions | 1 |
| Number of Connections | 4 |
| Number of rows | 1 |
| Potentials | 1 |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Electrical properties
| Rated surge voltage | 8 kV |
| Maximum power dissipation for nominal condition | 3.26 W |
Connection data
| Number of connections per level | 4 |
| Nominal cross section | 25 mm² |
1 level
| Screw thread | M5/M6 |
| Tightening torque | 2.2 ... 2.5 Nm |
| Stripping length | 16 mm |
| Connection in acc. with standard | IEC 60998-1 |
| Conductor cross section rigid | 1.5 mm² ... 25 mm² |
| Cross section AWG | 14 ... 4 (converted acc. to IEC) |
| Conductor cross section flexible | 10 mm² ... 16 mm² |
| Conductor cross section, flexible [AWG] | 6 ... 6 (converted acc. to IEC) |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 1.5 mm² ... 16 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 1.5 mm² ... 10 mm² |
| Nominal Current | 101 A |
| Maximum Load Current | 101 A |
| Nominal Voltage | 400 V (max. 1000 V) |
| Note | Use ferrules for stranded conductors |
| Nominal cross section | 25 mm² |
2nd level
| Tightening torque | 1.7 ... 2 Nm |
| Stripping length | 16 mm |
| Connection in acc. with standard | IEC 60998-1 |
| Conductor cross section rigid | 1.5 mm² ... 16 mm² |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 1.5 mm² ... 10 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 1.5 mm² ... 6 mm² |
Dimensions
| Width | 23 mm |
| Height | 46 mm |
| Depth on NS 35/7,5 | 42 mm |
| Depth on NS 35/15 | 49.5 mm |
Material specifications
| Color | brown |
| Flammability rating according to UL 94 | V0 |
| Insulating material group | I |
| Insulating material | PA |
Surge voltage test
| Result | Test passed |
Temperature-rise test
| Requirement temperature-rise test | Increase in temperature ≤ 45 K |
| Result | Test passed |
| Short-time withstand current 25 mm² | 3 kA |
| Result | Test passed |
Power-frequency withstand voltage
| Test voltage setpoint | 1.89 kV |
| Result | Test passed |
Mechanical data
| Open side panel | No |
Mechanical strength
| Result | Test passed |
Attachment on the carrier
| DIN rail/fixing support | NS 32/NS 35 |
| Result | Test passed |
Test for conductor damage and slackening
| Rotation speed | 10 (+/- 2) rpm |
| Revolutions | 135 |
| Conductor cross section/weight | 1.5 mm² / 0.4 kg |
| Conductor cross section/weight | 16 mm² / 2.9 kg |
| Conductor cross section/weight | 25 mm² / 4.5 kg |
| Result | Test passed |
Needle-flame test
| Time of exposure | 30 s |
| Result | Test passed |
Oscillation/broadband noise
| Specification | DIN EN 50155 (VDE 0115-200):2018-05 |
| Spectrum | Service life test category 2, bogie-mounted |
| Frequency | f1 = 5 Hz to f2 = 250 Hz |
| ASD level | 6.12 (m/s²)²/Hz |
| Acceleration | 3.12g |
| Test duration per axis | 5 h |
| Test directions | X-, Y- and Z-axis |
| Result | Test passed |
Shocks
| Pulse shape | Half-sine |
| Acceleration | 5g |
| Shock duration | 30 ms |
| Number of shocks per direction | 3 |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
| Result | Test passed |
Ambient conditions
| Ambient Temperature (Operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Standards and Regulations
| Connection in acc. with standard | IEC 60998-1 |
| Connection in acc. with standard | IEC 60998-1 |
Mounting
| Mounting Type | NS 35/7,5 |
| Mounting Type | NS 35/15 |
