Name: 3047439
Brand: Phoenix Contact
SKU: PHX3047439
Price: 25.9500 CAD
Availability: BackOrder

Official Distributor

By Phoenix Contact

SKU

MPN

BES 6 SO

Weight

0.008 kg

Series BES

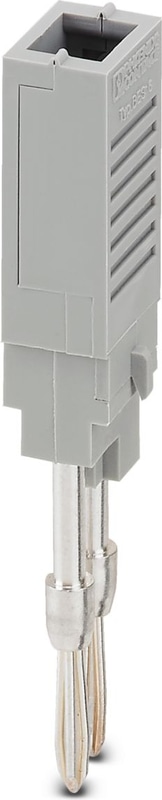

BES 6 SO - Component connector

Component connector, sleeve length: 16.5 mm, depth: 58.9 mm, width: 12.2 mm, height: 8.7 mm

Product properties

Potentials

Connection data

Tightening torque

0.5 ... 0.6 Nm

Dimensions

Width	12.2 mm
Height	8.7 mm
Depth	58.9 mm
Sleeve length	16.5 mm
Ferrule diameter	4 mm

Material specifications

Flammability rating according to UL 94	V2
Insulating material	PA

Technical data

Sleeve length

16.5 mm

Ambient conditions

Ambient Temperature (Operation)	-60 °C ... 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (storage/transport)	30 % ... 70 %
