9320070
Official DistributorBy Rittal
SKU
RIT9320070
Weight
1.9 kg
Series PLS expansion connector

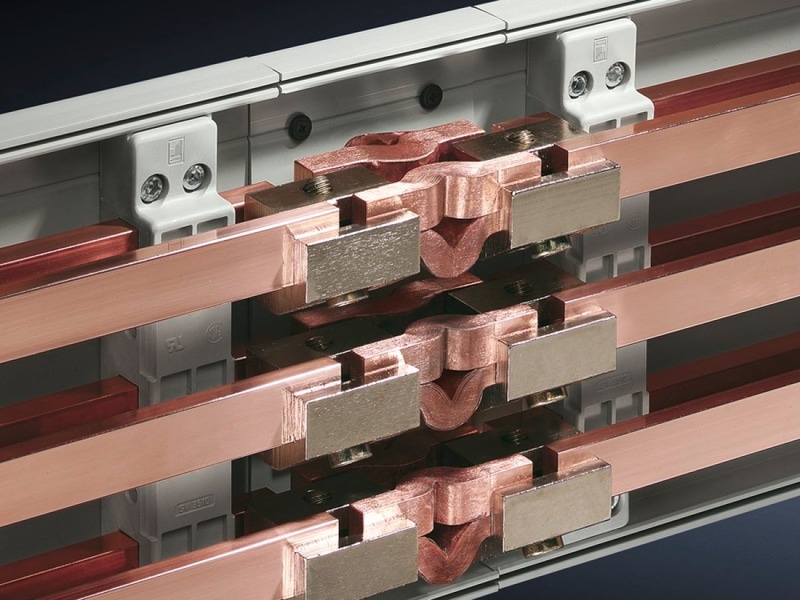

SV Expansion connector E-Cu, PLS 1600
PLS expansion connector
For thermal and mechanical compensation during connection of PLS special busbars from enclosure to enclosure.
Technical Specifications
| Material | E-Cu |
| Mounting tip | Two busbar connectors are needed to fit one expansion connector. |
| Note | With a temperature increase of 30 K, the busbars will expand in length by around 0.5 mm/m. Consequently, the use of an expansion connector is recommended for busbar systems with lengths in excess of 3 m. |
| Suitable for busbars | PLS 1600 |
| Packaging unit | 3 pc(s). |
| Weight/packaging unit | 1.9 kg |
| Copper weight (kg per piece) | 0.6 |
| Customs tariff number | 85369010 |
| EAN | 4028177162372 |
| ETIM 7.0 | EC000713 |
| ECLASS 8.0 | 27400606 |
Why Proax for Rittal 9320070?
Proax is an authorized distributor of Rittal 9320070 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
