9320060
Official DistributorBy Rittal
SKU
RIT9320060
Weight
0.55 kg
Series PLS expansion connector
SV Expansion connector E-Cu, PLS 800

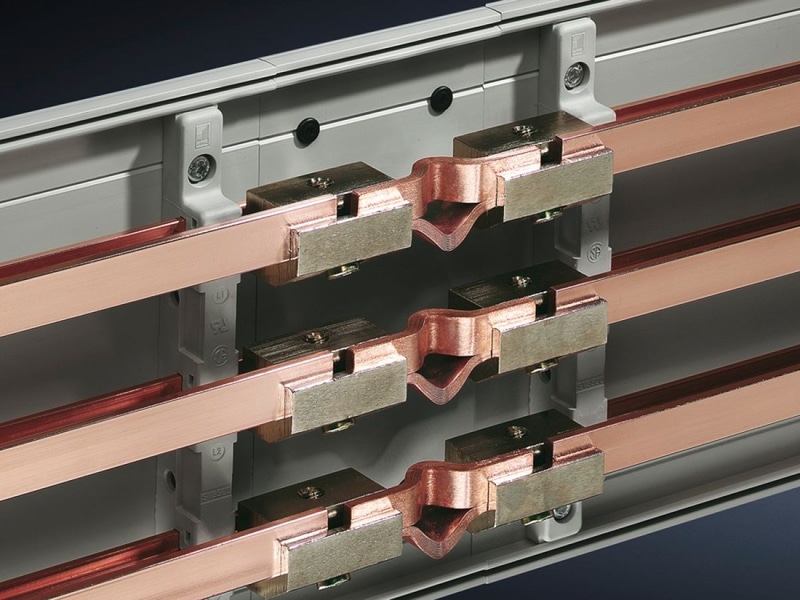

PLS expansion connector
For thermal and mechanical compensation during connection of PLS special busbars from enclosure to enclosure.
Technical Specifications
| Material | E-Cu |
| Mounting tip | Two busbar connectors are needed to fit one expansion connector. |
| Note | With a temperature increase of 30 K, the busbars will expand in length by around 0.5 mm/m. Consequently, the use of an expansion connector is recommended for busbar systems with lengths in excess of 3 m. |
| Suitable for busbars | PLS 800 |
| Packaging unit | 3 pc(s). |
| Weight/packaging unit | 0.55 kg |
| Copper weight (kg per piece) | 0.13 |
| Customs tariff number | 85369010 |
| EAN | 4028177162365 |
| ETIM 7.0 | EC000713 |
| ECLASS 8.0 | 27400606 |
