Phoenix Contact 3005841
AllConnectorsTerminal blocksScrew connection

3005841

Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
PHX3005841
MPN
UK 1,5 N VT
Weight
0.005 kg
Series UK

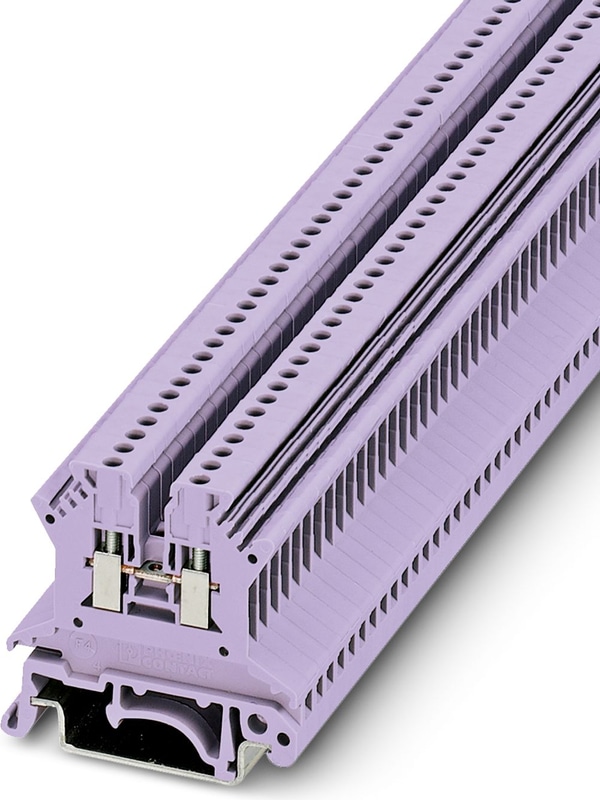

UK 1,5 N VT - Feed-through terminal block

Feed-through terminal block, nom. voltage: 500 V, nominal current: 17.5 A, number of connections: 2, connection method: Screw connection, Rated cross section: 1.5 mm2, cross section: 0.14 mm2 - 1.5 mm2, mounting type: NS 35/7,5, NS 35/15, NS 32, color: violet

  • Universal foot which can be used on NS 35... and NS 32... DIN rails
  • The UK universal screw terminal block series has the typical features which are decisive for practical applications
  • Potential distribution via fixed bridges in the terminal center or insertion bridges in the clamping space
Technical Specifications

Product properties

Number of Connections2
Number of rows1
Potentials1

Insulation characteristics

Overvoltage categoryIII
Degree of pollution3

Electrical properties

Rated surge voltage6 kV
Maximum power dissipation for nominal condition0.56 W

Connection data

Number of connections per level2
Nominal cross section1.5 mm²

Level 1 above 1 below 1

Screw threadM2
Tightening torque0.22 ... 0.25 Nm
Stripping length7 mm
Internal cylindrical gageA1
Connection in acc. with standardIEC 60947-7-1
Conductor cross section rigid0.14 mm² ... 1.5 mm²
Cross section AWG26 ... 16 (converted acc. to IEC)
Conductor cross section flexible0.14 mm² ... 1.5 mm²
Conductor cross section, flexible [AWG]26 ... 16 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)0.25 mm² ... 0.75 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.25 mm² ... 0.75 mm²
2 conductors with same cross section, solid0.14 mm² ... 0.75 mm²
2 conductors with same cross section, flexible0.14 mm² ... 0.75 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve0.25 mm² ... 0.34 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve0.5 mm² ... 0.5 mm²
Nominal Current17.5 A
Maximum Load Current17.5 A (with 1.5 mm² conductor cross section)
Nominal Voltage500 V
Nominal cross section1.5 mm²

Rated data (ATEX/IECEx)

Identification II 2 GD  Ex eb IIC Gb
Operating temperature range-60 °C ... 110 °C
Ex-certified accessories3001022 D-UK 2,5
Ex-certified accessories1205037 SZS 0,4X2,5 VDE
Ex-certified accessories1201442 E/UK
List of bridgesFixed bridge / FBRN 10-4 N / 3001624
List of bridgesFixed bridge / FBRN 20-4 N / 3001637
Bridge data15.5 A / 1.5 mm²
Ex temperature increase40 K (17.5 A / 1.5 mm²)
Rated voltage352 V
for bridging with bridge352 V
- At bridging between non-adjacent terminal blocks69 V
Rated Insulation Voltage320 V
Output(Permanent)

Ex level General

Rated current15.5 A
Maximum Load Current15.5 A
Contact resistance0.45 mΩ

Ex connection data General

Torque range0.22 Nm ... 0.25 Nm
Nominal cross section1.5 mm²
Rated cross section AWG16
Connection capacity rigid0.14 mm² ... 1.5 mm²
Connection capacity AWG26 ... 16
Connection capacity flexible0.14 mm² ... 1.5 mm²
Connection capacity AWG26 ... 16
2 conductors with same cross section, solid0.14 mm² ... 0.75 mm²
2 conductors with the same cross-section AWG rigid26 ... 18
2 conductors with same cross section, stranded0.14 mm² ... 0.75 mm²
2 conductors with the same cross-section AWG flexible26 ... 18

Dimensions

Width4.2 mm
End cover width1.5 mm

Material specifications

Colorviolet
Flammability rating according to UL 94V0
Insulating material groupI
Insulating materialPA
Static insulating material application in cold-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed

Surge voltage test

Test voltage setpoint7.3 kV
ResultTest passed

Temperature-rise test

Requirement temperature-rise testIncrease in temperature ≤ 45 K
ResultTest passed
Short-time withstand current 1.5 mm²0.18 kA
ResultTest passed

Power-frequency withstand voltage

Test voltage setpoint1.89 kV
ResultTest passed

Mechanical data

Open side panelYes

Mechanical strength

ResultTest passed

Attachment on the carrier

DIN rail/fixing supportNS 32/NS 35
Test force setpoint1 N
ResultTest passed

Test for conductor damage and slackening

Rotation speed10 rpm
Revolutions135
Conductor cross section/weight0.14 mm² / 0.2 kg
Conductor cross section/weight1.5 mm² / 0.4 kg
ResultTest passed

Needle-flame test

Time of exposure30 s
ResultTest passed

Ambient conditions

Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (storage/transport)30 % ... 70 %

Standards and Regulations

Connection in acc. with standardIEC 60947-7-1

Mounting

Mounting TypeNS 35/7,5
Mounting TypeNS 35/15
Mounting TypeNS 32
Accessories
  • Phoenix Contact3001022
    3001022
    D-UK 2,5 - End cover, depth: 30.7 mm, width: 1.5 mm, height: 42.5 mm, color: gray
  • Phoenix Contact3003224
    3003224
    Partition plate - ATP-UK
  • Phoenix Contact1205037
    1205037
    Screwdriver - SZS 0,4X2,5 VDE
  • Phoenix Contact3001608
    3001608
    Fixed bridge - FBRN 8-4 N
  • Phoenix Contact3001598
    3001598
    Fixed bridge - FBRN 7-4 N
  • Phoenix Contact3001572
    3001572
    Fixed bridge - FBRN 5-4 N
  • Phoenix Contact3001569
    3001569
    Fixed bridge - FBRN 4-4 N
  • Phoenix Contact3001637
    3001637
    Fixed bridge - FBRN 20-4 N
  • Phoenix Contact3001624
    3001624
    Fixed bridge - FBRN 10-4 N
  • Phoenix Contact1201002
    1201002
    NS 32 PERF 2000MM-VPE 10 - DIN rail perforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, G profile, color: silver
  • Phoenix Contact1201015
    1201015
    NS 32 UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, G profile, color: silver
  • Phoenix Contact0801733
    0801733
    NS 35/ 7,5 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact0801681
    0801681
    NS 35/ 7,5 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact1204119
    1204119
    NS 35/ 7,5 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
  • Phoenix Contact1204122
    1204122
    NS 35/ 7,5 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
  • Phoenix Contact0801704
    0801704
    NS 35/ 7,5 AL UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
  • Phoenix Contact1206421
    1206421
    DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • Phoenix Contact1206434
    1206434
    NS 35/ 7,5 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • Phoenix Contact0801762
    0801762
    NS 35/ 7,5 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
  • Phoenix Contact1206560
    1206560
    NS 35/ 7,5 CAP - DIN rail end piece, for DIN rail NS 35/7.5
  • Phoenix Contact1201730
    1201730
    NS 35/15 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact1201714
    1201714
    NS 35/15 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact0806602
    0806602
    NS 35/15 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: white
  • Phoenix Contact1204135
    1204135
    NS 35/15 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
  • Phoenix Contact1201756
    1201756
    NS 35/15 AL UNPERF 2000MM - DIN rail, unperforated, similar to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
  • Phoenix Contact1206599
    1206599
    NS 35/15 ZN PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • Phoenix Contact1206586
    1206586
    NS 35/15 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • Phoenix Contact1201895
    1201895
    NS 35/15 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
  • Phoenix Contact1206573
    1206573
    NS 35/15 CAP - DIN rail end piece, for DIN rail NS 35/15
  • Phoenix Contact1201798
    1201798
    NS 35/15-2,3 UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile 2.3 mm, color: silver
  • Phoenix Contact0805001
    0805001
    Zack marker strip - ZB 4 :UNBEDRUCKT
  • Phoenix Contact0805807
    0805807
    0805807 -
  • Phoenix Contact0818111
    0818111
    Marker for terminal blocks - UC-TM 4
  • Phoenix Contact0828732
    0828732
    Marker for terminal blocks - UCT-TM 4
  • Phoenix Contact3022218
    3022218
    CLIPFIX 35 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, width: 9.5 mm, color: gray
  • Phoenix Contact3022276
    3022276
    CLIPFIX 35-5 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, with parking option for FBS...5, FBS...6, KSS 5, KSS 6, width: 5.15 mm, color: gray
  • Phoenix Contact0800886
    0800886
    E/NS 35 N - End clamp, width: 9.5 mm, color: gray
  • Phoenix Contact1201442
    1201442
    E/UK - End bracket, Mounting on a DIN rail NS 32 or NS 35, material: PA, color: gray
  • Phoenix Contact1201413
    1201413
    E/UK 1 - End clamps, for supporting the ends of double-level and three-level terminal blocks, width: 10 mm, color: gray
  • Phoenix Contact3030925
    3030925
    Test adapter - PAI-4
