2920104
Official DistributorSKU
PHX2920104
Weight
0.027 kg

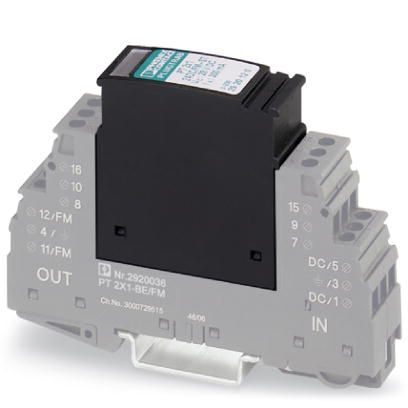

Surge protection plug - PT 2X1-5DC/FM-ST
Surge protection plug with integrated diagnostic and status indicator on the module and remote indication contact for two signal wires with common reference potential. Nominal voltage: 5 V DC
- Permanent protective device monitoring with optical signaling via LED
- Maximum ease of maintenance thanks to the two-piece design
- The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
- Easy selection for all possible demands in MCR applications with a complete product portfolio
- Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
Technical Specifications
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
Dimensions
| Height | 44.8 mm |
| Width | 17.5 mm |
| Depth | 51.7 mm |
| Horizontal pitch | 1 Div. |
| Complete module height | 90 mm |
| Complete module width | 17.7 mm |
| Complete module depth | 65.5 mm |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
| Degree of Protection | IP20 |
General
| Housing Material | PA 6.6 |
| Flammability rating according to UL 94 | V-0 |
| Color | black |
| Standards for cearances and creepage distances | VDE 0110-1 |
| Standards for cearances and creepage distances | IEC 60664-1 |
| Mounting Type | on base element |
| Type | Male |
| Direction of action | Line-Line & Line-Signal Ground/Shield & optional Signal Ground/Shield-Earth Ground |
Protective circuit
| IEC test classification | C1 |
| IEC test classification | C2 |
| IEC test classification | C3 |
| IEC test classification | D1 |
| VDE requirement class | C1 |
| VDE requirement class | C2 |
| VDE requirement class | C3 |
| VDE requirement class | D1 |
| Nominal voltage UN | 5 V DC |
| Maximum continuous voltage UC | 6 V DC |
| Maximum continuous voltage UC | 4 V AC |
| Rated current | 300 mA (45 °C) |
| Operating effective current IC at UC | ≤ 1 mA |
| Residual current IPE | ≤ 1 µA (with PT 2X1+F-BE) |
| Residual current IPE | ≤ 2 mA (Directly grounded) |
| Nominal discharge current In (8/20) µs (line-earth) | 10 kA |
| Pulse discharge current Iimp (10/350) µs | 2.5 kA (per path) |
| Total discharge current Itotal (8/20) µs | 20 kA |
| Max. discharge current Imax (8/20) µs maximum (line-earth) | 10 kA |
| Nominal pulse current Ian (10/1000) µs (line-earth) | 145 A (25 °C / 1x) |
| Nominal pulse current Ian (10/1000) µs (line-earth) | 50 A (25 °C) |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 14 V |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 600 V (with PT 2X1+F-BE) |
| Output voltage limitation at 1 kV/µs (line-signalground) spike | ≤ 14 V |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 11 V |
| Output voltage limitation at 1 kV/µs (line-signalground) static | ≤ 11 V |
| Residual voltage at In (line-earth) | ≤ 10 V |
| Residual voltage with Ian (10/1000) µs (line-earth) | ≤ 12 V |
| Voltage protection level Up (line-earth) | ≤ 11 V (C1 - 500 V / 250 A) |
| Voltage protection level Up (line-earth) | ≤ 10 V (C3 - 25 A) |
| Voltage protection level Up (line-signalground) | ≤ 11 V (C1 - 500 V / 250 A) |
| Voltage protection level Up (line-signalground) | ≤ 10 V (C3 - 25 A) |
| Response time tA (line-earth) | ≤ 1 ns |
| Input attenuation aE, asym. | typ. 0.5 dB (≤ 200 kHz / 50 Ω) |
| Input attenuation aE, asym. | typ. 0.2 dB (≤ 100 kHz / 150 Ω) |
| Cut-off frequency fg (3 dB), asym. (signal ground) in 50 Ω system | typ. 1 MHz |
| Cut-off frequency fg (3 dB), asym. (signal ground) in 150 Ω system | typ. 0.4 MHz |
| Resistance per path | 4.7 Ω (7-8/11-12) |
| Surge protection fault message | Optical, remote indicator contact |
| Max. required back-up fuse | 315 mA (T) |
| Impulse durability (line-earth) | C2 - 10 kV / 5 kA |
| Impulse durability (line-earth) | D1 - 2.5 kA |
| Impulse durability (line-earth) | C3 - 25 A |
| Alternating current carrying capacity (line-earth) | 5 A - 1 s |
Connection data
| Connection Method | Screw connection (in connection with the base element) |
| Screw thread | M3 |
| Tightening torque | 0.8 Nm |
| Stripping length | 8 mm |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 12 |
Remote indication contact
| Switching function | N/C contact |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Maximum operating voltage Umax. AC | 250 V AC |
| Max. operating current Imax | 0.2 A (250 V AC) |
| Max. operating current Imax | 0.2 A (220 V DC) |
| Max. operating current Imax | 1 A (60 V AC) |
| Max. operating current Imax | 1 A (60 V DC) |
Standards and Regulations
| Standards/regulations | IEC 61643-21 |
| Standards/regulations | DIN EN 61643-21 |
| Standards/specifications | IEC 61643-21 2002 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
| China RoHS | Environmentally Friendly Use Period = 50 years |
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Accessories
X-PEN 0,35 - Marker pen without ink cartridge, for manual labeling of markers, labeling extremely wipe-proof, line thickness 0.35 mm
Why Proax for Phoenix Contact 2920104?
Proax is an authorized distributor of Phoenix Contact 2920104 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
