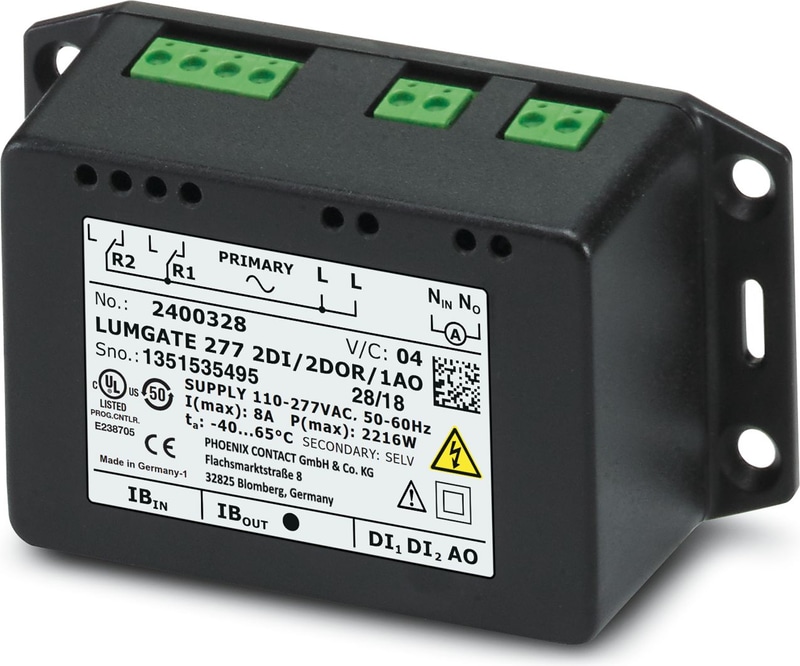

LUMGATE 277 2DI/2DOR/1AO - Luminaire control unit
Luminaire control unit for controlling LED drivers, 110 V ... 277 V input voltage, 2 relay outputs, 8 A load current, up to 8 LED drivers can be controlled, 10 V analog interface, measurement of load currents
- Compact housing
- AC power supply
Technical Specifications
Utilization restriction
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Product properties
| Product family | Stand-Alone |
| Type | Stand-Alone |
| Diagnostics messages | Bus error in INTERBUS |
Insulation characteristics
| Overvoltage category | II |
| Pollution degree | 2 |
Module
| ID code (dec.) | 51 |
| ID code (hex) | 33 |
| Input address area | 16 bit |
| Output address area | 16 bit |
Electrical properties
| Maximum power dissipation for nominal condition | max. 2216 W |
Supply: Module electronics
| Connection technology | Spring-cage connection |
| Supply Voltage | max. 250 V AC (Class II / EN 61347) |
| Supply Voltage Range | 110 V AC ... 277 V AC -13 % ... +6 % (Following consultation with the manufacturer, Class I/UL 508) |
| Current consumption | max. 8 A (with active consumers) |
| Power consumption | 2 W (No-load) |
Digital:
| Input name | Digital inputs |
| Number of Inputs | 2 (Open Collector) |
| Connection Method | Header for PTSM connectors |
Analog:
| Output name | Analog output |
| Connection Method | Header for PTSM connectors |
| Number of Outputs | 1 |
| D/A converter resolution | 8 bit |
| Current Output Signal | -20 mA (Current sink) |
| Permissible cable length | max. 0.5 m |
Digital:
| Output name | Relay output |
| Connection Method | Spring-cage connection |
| Number of Outputs | 2 (AC General Use) |
| Protective circuit | Surge protection |
| Output Voltage | 250 V AC (TRIAC protection of the N/C contact, load-free switching) |
| Output Current | max. 8 A (max. 5 A per relay) |
| Nominal Output Voltage | max. 277 V AC (50 Hz ... 60 Hz) |
Supply
| Connection Method | Spring-cage connection |
| Note on the connection method | Use copper wire, that is approved up to 80 °C. |
| Conductor cross section, rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section, flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 |
| Stripping length | 8 mm |
Input/output
| Connection Method | PTSM connector |
| Note on the connection method | Use copper wire, that is approved up to 80 °C. |
| Conductor cross section, rigid | 0.14 mm² ... 0.5 mm² |
| Conductor cross section, flexible | 0.14 mm² ... 0.5 mm² |
| Conductor cross section AWG | 24 ... 20 |
| Stripping length | 6 mm |
Remote bus
| Transmission Speed | 500 kBaud |
Diagnostic messages
| Diagnostics | Bus error in INTERBUS |
Dimensions
| Width | 110.9 mm |
| Height | 57.9 mm |
| Depth | 39 mm |
Material specifications
| Color | black (RAL 9005) |
| Material | ABS |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 65 °C |
| Degree of Protection | IP20 (touch-proof (per manufacturer's declaration)) |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 hPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Permissible humidity (operation) | 5 % ... 90 % (according to DIN EN 61131-2) |
| Permissible humidity (operation) | 5 % ... 95 % (up to 45°C in accordance with EN 60068-2-78:2013) |
| Permissible humidity (storage/transport) | 5 % ... 90 % (according to DIN EN 61131-2) |
Mounting
| Mounting Type | Mounting in enclosure (control box) |
