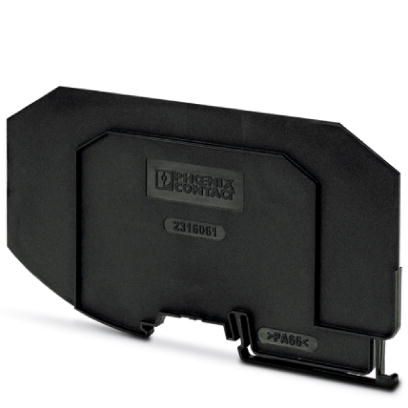

Fieldbus modular coupler partition plate
2316061
Official DistributorSKU
PHX2316061
MPN
FB-MODULAR-PP
Weight
0.021 kg
FB-MODULAR-PP - Partition plate
The FB-MODULAR-PP is a partition plate used between two fieldbus modular device couplers and provides the required 50 mm spacing between an intrinsically safe electrical connection and a non-intrinsically safe electrical connection. The device couplers are 17.5 mm wide, but when adding a partition plate a 22.5 mm TBUS connector is required.
Technical Specifications
Dimensions
| Width | 5 mm |
| Height | 79 mm |
Dimensions
| Depth | 137 mm |
Accessories
FB-2SP - Device coupler for Foundation Fieldbus and PROFIBUS PA expansions with terminal connections for 2 spurs connected to fieldbus end devices
FB-2SP/E - Device coupler for Foundation Fieldbus and PROFIBUS PA with terminal connections for two spurs connected to fieldbus end devices
FB-ISO - Device coupler for Foundation Fieldbus and PROFIBUS PA. Provides intrinsically safe FISCO connection to a single end device.
FB-2SP/24DC - Foundation Fieldbus isolator for Zone 2 installation using the intrinsically safe [ic] protection method.
ME 22,5 TBUS 1,5/ 5-ST-3,81 GN - DIN rail connector, color: green, nominal current: 8 A (parallel contacts), rated voltage (III/2): 125 V, number of positions: 5, product range: TBUS5-22,5.., pitch: 3.81 mm, mounting: DIN rail mounting, locking: without, mounting: without, type of packaging: packed in cardboard, Item with gold-plated contacts, bus connectors for connecting with electronics housings, 5 parallel contacts
Why Proax for Phoenix Contact 2316061?
Proax is an authorized distributor of Phoenix Contact 2316061 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
