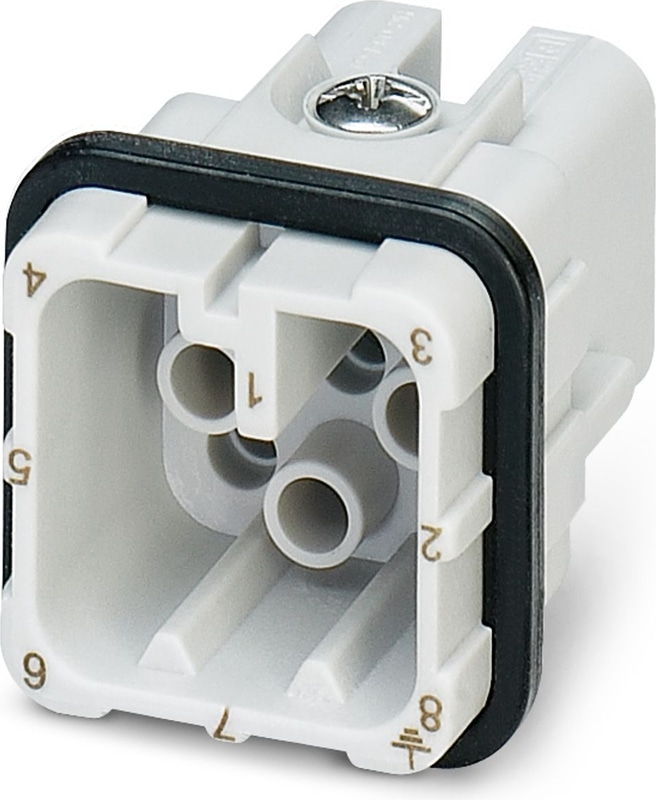

HC-D 8-I-CT-M - Contact insert

Contact insert, number of positions: 8, size: D7, number of connections per position: 1, Pin, Crimp connection, 42 V, 10 A, 0.14 mm2 ... 2.5 mm2

Can be used in rail vehicles, satisfy DIN EN 45545-2 with requirement sets R22, R23, and R24 in hazard levels HL1, HL2, and HL3.

Notes

General	For HC-D7 housing, crimp contacts CK1,6-ED (crimp contacts not included in scope of supply)
General	Connectors may be operated only when there is no load/voltage.
General	Product already includes one IP65 sealing screw

Mounting

Assembly instructions

To ensure correct use, installation in housing with IP54 protection or better is required

Product properties

Series	HC-D
Type	D7
Number of Positions	8
Note number of positions	8
Connection profile	8
Contact numbering	1 - 8
Number of connections per position	1
Contact material type	turned
Contact material type	rolled

Insulation characteristics

Overvoltage category	III
Degree of pollution	3

Dimensions

Width	21 mm
Height	32 mm
Length	21 mm

Mechanical characteristics

Contact diameter

1.6 mm

Connection technology

Connection technology	Crimp connection
Number of connections per position	1
Connection in acc. with standard	IEC / EN

Conductor connection

Conductor Cross Section	0.14 mm² ... 2.5 mm²
Connection cross section AWG	26 ... 14
Tightening torque	0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing)
Stripping length of the individual wire	8 mm (0.14 mm² ... 1.5 mm²)
Stripping length of the individual wire	6 mm (2.5 mm²)

Electrical properties

Rated voltage (III/3)	42 V
Rated surge voltage	0.8 kV
Rated current	10 A
SCCR	5 kA (UL 2237)

Mechanical data

Insertion/withdrawal cycles

≥ 500

Material specifications

Flammability rating according to UL 94	V0
Seal material Profile gasket	NBR, conductive
Contact Material	Copper alloy
Contact surface material	Ag (alternatively Au)
Contact carrier material	PC
Standards/regulations	PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)

Ambient conditions

Ambient Temperature (Operation)

-40 °C ... 125 °C (including heating up of contacts)

Standards and Regulations

Constructional and testing regulations	DIN VDE 0627/86
Constructional and testing regulations	DIN VDE 0110/02.79
Constructional and testing regulations	DIN VDE 0110-1/04.97
Constructional and testing regulations	IEC 60664-1, DIN IEC 60512
Constructional and testing regulations	IEC 60352
Tests	DIN VDE 0627/86
Tests	DIN VDE 0110/02.79
Tests	DIN VDE 0110-1/04.97
Tests	IEC 60664-1, DIN IEC 60512
Tests	IEC 60352

Testing

Standards/regulations

PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)

1645888
CK1,6-ED-BB - Dummy socket for contact carrier with turned CK 1,6-ED.. female contacts
1072069
Contact removal tool - UNIFOX RT-CK 1.6
1212113
CRIMPFOX-TC 4 - Crimping pliers, for CK 1,6-ED..., CK 2,5-ED..., CK 4,0-ED... turned contacts, 4 marked die stations, unlockable pressure lock, lateral entry, incl. positioning tool
1089092
UNIFOX MT-CK 1.6/2.5 - Assembly tool, for CK 1.6... crimp contacts for small conductor cross sections
1686229
HC-D 7-DS-IP65 - Sealing screw, size: Countersunk head, IP67, replacement part for D7 size HEAVYCON housing
1663336
CK1,6-ED-0,37ST AG - Crimp contact, contact diameter: 1.6 mm, turned, Pin, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 0.14 mm2 ... 0.37 mm2, AWG 26 ... 22
1663349
CK1,6-ED-0,50ST AG - Crimp contact, contact diameter: 1.6 mm, turned, Pin, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 0.5 mm2 ... 0.5 mm2, AWG 20
1663352
CK1,6-ED-0,75ST AG - Crimp contact, contact diameter: 1.6 mm, turned, Pin, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 0.75 mm2 ... 0.75 mm2, AWG 18
1663365
CK1,6-ED-1,00ST AG - Crimp contact, contact diameter: 1.6 mm, turned, Pin, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 1 mm2 ... 1 mm2, AWG 18
1663378
CK1,6-ED-1,50ST AG - Crimp contact, contact diameter: 1.6 mm, turned, Pin, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 1.5 mm2 ... 1.5 mm2, AWG 16
1663381
CK1,6-ED-2,50ST AG - Crimp contact, contact diameter: 1.6 mm, turned, Pin, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 2.5 mm2 ... 2.5 mm2, AWG 14
1674901
CK1,6-ED-0,37ST AU - Crimp contact, contact diameter: 1.6 mm, turned, Pin, contact material: Copper alloy, contact surface: gold-plated, connection cross section: 0.14 mm2 ... 0.37 mm2, AWG 22 ... 24
1672453
Crimp contact, contact diameter: 1.6 mm, turned, Pin, contact material: Copper alloy, contact surface: gold-plated, connection cross section: 0.5 mm2 ... 0.5 mm2, AWG 20
1674914
CK1,6-ED-0,75ST AU - Crimp contact, contact diameter: 1.6 mm, turned, Pin, contact material: Copper alloy, contact surface: gold-plated, connection cross section: 0.75 mm2 ... 0.75 mm2, AWG 18
1674888
Crimp contact, contact diameter: 1.6 mm, turned, Pin, contact material: Copper alloy, contact surface: gold-plated, connection cross section: 1 mm2 ... 1 mm2, AWG 18
1674875
CK1,6-ED-1,50ST AU - Crimp contact, contact diameter: 1.6 mm, turned, Pin, contact material: Copper alloy, contact surface: gold-plated, connection cross section: 1.5 mm2 ... 1.5 mm2, AWG 16
1674927
CK1,6-ED-2,50ST AU - Crimp contact, contact diameter: 1.6 mm, turned, Pin, contact material: Copper alloy, contact surface: gold-plated, connection cross section: 2.5 mm2 ... 2.5 mm2, AWG 14
1004360
CK1,6-ER-1,00ST OIC AG - Crimp contact, contact diameter: 1.6 mm, rolled, Pin, contact material: Cu alloy, nickel-plated, contact surface: silver-plated, connection cross section: 0.34 mm2 ... 1 mm2, AWG 22 ... 17
1004365
CK1,6-ER-2,50ST OIC AG - Crimp contact, contact diameter: 1.6 mm, rolled, Pin, contact material: Cu alloy, nickel-plated, contact surface: silver-plated, connection cross section: 1.5 mm2 ... 2.5 mm2, AWG 16 ... 14
1004380
CK1,6-BR-1,00ST OIC AG - Crimp contact, contact diameter: 1.6 mm, rolled, Pin, contact material: Cu alloy, nickel-plated, contact surface: silver-plated, connection cross section: 0.34 mm2 ... 1 mm2, AWG 22 ... 17, Taped products
1004382
Crimp contact, contact diameter: 1.6 mm, rolled, Pin, contact material: Cu alloy, nickel-plated, contact surface: silver-plated, connection cross section: 1.5 mm2 ... 2.5 mm2, AWG 16 ... 14, Taped products
