Phoenix Contact 1415338
AllConnectorsCircular connectors

1415338

Official Distributor

By Phoenix Contact

SKU
PHX1415338
MPN
SACC-DSI-M12FSL-4FE-M16XL-L180
Weight
0.018 kg
Series SACC-DSI-M

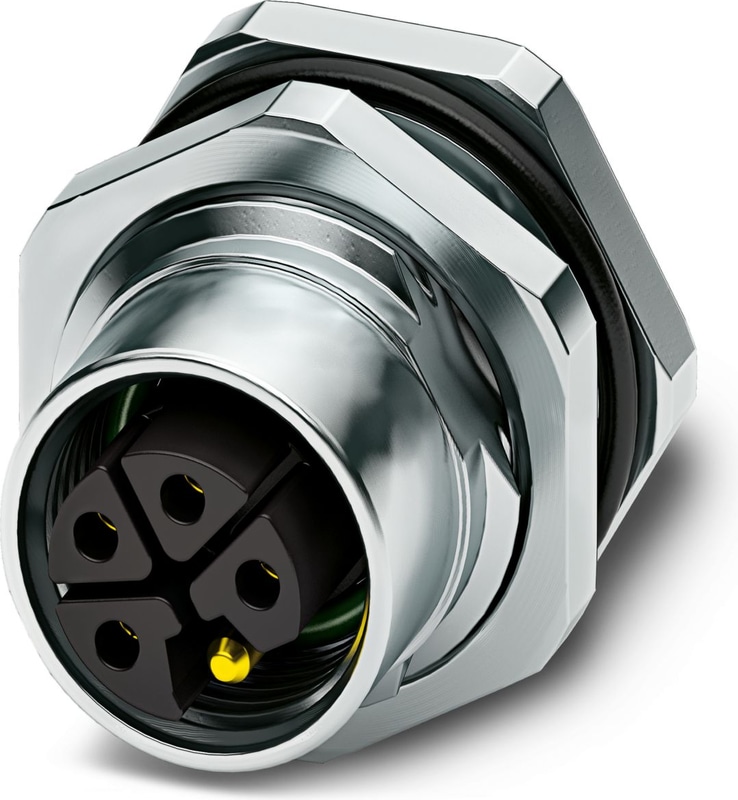

SACC-DSI-M12FSL-4FE-M16XL-L180 - Device connector rear mounting

Device connector rear mounting, Power, 5-position, Socket, straight, M12, coding: L, Rear mounting, M16 x 1.5, Wave soldering, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239091

  • Easy PCB assembly: one-piece connectors for wave soldering
  • For compact devices: transmit high power in a confined space
  • Easy-to-install, optimized XL housing contour with wrench size 19
  • Mechanical tightening limitation for long-term-stable gasket
Technical Specifications

Notes

Notes on operationThe electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Notes on operationFE not connected to metal parts that can be touched, no protective function
Order information:Lock nut is included in the scope of delivery

Mounting

Mounting TypeRear mounting M16 x 1.5 With flat nut
Assembly instructionsWith flat nut

Product properties

Sensor TypePower
Number of Positions5
CodingL
Thread typeM12

Insulation characteristics

Overvoltage categoryIII
Degree of pollution3

Material specifications

Flammability rating according to UL 94V0
Seal materialFKM
Contact MaterialCuZn
Contact surface materialAu
Contact carrier materialPA
Material for screw connectionZinc die-cast, nickel-plated

Electrical properties

Rated voltage in acc. with IEC 61076-2-101630 V
Rated surge voltage1.5 kV
Nominal voltage UN63 V DC
Nominal current IN16 A

Conductor connection

Connection MethodWave soldering
Contact connection typeSocket

Mechanical data

Insertion/withdrawal cycles> 100

Connection 1

Head designSocket
Head cable outletstraight
Head thread typeM12
CodingL

Cable/line

Signal type/categoryPower

Ambient conditions

Degree of ProtectionIP67
Degree of ProtectionIP65/IP67
Ambient Temperature (Operation)-25 °C ... 85 °C (Plug / socket)
Ambient Temperature (Operation)-40 °C ... 85 °C (without mechanical actuation)

M12

Standard designationM12 connector
Standards/specificationsIEC 61076-2-111
NoteIn line with
