1424071
Official DistributorSKU
PHX1424071
MPN
SACC-DSI-M12FSD-4CON-L180 VA
Weight
0.015 kg
Series SACC-DSI-M

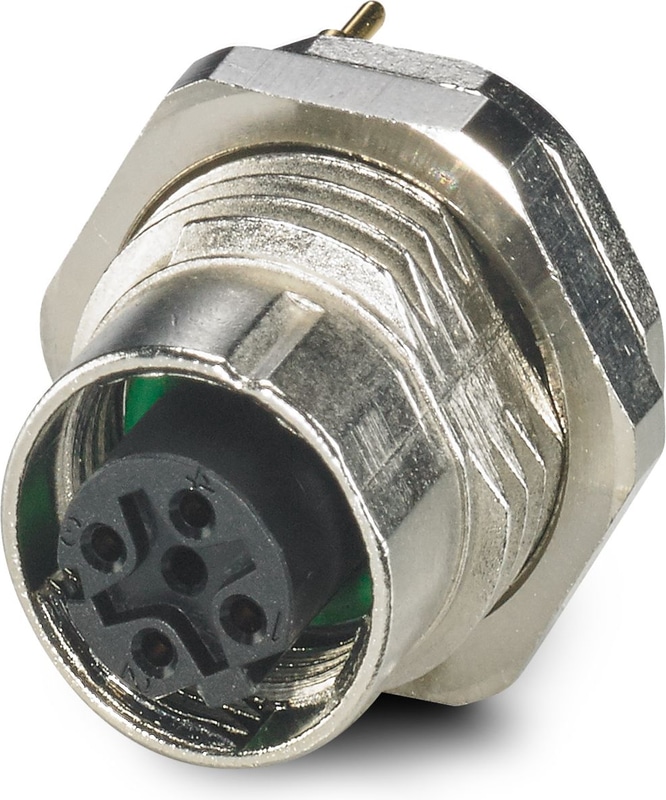

SACC-DSI-M12FSD-4CON-L180 VA - Device connector rear mounting
Device connector rear mounting, Ethernet, 4-position, Socket, straight, coding: D, Rear mounting, Pg9, Solder pins, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239435
- Easy PCB assembly: one-piece connectors for wave soldering
- All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
Technical Specifications
Notes
| General | This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 8.2 Connectors for Outside Environment (Balanced cabling) |
| Notes on operation | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
| Order information: | Lock nut is included in the scope of delivery |
Mounting
| Mounting Type | Rear mounting Pg9 With locking nut |
| Assembly instructions | With locking nut |
Product properties
| Sensor Type | Ethernet |
| Number of Positions | 4 |
| Shielded | no |
| Coding | D |
| Thread type | M12 |
Insulation characteristics
| Overvoltage category | II |
| Degree of pollution | 3 |
Dimensions
| Length of the solder pin | 6 mm |
| Length of the solder pin | 6 mm |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Seal material | FKM |
| Contact Material | CuZn |
| Contact surface material | Ni/Au |
| Contact carrier material | PA 6.6 |
| Material for screw connection | Stainless steel |
Electrical properties
| Contact resistance | ≤ 3 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 250 V |
| Nominal current IN | 4 A |
Conductor connection
| Connection Method | Solder pins |
| Contact connection type | Socket |
Mechanical data
| Insertion/withdrawal cycles | > 100 |
Connection 1
| Head design | Socket |
| Head cable outlet | straight |
| Coding | D |
Cable/line
| Signal type/category | Ethernet |
Ambient conditions
| Degree of Protection | IP65/IP67/IP69/IP69K |
| Degree of Protection | IP65/IP67/IP69K |
| Ambient Temperature (Operation) | -25 °C ... 85 °C |
| Ambient Temperature (Operation) | -40 °C ... 85 °C (without mechanical actuation) |
M12
| Standard designation | M12 connector |
| Standards/specifications | IEC 61076-2-101 |
Accessories
PROT-M12 SH - An M12 screw plug for the unoccupied M12 sockets of the shielded sensor/actuator cable, boxes and flush-type connectors
PROT-M12 FB - M12 high-grade steel screw plug, for unoccupied M12 sockets of the sensor/actuator cables, boxes and flush-type connectors for the food industry
Why Proax for Phoenix Contact 1424071?
Proax is an authorized distributor of Phoenix Contact 1424071 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 20 |
