1420501
Official DistributorSKU
PHX1420501
MPN
SACC-DSI-M12FST-4CON-M16/1,5
Weight
0.113 kg
This product is Not Cancellable/Not Returnable
Series SACC-DSI-M

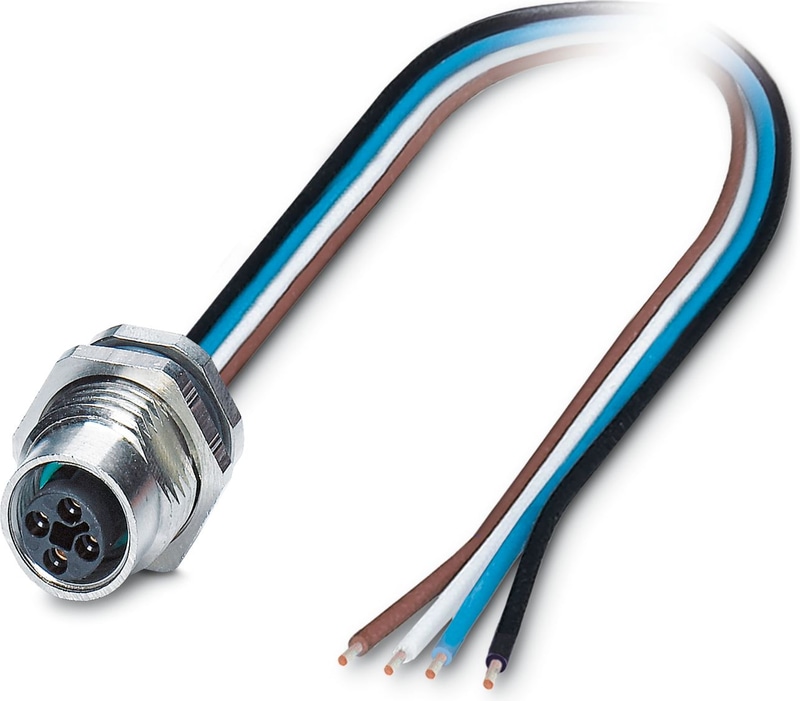

SACC-DSI-M12FST-4CON-M16/1,5 - Device connector rear mounting
Device connector rear mounting, Power, 4-position, Socket, straight, M12-Standard, coding: T, on free cable end, Rear mounting, M16 x 1.5, Individual wires, cable length: 1.5 m, 1.31 mm2, UL/cUL stranded hook-up wire, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239312
- For compact devices: transmit high power in a confined space
- Preassembled with litz wires for immediate use
- Customer-specific assemblies and litz wire lengths available
- Sealed on the litz wire side for optimum leak-tightness
- For high transmission safety: shield connection to the housing with optional EMC nut
Technical Specifications
Notes
| Notes on operation | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
| Order information: | Lock nut is included in the scope of delivery |
| General | Contact connection method: Crimp connection |
Mounting
| Mounting Type | Rear mounting M16 x 1.5 With flat nut |
| Assembly instructions | With flat nut |
Product properties
| Sensor Type | Power |
| Number of Positions | 4 |
| No. of cable outlets | 1 |
| Shielded | no |
| Coding | T |
| Thread type | M12 |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Seal material | FKM |
| Contact Material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PA |
| Material for screw connection | Zinc die-cast, nickel-plated |
| Conductor material | Bare Cu litz wires |
Electrical properties
| Rated surge voltage | 1.5 kV |
| Rated surge voltage | 1.5 kV AC/DC |
| Contact resistance | ≤ 3 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 63 V DC |
| Nominal current IN | 12 A |
| Test voltage | 1.5 kV |
Conductor connection
| Connection Method | Individual wires |
| Contact connection type | Socket |
| Conductor Cross Section | 1.31 mm² |
| Tightening torque | M12 connector |
Mechanical data
| Insertion/withdrawal cycles | > 100 |
Connection 1
| Head design | Socket |
| Head cable outlet | straight |
| Head thread type | M12 |
| Head locking type | Standard |
| Coding | T |
Connection 2
| Head design | free cable end |
Cable/line
| Cable Length | 1.5 m |
| Cable Type | UL/cUL stranded hook-up wire |
| Signal type/category | Power |
| Wire diameter incl. insulation | 2 mm |
| Single wire, color | black, brown, blue, white |
| Cable cross section | 1.31 mm² |
| Conductor material | Bare Cu litz wires |
| AWG Signal Line | 16 |
| Material wire insulation | mPPE |
| Halogen-free | yes |
| Flame resistance | in acc. to UL 1581 VW1 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C (without mechanical actuation) |
| Ambient Temperature (Operation) | -40 °C ... 85 °C (without mechanical actuation) |
| Ambient Temperature (Operation) | -25 °C ... 105 °C (Cable, flexible installation) |
Ambient conditions
| Degree of Protection | IP67 |
| Degree of Protection | IP65/IP67 |
| Ambient Temperature (Operation) | -25 °C ... 85 °C (Plug / socket) |
| Ambient Temperature (Operation) | -40 °C ... 85 °C (without mechanical actuation) |
| Ambient Temperature (Operation) | -25 °C ... 105 °C (Cable, flexible installation) |
| Ambient Temperature (Operation) | -40 °C ... 105 °C (cable, fixed installation) |
Standards and Regulations
| Flame resistance | in acc. to UL 1581 VW1 |
M12
| Standard designation | M12 connector |
| Standards/specifications | IEC 61076-2-111 |
| Note | In line with |
