Series SAC-5P
Bus system cable - SAC-5P-M12MS/10,0-92X SH OD

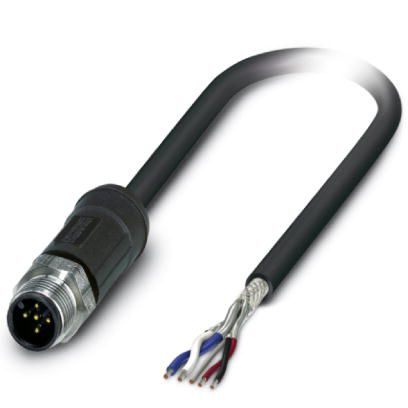

Bus system cable, CANopen®, DeviceNet™, 5-position, FRNC halogen-free, black, shielded, Plug straight M12, coding: A, on free cable end, cable length: 10 m, for outdoor applications, with high-grade steel knurl
- Easy and safe: 100% electrically tested plug-in components
- Robust throughout: resistant to oil, UV, and ozone, withstands temperatures from -40°C … +105°C
- Reliable signal transmission – 360° shielding in environments with electromagnetic interference
Technical Specifications
Dimensions
| Length of Cable | 10 m |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 105 °C (Plug / socket) |
| Ambient Temperature (Operation) | -40 °C ... 85 °C (On sudden changes in temperature (according to IEC 60512-11-4)) |
| Ambient Temperature (Operation) | -40 °C ... 105 °C (Plug / socket) |
| Degree of Protection | IP65 |
| Degree of Protection | IP67 |
| Degree of Protection | IP68 |
| Degree of Protection | IP69K |
General
| Rated current at 40°C | 4 A |
| Rated voltage | 48 V AC |
| Rated voltage | 60 V DC |
| Number of Positions | 5 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A - standard |
| Standards/regulations | M12 connector IEC 61076-2-101 |
| Signal type/category | CANopen® |
| Signal type/category | DeviceNet™ |
| Status display | No |
| Protective circuit/component | unwired |
| Degree of pollution | 3 |
| Insertion/withdrawal cycles | ≥ 100 |
| Torque | 0.4 Nm (M12 connector) |
Material
| Flammability rating according to UL 94 | V0 |
| Contact Material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | PP |
| Material of grip body | PP |
| Material, knurls | Stainless steel |
Pin assignment
| Contact | Color (signal designation) | Contact (optional) | 1 (Plug) = SR (shield) |
| Contact | Color (signal designation) | Contact (optional) | 2 (Plug) = RD (V+) |
| Contact | Color (signal designation) | Contact (optional) | 3 (Plug) = BK (V-) |
| Contact | Color (signal designation) | Contact (optional) | 4 (Plug) = WH (CAN_H) |
| Contact | Color (signal designation) | Contact (optional) | 5 (Plug) = BU (CAN_L) |
Standards and Regulations
| Standards/specifications | M12 connector IEC 61076-2-101 |
Cable
| Cable Type | CANopen®/DeviceNet™ outdoor installation, FRNC, black |
| Cable type (abbreviation) | 92X |
| Cable abbreviation | LI2XCHX02XS |
| UL AWM style | 21281 (80°C/300 V) |
| Cable structure | 2xAWG24/19+2xAWG22/19 |
| Conductor Cross Section | 2x 0.25 mm² (Signal) |
| Conductor Cross Section | 2x 0.34 mm² (Power) |
| Conductor Cross Section | 1x 0.38 mm² (Drain wire) |
| AWG Signal Line | 24 |
| AWG Power Supply | 22 |
| Conductor structure signal line | 19x 0.13 mm |
| Conductor structure, voltage supply | 19x 0.16 mm |
| Core diameter including insulation | 1.9 mm (Signal) |
| Core diameter including insulation | 1.4 mm (Power) |
| Thickness, insulation | 0.6 mm (Signal) |
| Thickness, insulation | 0.3 mm (Power) |
| Wire colors | Red-black, blue-white |
| Twisted pairs | 2 cores to the pair |
| Type of pair shielding | Aluminum-lined foil |
| Overall twist | 2 pairs around a drain wire in the center to the core |
| Shielding | Tinned copper braided shield |
| Optical shield covering | 70 % |
| Outer sheath thickness | 1.15 mm |
| External cable diameter D | 6.9 mm ±0.3 mm |
| Minimum bending radius, fixed installation | 5 x D |
| Minimum bending radius, flexible installation | 10 x D |
| Cable weight | 70 kg/km |
| External sheath, color | black |
| Outer sheath, material | FRNC |
| Material conductor insulation | PE |
| Conductor material | Tin-plated Cu litz wires |
| Insulation resistance | ≥ 200 MΩ*km (at 20 °C) |
| Conductor resistance | 90 Ω/km (Signal) |
| Conductor resistance | 55 Ω/km (Power) |
| Working capacitance | 39.8 nF (at 1 kHz, core/core) |
| Wave impedance | 120 Ω ±12 Ω (f = 1 MHz) |
| Signal runtime | 4.46 ns/m |
| Nominal voltage, cable | ≤ 300 V |
| Test voltage Core/Core | 2000 V (50 Hz, 1 min.) |
| Test voltage Core/Shield | 2000 V (50 Hz, 1 min.) |
| Other resistance | UV resistant |
| Flame resistance | According to IEC 60332-3-25 (Cat. D) |
| Halogen-free | yes |
| Resistance to Oil | yes |
| Ambient Temperature (Operation) | -40 °C ... 105 °C |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Accessories
1208429 - Torque screwdriver, with preset torque of 0.4 Nm and 4 mm hexagonal drive for M12 connectors
1212224 - Torque screw driver, accuracy as per EN ISO 6789 standard, adjustable from 0.3 ‑ 1.2 Nm
1212600 - Adapter bit for TSD-M...torque tools, E6.3-1/4" drive with 4 mm hexagon to accommodate SAC bits
1212513 - Nut for assembling sensor/actuator cables with M12 connector and M12 connectors for assembly, with a hexagonal knurl wrench size of 14 mm, with 4 mm hexagonal drive
