1151618
Official DistributorSKU
PHX1151618
MPN
ELR H51-IES-24DC500AC-3-IFS
Weight
0.49 kg
Series ELR-H

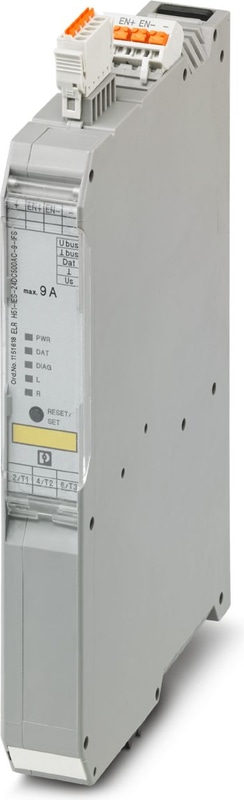

ELR H51-IES-24DC500AC-3-IFS - Hybrid motor starter
Hybrid motor starter; functions: start motor, reverse motor, motor protection, emergency stop, network capable, short-circuit protection; input: 24 V DC; output: 3~, 500 V AC, 3 A; connection method: screw and Push-in connection; connection to the Interface system
Technical Specifications
Product properties
| Product family | CONTACTRON |
| Operating mode | 100% operating factor |
Insulation characteristics: Standards/regulations
| Pollution degree | 2 |
Electrical properties
| Number of phases | 3 |
| Motor starter type | Reversing starter |
| Maximum power dissipation for nominal condition | 2.5 W |
| Switching frequency | ≤ 2 Hz (Load-dependent) |
| Maximum power dissipation | 4.1 W |
| Minimum power dissipation | 0.88 W |
| Coordination type | 1 |
Supply
| Rated control circuit supply voltage US | 24 V DC |
| Control supply voltage range | 19.2 V DC ... 30 V DC |
| Rated control supply current IS | 60 mA |
| Protective circuit | Surge protection |
| Protective circuit | Reverse polarity protection; Parallel polarity protection diode |
Insulation characteristics
| Rated Insulation Voltage | 550 V |
| Rated surge voltage | 6 kV |
| Overvoltage category | III |
| Degree of pollution | 2 |
| Insulation characteristics between control input voltage and control supply voltage to main circuit | Safe isolation (IEC 60947-1) |
Emergency tripping
| Operate threshold | > 33 A |
| Response time | < 0.5 s |
Control
| Input name | Enable input |
| Note | The enable input is compatible with signals with blanking (semiconductor output signals with test pulse with max. 3 ms duration),unblanking pulses of max. 4 ms are tolerated without adversely affecting the safety function. |
| Rated actuating voltage UC | 24 V DC |
| Triggering voltage range | 19.2 V DC ... 30 V DC |
| Rated actuating current IC | 7 mA |
| Switching threshold | 9.6 V (“0” signal) |
| Switching threshold | 19.2 V (“1” signal) |
| Switching level | < 5 V DC (For EMERGENCY STOP) |
| Typical turn-off time | < 30 ms |
| Protective circuit | Reverse polarity protection |
AC output
| Rated operating voltage Ue | 500 V AC |
| Operating voltage range | 42 V AC ... 550 V AC |
| Rated operating current Ie | 3 A (AC-51) |
| Rated operating current Ie | 3 A (AC-53a) |
| Mains frequency | 50/60 Hz |
| Load current range | 180 mA ... 3 A (see to derating) |
| Trigger characteristic in acc. with IEC 60947-4-2 | Class 10 |
| Cooling time | 20 min. (for auto reset) |
| Leakage current | 0 mA |
| Protective circuit | Surge protection; Varistor |
Control circuits
| Connection Method | Push-in connection |
| Stripping length | 10 mm |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 14 |
Load circuit
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 14 |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| Tightening torque | 5 lbf-in. ... 7 lbf-in. |
Signaling
| Status display | Yellow LED |
| Operating voltage display | Green LED |
| Error indication | Red LED |
Dimensions
| Width | 22.5 mm |
| Height | 160 mm |
| Depth | 114.5 mm |
Material specifications
| Flammability rating according to UL 94 | V0 (Housing) |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -5 °C ... 60 °C (observe derating) |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | ≤ 2000 m |
UKCA
| Certificate | UKCA-compliant |
Category (ISO 13849)
| Identification | ≤ 3 |
| Note | Safe shutdown |
UL approval
| Certificate | NLDX.E228652 |
| Certificate | NRNT.E172140 |
Safety Integrity Level (SIL, IEC 61508)
| Identification | ≤ 3 |
| Note | Safe shutdown |
Performance Level (ISO 13849)
| Identification | e |
| Note | Safe shutdown |
UL data
| SCCR | 100 kA (480 V AC (fuse: 30 A class CC/30 A class J (high fault))) |
| SCCR | 5 kA (480 V AC (fuse: 20 A RK5 (standard fault))) |
| FLA | 3 A (480 V AC) |
| Group installation | 20 A (class RK5, SCCR 5kA (480 V AC), #24 - 14 AWG max. solid and stranded) |
| Group installation | 30 A (class CC or J, SCCR 100kA (480 V AC), #24 - 14 AWG max, solid and stranded) |
| Category code | NLDX / NRNT |
| Horsepower ratings | 0.5 hp (120 V AC / 208 V AC) |
| Horsepower ratings | 1.5 hp (277 V AC / 480 V AC) |
Standards/regulations
| Standards/regulations | IEC 60947-1 |
| Standards/regulations | EN 60947-4-2 |
| Standards/regulations | IEC 61508 |
| Standards/regulations | ISO 13849-1 |
Mounting
| Assembly instructions | alignable, for spacing see derating |
| Mounting Position | vertical (horizontal DIN rail, motor output below) |
Accessories
EM-CPS-225 - Modular power distribution board with CrossLink® interface, 125 A, 3-pos., touch-proof and protection against polarity reversal, width: 225 mm
EM-CPS-405 - Modular power distribution board with CrossLink® interface, 125 A, 3-pos., touch-proof and protection against polarity reversal, width: 405 mm
EM-CPS-TB3/63A - Connection module with integrated spring-loaded terminals for cables from 1.5 to 16 mm2, 3-pos., maximum 63 A
EM-CPS-TB3/125A - Connection module with box terminals for conductors from 6 to 50 mm2, 3-pos., maximum 125 A
MC 1,5/ 5-ST-3,81 - PCB connector, nominal cross section: 1.5 mm2, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Tin, contact connection type: Socket, number of potentials: 5, number of rows: 1, number of positions: 5, number of connections: 5, product range: MC 1,5/..-ST, pitch: 3.81 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 °, plug-in system: COMBICON MC 1,5, locking: without, mounting: without, type of packaging: packed in cardboard
EM-PB-GATEWAY-IFS - Gateway for the connection of up to 32 INTERFACE system devices to a higher-level controller via PROFIBUS DP. The INTERFACE system devices are connected to the Gateway via DIN rail connectors, the DIN rail connectors are provided.
EM-ETH-GATEWAY-IFS - Gateway for the connection of up to 32 INTERFACE system devices to a higher-level controller via EtherNet/IP™. The INTERFACE system devices are connected to the Gateway via DIN rail connectors, the DIN rail connectors are provided.
EM-PNET-GATEWAY-IFS - Gateway for the connection of up to 32 INTERFACE system devices via PROFINET to a higher-level controller. The INTERFACE system devices are connected to the Gateway via DIN rail connectors, the DIN rail connectors are provided.
EM-CAN-GATEWAY-IFS - Gateway for the connection of up to 32 INTERFACE system devices to a higher-level controller via CANopen®. The INTERFACE system devices are connected to the Gateway via DIN rail connectors, the DIN rail connectors are provided.
EM-MODBUS-GATEWAY-IFS - Gateway for the connection of up to 32 INTERFACE system devices via Modbus/TCP to a higher-level controller. The INTERFACE system devices are connected to the Gateway via DIN rail connectors, the DIN rail connectors are provided.
FUSE-10X38-30A-MR - Fuse, number: 10 Pcs., fuse type: Fuse (CC), nominal current: 30 A, tripping characteristic: fast-blow (F)
FUSE-10X38-20A-GR - Fuse, number: 10 Pcs., fuse type: Fuse (CC), nominal current: 20 A, tripping characteristic: super-fast blow (gR)
FUSE-10X38-16A-GR - Fuse, number: 10 Pcs., fuse type: Fuse (CC), nominal current: 16 A, tripping characteristic: super-fast blow (gR)
EM RD-ADAPTER - Adapter for mounting short circuit-proof hybrid motor starters of type ELR-H51 ... on 35 mm DIN rails.
EM RI-ADAPTER COMPACT - Adapter for mounting short circuit-proof hybrid motor starters of type ELR-H51 ... on 60 mm power busbars. Compact design with 160 mm design height.
EM RI-ADAPTER CLASSIC - Adapter for mounting short-circuit proof hybrid motor starters of type ELR-H51 ... on 60 mm power busbars. Classic design with 200 mm design height.
