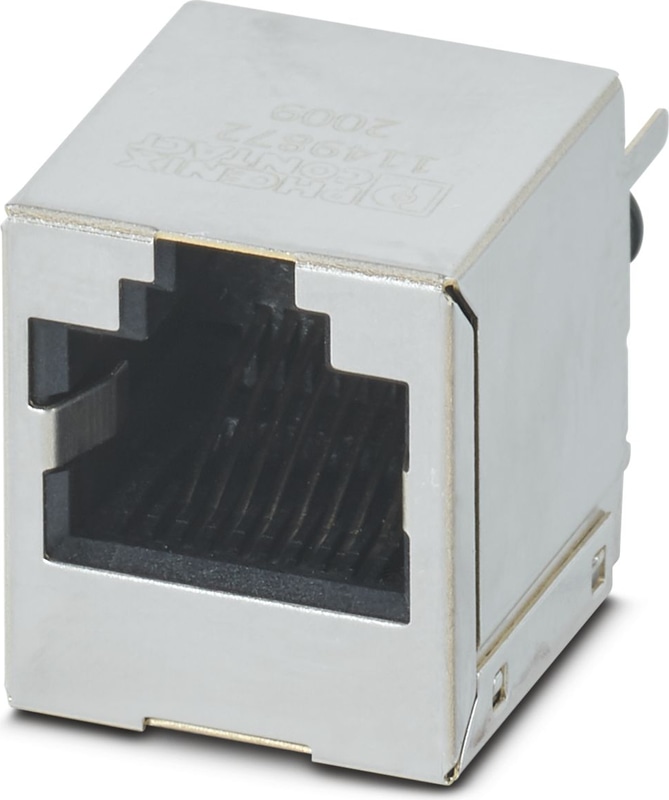

CUC-SP-J1ST-S/R4LT - RJ45 PCB connectors
RJ45 PCB connectors, degree of protection: IP20, number of positions: 8, 10 Gbps, material: Metal, connection method: THT wave
- The right version for every application. Available with and without LED, single- and multi-port
- The extended temperature range from -40 °C to +85 °C enables use in demanding applications
- Through-hole technology (THT) provides high mechanical stability when connecting the female connector to the PCB
Technical Specifications
Product properties
| Type | RJ45 |
| Number of Positions | 8 |
| Connection profile | RJ45 |
| Type of packaging | Tray |
| Housing shield springs | No |
| Number of slots | 1 |
| Type | Socket |
| Shielded | yes |
Insulation characteristics
| Overvoltage category | I |
| Degree of pollution | 2 |
Electrical properties
| Rated voltage (III/2) | 72 V DC |
| Rated surge voltage | 1.5 kV DC |
| Rated surge voltage (III/3) | 1.5 kV |
| Rated surge voltage | 1 kV DC |
| Rated current | 1.5 A |
| Frequency Range | 10 Hz ... 500 Hz |
| Insulation resistance | > 500 MΩ |
| Test voltage | 1 kV DC |
| Test voltage Core/Core | 1 kV DC |
| Test voltage Core/Shield | 1.50 kV DC |
| Transmission medium | Copper |
| Transmission Speed | 10 Gbps |
| Power transmission | PoE++ |
Connection technology
| Connection Method | THT wave |
Dimensions
| Width | 16.15 mm |
| Height | 16.7 mm |
| Length | 16.5 mm |
| Installed height | 16.50 mm |
| Orientation to | 180.00 ° |
| Data pin length | 3.25 mm |
Material specifications
| Material | Au (0.152 µm/6 µ") |
| Material | Ni (1,27 µm/50 µ") |
| Material | Ni (1.27 µm / 50 µ") |
| Material | Copper alloy |
| Flammability rating according to UL 94 | V0 |
| Housing Material | Metal |
| Housing surface material | Nickel |
| Contact Material | Phosphor bronze |
| Contact surface material | Gold |
| Contact carrier material | PA 9T GF |
Cable/line
| Test voltage Core/Core | 1 kV DC |
| Test voltage Core/Shield | 1.50 kV DC |
| Halogen-free | no |
| Flame resistance | UL 94 V0 |
Mechanical data
| Insertion/withdrawal cycles | > 750 |
| Insertion force per signal contact | < 20.00 N |
| Extraction force per signal contact | < 20 N |
Test specification
| Frequency | 10-500 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.35 mm |
| Acceleration | 50.00 m/s² |
| Test duration | 20.00 s |
| Specification | IEC60068-2-27 |
| Acceleration | 295.00 m/s² |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Standards and Regulations
| Flame resistance | UL 94 V0 |
Mounting
| Mounting Type | Wave soldering |
Processing notes
| Classification temperature Tc | 260 °C |
