1149611
Official DistributorSKU
PHX1149611
MPN
CUC-SP-J1ST-S/R4LT-SMD
Weight
0.006 kg
Series CUC-SP-J1ST

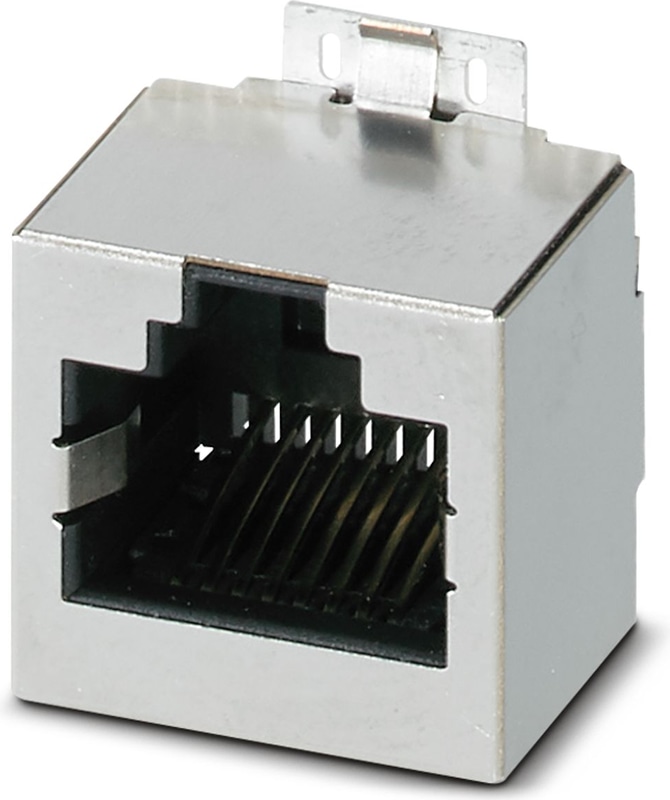

CUC-SP-J1ST-S/R4LT-SMD - RJ45 PCB connectors
RJ45 PCB connectors, design: RJ45, degree of protection: IP20, number of positions: 8, 10 Gbps, material: Metal, connection method: SMD reflow
- The reflow capability enables efficient, cost-optimized processing
- The extended temperature range from -40 °C to +85 °C enables use in demanding applications
Technical Specifications
Product properties
| Type | RJ45 |
| Number of Positions | 8 |
| Connection profile | RJ45 |
| Type of packaging | Tape and Reel |
| [W] tape width | 44.00 mm |
| [A] coil diameter | 330.00 mm |
| [W2] coil overall dimension | 49.00 mm |
| Housing shield springs | No |
| Number of slots | 1 |
| Type | Socket |
| Shielded | yes |
Insulation characteristics
| Overvoltage category | I |
| Degree of pollution | 2 |
Electrical properties
| Rated voltage (III/2) | 72 V DC |
| Rated surge voltage | 1.5 kV DC |
| Rated surge voltage (III/3) | 1.5 kV |
| Rated surge voltage | 1 kV DC |
| Rated current | 1.5 A |
| Frequency Range | 10 Hz ... 500 Hz |
| Insulation resistance | > 500 MΩ |
| Test voltage | 1 kV DC |
| Test voltage Core/Core | 1 kV DC |
| Test voltage Core/Shield | 1.50 kV DC |
| Transmission medium | Copper |
| Transmission Speed | 10 Gbps |
| Power transmission | PoE++ |
Connection technology
| Connection Method | SMD reflow |
Dimensions
| Width | 16.1 mm |
| Height | 14.5 mm |
| Length | 13.5 mm |
| Installed height | 13.20 mm |
| Orientation to | 180.00 ° |
Material specifications
| Material | Ni (1,27 µm/50 µ") |
| Material | Copper alloy |
| Flammability rating according to UL 94 | V0 |
| Housing Material | Metal |
| Housing surface material | Nickel |
| Contact Material | Phosphor bronze |
| Contact surface material | Gold |
| Contact carrier material | PA 9T GF |
Cable/line
| Test voltage Core/Core | 1 kV DC |
| Test voltage Core/Shield | 1.50 kV DC |
| Halogen-free | no |
| Flame resistance | UL 94 V0 |
Mechanical data
| Insertion/withdrawal cycles | > 750 |
| Insertion force per signal contact | < 20.00 N |
| Extraction force per signal contact | < 20 N |
Test specification
| Frequency | 10-500 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.35 mm |
| Acceleration | 50.00 m/s² |
| Test duration | 20.00 s |
| Specification | IEC60068-2-27 |
| Acceleration | 295.00 m/s² |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Standards and Regulations
| Flame resistance | UL 94 V0 |
Mounting
| Mounting Type | SMD soldering |
Processing notes
| Moisture Sensitive Level | MSL 1 |
| Classification temperature Tc | 260 °C |
| Solder cycles in the reflow | 3 |
Why Proax for Phoenix Contact 1149611?
Proax is an authorized distributor of Phoenix Contact 1149611 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 180 |
