Official DistributorSKU
MPN
CUC-SP-J1ST-S/R4LT-LED
Weight
0.008 kg
Series CUC-SP-J1ST

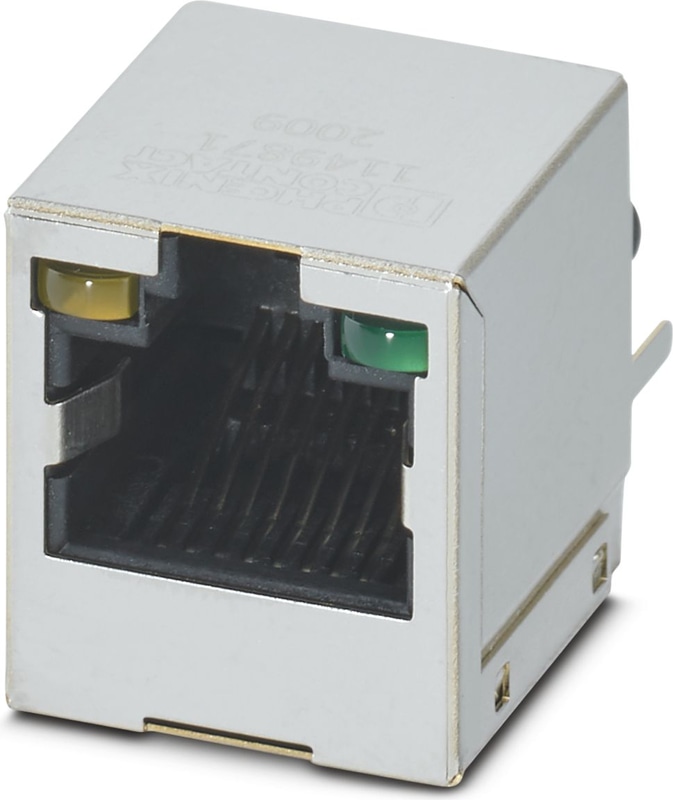

CUC-SP-J1ST-S/R4LT-LED - RJ45 PCB connectors
RJ45 PCB connectors, degree of protection: IP20, number of positions: 8, 10 Gbps, material: Metal, connection method: THT wave
- The right version for every application. Available with and without LED, single- and multi-port
- The extended temperature range from -40 °C to +85 °C enables use in demanding applications
- Through-hole technology (THT) provides high mechanical stability when connecting the female connector to the PCB
Technical Specifications
Product properties
| Type | RJ45 |
| Number of Positions | 8 |
| Connection profile | RJ45 |
| Type of packaging | Tray |
| Housing shield springs | No |
| Number of slots | 1 |
| Type | Socket |
| Shielded | yes |
| LED | yes |
Insulation characteristics
| Overvoltage category | I |
| Degree of pollution | 2 |
Electrical properties
| Rated voltage (III/2) | 72 V DC |
| Rated surge voltage | 1.5 kV DC |
| Rated surge voltage (III/3) | 1.5 kV |
| Rated surge voltage | 1 kV DC |
| Rated current | 1.5 A |
| Frequency Range | 10 Hz ... 500 Hz |
| Insulation resistance | > 500 MΩ |
| Test voltage | 1 kV DC |
| Test voltage Core/Core | 1 kV DC |
| Test voltage Core/Shield | 1.50 kV DC |
| Transmission medium | Copper |
| Transmission Speed | 10 Gbps |
| Power transmission | PoE++ |
Connection technology
| Connection Method | THT wave |
Dimensions
| Width | 16.15 mm |
| Height | 16.7 mm |
| Length | 16.5 mm |
| Installed height | 16.70 mm |
| Orientation to | 180.00 ° |
| Data pin length | 3.25 mm |
Material specifications
| Material | Au (0.152 µm/6 µ") |
| Material | Ni (1,27 µm/50 µ") |
| Material | Ni (1.27 µm / 50 µ") |
| Material | Copper alloy |
| Flammability rating according to UL 94 | V0 |
| Housing Material | Metal |
| Housing surface material | Nickel |
| Contact Material | Phosphor bronze |
| Contact surface material | Gold |
| Contact carrier material | PA 9T GF |
Cable/line
| Test voltage Core/Core | 1 kV DC |
| Test voltage Core/Shield | 1.50 kV DC |
| Halogen-free | no |
| Flame resistance | UL 94 V0 |
Mechanical data
| Insertion/withdrawal cycles | > 750 |
| Insertion force per signal contact | < 20.00 N |
| Extraction force per signal contact | < 20 N |
Test specification
| Frequency | 10-500 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.35 mm |
| Acceleration | 50.00 m/s² |
| Test duration | 20.00 s |
| Specification | IEC60068-2-27 |
| Acceleration | 295.00 m/s² |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Standards and Regulations
| Flame resistance | UL 94 V0 |
Mounting
| Mounting Type | Wave soldering |
Processing notes
| Classification temperature Tc | 260 °C |
Why Proax for Phoenix Contact 1149871?
Proax is an authorized distributor of Phoenix Contact 1149871 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 100 |
