Phoenix Contact 1047463
AllConnectorsTerminal blocksDistributor blocks
Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
MPN
PTFIX 4/18X1,5-NS35 OG
Weight
0.023 kg
Series PTFIX

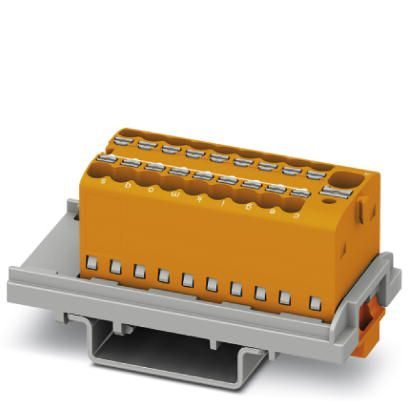

PTFIX 4/18X1,5-NS35 OG - Distribution block

Distribution block, nom. voltage: 500 V, nominal current: 17.5 A, number of connections: 19, connection method: Push-in connection, Load contact, cross section: 0.14 mm2 - 2.5 mm2, Line contact, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 6 mm2, mounting type: NS 35/7,5, NS 35/15, color: orange

  • Convenient test options, thanks to test openings at every terminal point
  • Space-saving potential distribution, thanks to compact micro potential distributors
  • Flexible use, thanks to DIN rail and direct mounting
  • Space-saving, thanks to the compact design
  • Clear arrangement thanks to marking of all terminal points

Documents

PTFIX

The Phoenix Contact PTFIX Series comprises ready-to-use distribution blocks featuring Push-in connection technology, designed to streamline potential distribution in control cabinets and various industrial applications. These blocks facilitate quick, tool-free wiring, enhancing installation efficiency and flexibility. Key Features: Ready-to-Connect Design: PTFIX blocks are pre-assembled and maintenance-free, allowing for immediate deployment without the need for manual bridging. Push-in Connection Technology: This tool-free, direct plug-in method enables the easy insertion of solid and flexible conductors with ferrules, starting from 0.25 mm², reducing installation time. Compact and Space-Saving: The compact design of PTFIX blocks saves space in control cabinets, making them ideal for applications with limited installation areas. Versatile Mounting Options: Various adapters allow for DIN rail, direct, and adhesive mounting, providing flexibility to suit different installation requirements. Color-Coded Variants: Available in up to 11 different colors, PTFIX blocks support intuitive and safe installation by enabling clear potential assignment.
Technical Specifications

General

NoteThe maximum load current of a single clamping unit must not be exceeded.
NoteFor power distribution applications, IEC 60364-4-43.2008; modified + corrigendum Okt. 2008 (DIN VDE 0100-430:2010-10) section 433.2 ff must be observed!

Product properties

Number of Connections19
Number of rows1

Insulation characteristics

Overvoltage categoryIII
Degree of pollution3

Electrical properties

Rated surge voltage6 kV
Maximum power dissipation for nominal condition0.56 W

Connection data

Service Entranceyes
Number of connections per level19
Nominal cross section1.5 mm²
Rated cross section AWG14

Load contact

Stripping length8 mm ... 10 mm
Internal cylindrical gageA3
Connection in acc. with standardIEC 60947-7-1
Conductor cross section rigid0.14 mm² ... 2.5 mm²
Cross section AWG26 ... 14 (converted acc. to IEC)
Conductor cross section flexible0.14 mm² ... 2.5 mm²
Conductor cross section, flexible [AWG]26 ... 14 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)0.14 mm² ... 1.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.14 mm² ... 1.5 mm²
Nominal Current17.5 A
Maximum Load Current22 A (with a 2.5 mm² conductor cross section)
Maximum total current32 A
Nominal Voltage500 V

Line contact

Stripping length10 mm ... 12 mm
Connection in acc. with standardIEC 60998-2-2
Conductor cross section rigid0.2 mm² ... 6 mm²
Cross section AWG24 ... 10 (converted acc. to IEC)
Conductor cross section flexible0.2 mm² ... 6 mm²
Conductor cross section, flexible [AWG]24 ... 10 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)0.2 mm² ... 4 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.2 mm² ... 4 mm²
Nominal Current41 A
Maximum Load Current41 A (with 6 mm² conductor cross section)
Maximum total current41 A
Nominal cross section4 mm²

Load contact Connection cross sections directly pluggable

Conductor cross section rigid0.34 mm² ... 2.5 mm²
Conductor cross-section flexible (ferrule without plastic sleeve)0.34 mm² ... 1.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.34 mm² ... 1.5 mm²

Line contact Connection cross sections directly pluggable

Conductor cross section rigid0.34 mm² ... 6 mm²
Conductor cross section, rigid [AWG]24 ... 12 (converted acc. to IEC)
Conductor cross section flexible0.34 mm² ... 4 mm²
Conductor cross-section flexible (ferrule without plastic sleeve)0.2 mm² ... 4 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.2 mm² ... 4 mm²

Dimensions

Width21.6 mm
Height58.1 mm
Depth on NS 1526.4 mm
Depth on NS 35/7,528.4 mm

Material specifications

Colororange (RAL 2003)
Flammability rating according to UL 94V0
Insulating material groupI
Insulating materialPA
Static insulating material application in cold-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))125 °C
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)27,5 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed

Surge voltage test

Test voltage setpoint7.3 kV
ResultTest passed

Temperature-rise test

Requirement temperature-rise testIncrease in temperature ≤ 45 K
ResultTest passed
ResultTest passed

Power-frequency withstand voltage

Test voltage setpoint1.89 kV
ResultTest passed

Mechanical data

Open side panelNo

Mechanical strength

ResultTest passed

Attachment on the carrier

DIN rail/fixing supportNS 35/NS 15
Test force setpoint5 N
ResultTest passed

Aging

Temperature cycles192
ResultTest passed

Needle-flame test

Time of exposure30 s
ResultTest passed

Oscillation/broadband noise

SpecificationDIN EN 50155 (VDE 0115-200):2018-05
SpectrumService life test category 2, bogie-mounted
Frequencyf1 = 5 Hz to f2 = 250 Hz
ASD level6.12 (m/s²)²/Hz
Acceleration3.12g
Test duration per axis5 h
Test directionsX-, Y- and Z-axis
ResultTest passed

Shocks

SpecificationDIN EN 50155 (VDE 0115-200):2018-05
Pulse shapeHalf-sine
Acceleration30g
Shock duration18 ms
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)
ResultTest passed

Ambient conditions

Ambient Temperature (Operation)-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (operation)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %

Standards and Regulations

Connection in acc. with standardIEC 60947-7-1
Connection in acc. with standardIEC 60998-2-2

Mounting

Mounting TypeNS 35/7,5
Mounting TypeNS 35/15
Accessories
