Name: 1018853
Brand: Phoenix Contact
SKU: PHX1018853
Price: 67.0000 CAD
Availability: BackOrder

All Industrial Control Panels Components Lighting and signaling

Official Distributor

By Phoenix Contact

SKU

MPN

PSD-S 50 CE-M12-5P

Weight

0.106 kg

This product is Not Cancellable/Not Returnable

Series PSD-S

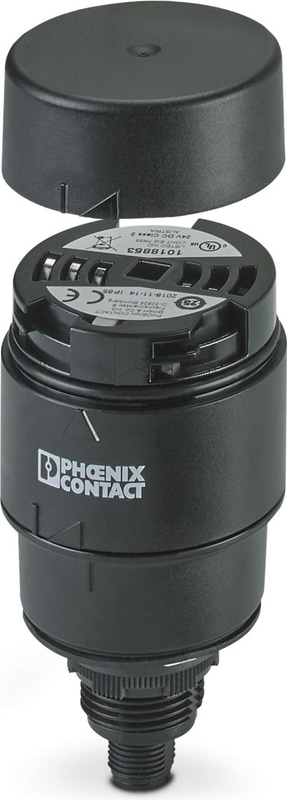

PSD-S 50 CE-M12-5P - Connection element

Base with integrated M12 male (5 pins)

Connecting element for installing on an M12 mounting thread
M12 connection technology (5-pos.)
Degree of protection: IP65, when mounted

Technical Specifications

Product properties

Scope of delivery	End cover and seal
Number of mountable signal elements	max. 4

Connection data

Connection Method	M12
Stripping length	7 mm

Dimensions

Height	90 mm
Diameter	50 mm

Material specifications

Color	black
Material	PA-GF

Ambient conditions

Degree of Protection	IP65 (when installed)
Ambient Temperature (Operation)	-30 °C ... 60 °C

EMC data

Electromagnetic compatibility

Conformance with EMC directive 2004/108/EC and for low-voltage directive 2006/95/EC

Mounting

Mounting Type	M12 mounting threads
Assembly instructions	Seal included
Mounting Position	any
