1018742
Official DistributorSKU
PHX1018742
MPN
PSD-S 50 CE BR-SM/HCR
Weight
0.114 kg
This product is Not Cancellable/Not Returnable
Series PSD-S

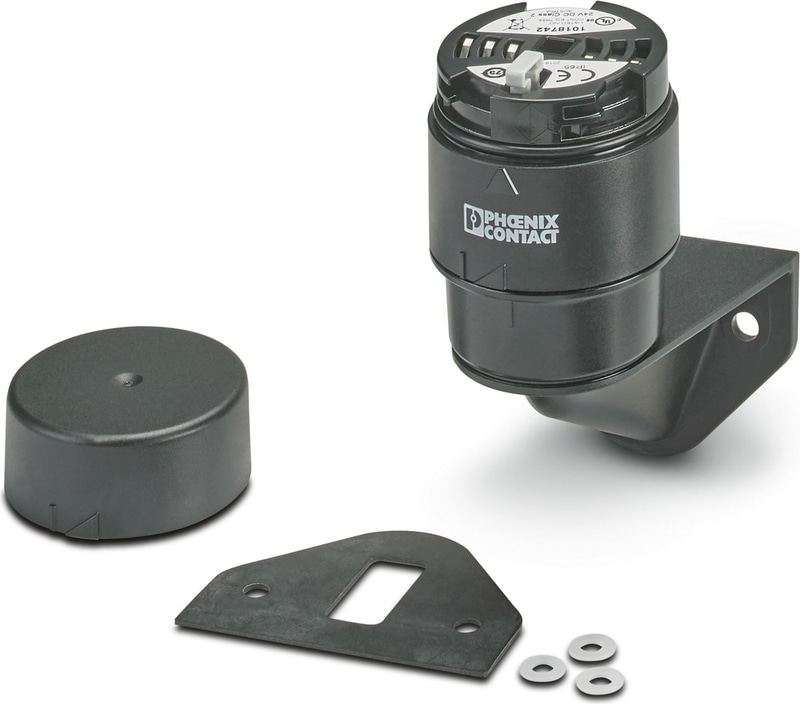

PSD-S 50 CE BR-SM/HCR - Connection element
Base for vertical assembly
- Connecting element for installing on a mounting surface (floor), junction box or bracket (see Accessories)
- Push-in connection technology
- Degree of protection: IP65, when mounted
Technical Specifications
Product properties
| Scope of delivery | End cover and seal |
| Number of mountable signal elements | max. 5 |
without ferrule
| Connection Method | Push-in connection |
| Conductor cross section, flexible | 0.5 mm² ... 1.5 mm² |
| Conductor cross section, flexible [AWG] | ... 15 |
| Stripping length | 7 mm |
With ferrule
| Connection Method | Push-in connection |
| Conductor cross section, flexible | 0.25 mm² ... 1.5 mm² |
| Conductor cross section, flexible [AWG] | ... 15 |
| Stripping length | 7 mm |
solid
| Connection Method | Push-in connection |
| Conductor cross section, rigid | 0.5 mm² ... 1.5 mm² |
| Stripping length | 7 mm |
Dimensions
| Height | 107 mm |
| Diameter | 67 mm |
Material specifications
| Color | black |
| Material | PA-GF |
Ambient conditions
| Degree of Protection | IP65, when installed |
| Ambient Temperature (Operation) | -30 °C ... 60 °C |
EMC data
| Electromagnetic compatibility | Conformance with EMC directive 2004/108/EC and for low-voltage directive 2006/95/EC |
Mounting
| Mounting Type | Base mounting |
| Assembly instructions | Seal included |
| Mounting Position | any |
Accessories
Why Proax for Phoenix Contact 1018742?
Proax is an authorized distributor of Phoenix Contact 1018742 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
