Official DistributorBy Rittal
SKU
Weight
0.61 kg

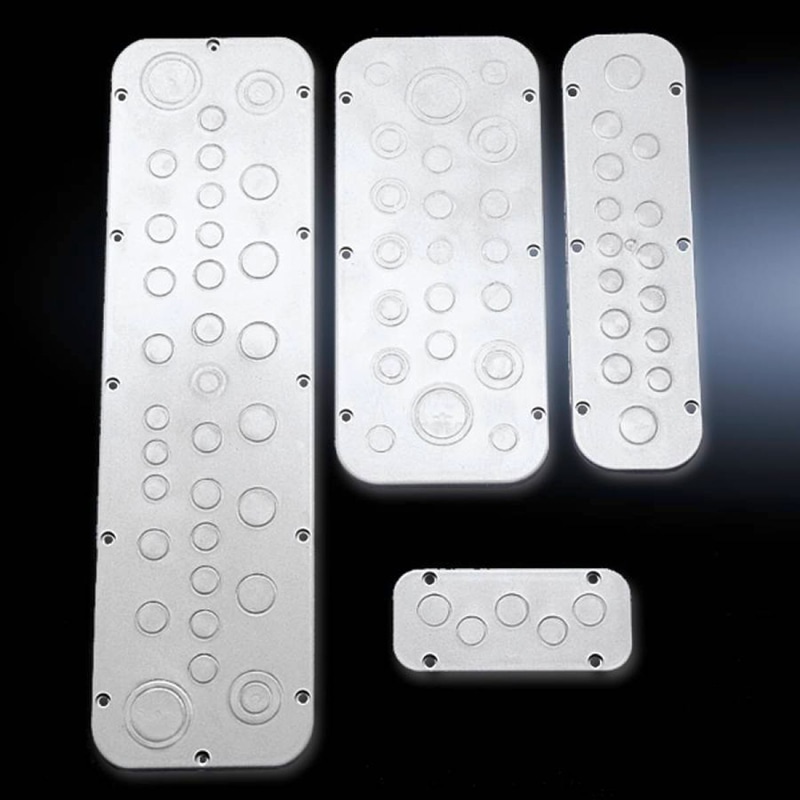

SZ Plastic cable gland plate, with metric knock-outs, WD: 160x70 mm, size: 1
Technical Specifications
Dimensions
| Width | 160 mm |
| Depth | 70 mm |
| Color | RAL 7035 |
| Note | The assignment of the flange plate size can be found on the respective housings |
| No. of metric knockouts | 2 x M12 2 x M20 3 x M25 |
| Suitable for | Enclosure type: AE |
| Gland plate | Size: 1 |
| Operating temperature range | -40 °C...70 °C |
| Protection category IP to EN 60 529 | IP 55 if correctly installed |
| Packaging unit | 10 pc(s). |
| Weight/packaging unit | 0.61 kg |
| Customs tariff number | 39269097 |
| EAN | 4028177550254 |
| ETIM 7.0 | EC000211 |
| ECLASS 8.0 | 27142421 |
