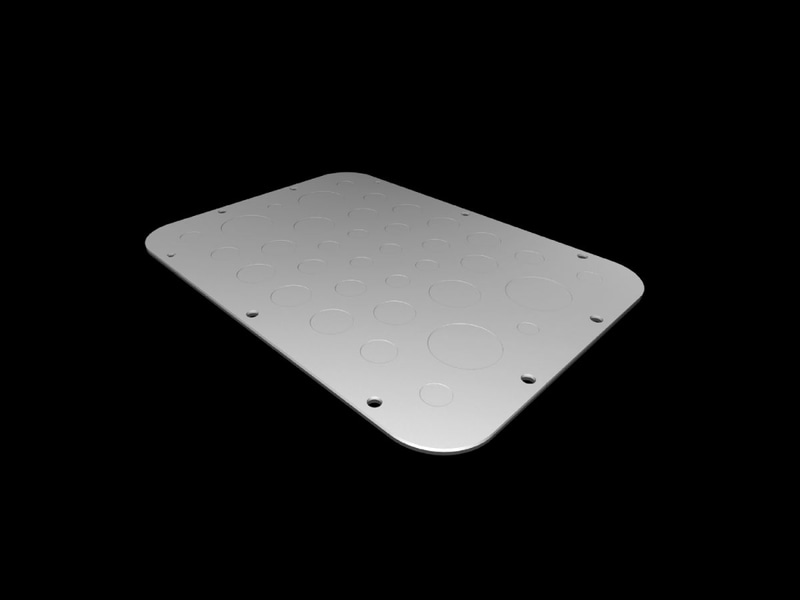

SZ Metal gland plate, for AX, with metric knockouts, WD: 301x221 mm, for gland plates size 5
Metal gland plate with metric knockouts, for AX
Simply knock out the holes for the cable glands with a screwdriver.
Technical Specifications
Dimensions
| Width | 301 mm |
| Depth | 221 mm |
| Product modification | From April 2021, the metal gland plates with metric knockouts for AX and KX will been given an optimized design with micro ridges for easy removal of the breakouts. |
| Material | Carbon steel |
| Color | RAL 7035 |
| Note | The assignment of the flange plate size can be found on the respective housings |
| No. of metric knockouts | 2 x M12 10 x M16 8 x M20 10 x M25 2 x M32 4 x M40 |
| Suitable for | Enclosure type: AX |
| Gland plate | Size: 5 |
| Protection category IP to EN 60 529 | IP 66 if correctly installed |
| Type rating according to UL 50E | Type 1, 12K |
| Weight/packaging unit | 1.07 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177925106 |
| ETIM 7.0 | EC000211 |
| ECLASS 8.0 | 27142421 |
Why Proax for Rittal 2575100?
Proax is an authorized distributor of Rittal 2575100 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
