1434500
Official DistributorBy Rittal
SKU
RIT1434500
Weight
5.9 kg

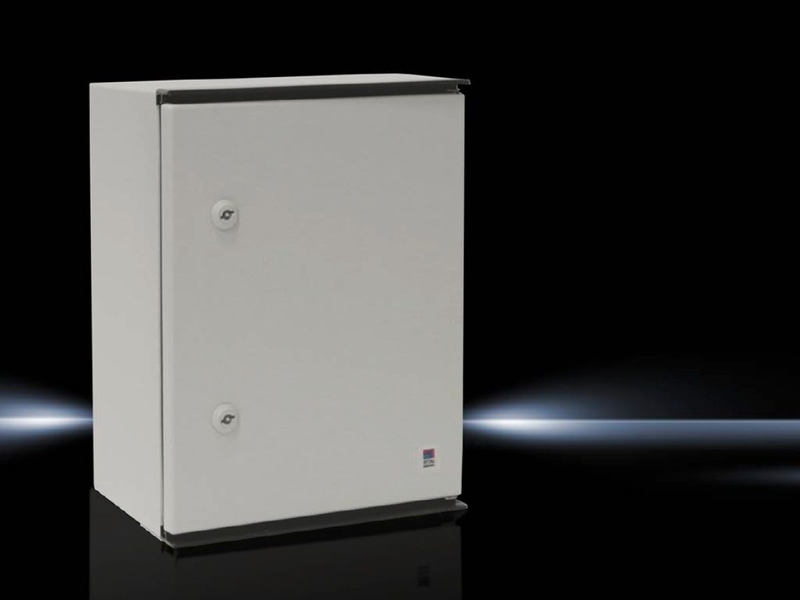

KS Plastic enclosure, WHD: 300x400x200 mm, Fibreglass-reinforced unsaturated polyester, with mounting plate, with door
Supply includes
Housing with hinged door, of all-round solid construction, 3 mm double-bit lock
Mounting plate
Twin seal on the top and bottom edges of the door as integral rain protection strip
Press-fitted C sections at the sides for infinitely variable mounting plate depth adjustment
Technical Specifications
Dimensions
| Width | 300 mm |
| Height | 400 mm |
| Depth | 200 mm |
Lock
| Lock version | Cam |
| Number locks | 2 |
| Lock Insert | 3 mm double-bit |
Material
| Housing and door | Fiberglass-reinforced unsaturated polyester |
| Door | All-round foamed-in PU seal |
| Mounting plate | Carbon steel |
| Viewing window | Glazed acrylic, 3.0 mm with all-round rubber cable clamp strip |
Mounting plate
| Width | 245 mm |
| Height | 350 mm |
Surface finish
| Housing and door | Dyed plastic with no after-treatment |
| Mounting plate | Zinc-plated |
| Version | without viewing window |
| Color | Similar to RAL 7035 |
| Protection category NEMA | NEMA 4X |
| Protection category IP to EN 60 529 | IP 66 |
| IK code | IK08 |
| Material thickness – mounting plate | 2 mm |
| Number of doors | 1 |
| Interchangeable door catch | Yes |
| No. of locks | 2 |
| Note | Under the influence of long-term UV radiation (sunlight) in conjunction with wind and rain, the surface finish may become visually impaired. This does not affect the protection of the installed electrical components in any way. If the enclosures cannot be protected from UV radiation, we recommend that they should be painted with a PUR paint. Permissible ambient temperature -30 °C...+75 °C. |
| Base material | Plastic |
| Weight/packaging unit | 5.9 kg |
| Customs tariff number | 94037000 |
| EAN | 4028177526662 |
| ETIM 7.0 | EC000261 |
| ECLASS 8.0 | 27180101 |
Why Proax for Rittal 1434500?
Proax is an authorized distributor of Rittal 1434500 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
