5031388
Official DistributorSKU
PHX5031388
MPN
BMK 20X 8 YE
Weight
0.011 kg
Series BMK

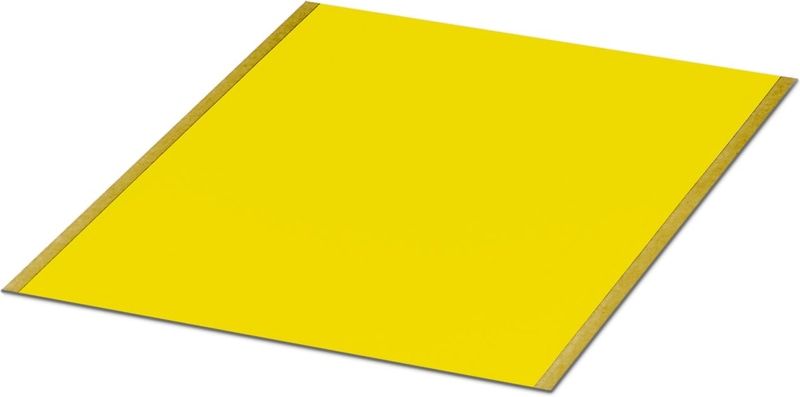

BMK 20X 8 YE - Fabric label sheet
- Available in various dimensions
- Self-adhesive labels for labeling by hand or with a plotter
- Secure adhesion even on curved or uneven surfaces as well as round corners
- Labeling service: Phoenix Contact can custom-label all BMK ... markers according to your requirements
Technical Specifications
Marking
| Number of individual labels | 270 |
| Number of individual labels per row | 9 |
| Identification technology | Plotter |
Mounting
| Mounting Type | adhesive |
Material specifications
| Foil strength | 66 µm |
| Adhesive strength | 27.9 µm |
| Adhesive | Acrylic |
| Color | yellow |
| Material | Polyester foil |
| Base element material | Polyester foil |
| Components | Silicone-free |
Test for substances that would hinder coating with paint or varnish
| Result | Test passed |
| Result | Test passed |
Scratch test for the determining scratch resistance
| Specification | EN ISO 1518-1:2023 (following) |
| Requirements | ≥ 5 N |
| Result | Test passed |
Tesafilm test
| Specification | DIN EN ISO 2409:2013 (following) |
| Result | Test passed |
UV resistance
| Specification | DIN EN ISO 4892-2:2021-11 (following) |
| Result | Test passed |
| Test duration | 96 h |
Temperature resistance
| Specification | ANSI/UL 969-2018:03 (following) |
| Test duration | 240 h |
| Rating 125 °C (150 °C) | Test passed |
Wipe resistance of inscriptions
| Specification | DIN EN 61010-1 (VDE 0411-01):2020-03 |
| Specification | DIN EN 62208 (VDE 0660-511):2012-06 (in parts) |
| Isopropyl [CAS No. 67-63-0] | Test passed |
| n-Hexane [CAS No. 110-54-3] | Test passed |
| Water + Petroleum ether [CAS No. 64742-82-1] | Test passed |
| Sodium hydroxide 0.1 mol/l [CAS No. 1310-73-2] | Test passed |
| Ethanol (99 %) [CAS No. 64-17-5] | Test passed |
| Specification | ISO 175:2010 (following) |
| Test duration | 168 h |
| Diesel [CAS No. 68476-34-6] | Test passed |
| IRM 901 | Test passed |
| IRM 902 | Test passed |
Testing in a condensation changing climate in the presence of sulfur dioxide
| Specification | ISO 22479:2019-05 |
| Result | Test passed |
| Cycles | 2 |
Salt spray test
| Specification | DIN EN 60068-2-11:2000-02 |
| Result | Test passed |
| Test duration | 96 h |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 80 °C |
| Recommended ambient temperature (storage/transport) | < 26 °C |
| Recommended humidity (storage/transport) | 60 % (Storage in a dry and dark place in the original packaging is recommended) |
| Shelf life | 2 years |
Dimensions
| Width | 20 mm |
| Length | 8 mm |
Notes
| General | Can be labeled with CMS |
