0805470
Official DistributorSKU
PHX0805470
MPN
BMK 20X 8 WH
Weight
0.02 kg
This product is Not Cancellable/Not Returnable
Series BMK

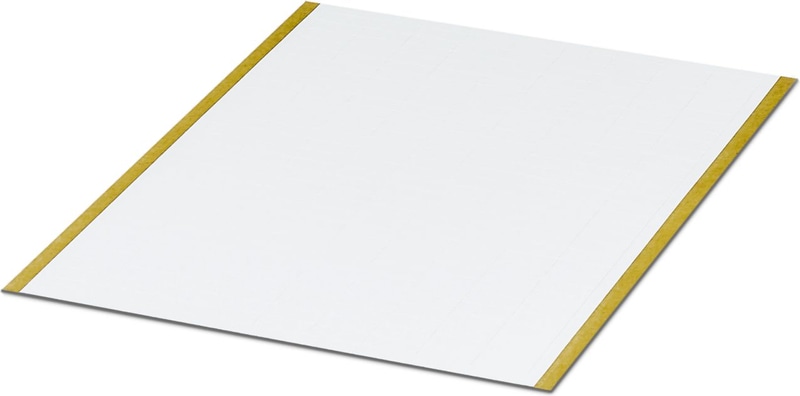

BMK 20X 8 WH - Fabric label sheet
- Available in various dimensions
- Self-adhesive labels for labeling by hand or with a plotter
- Secure adhesion even on curved or uneven surfaces as well as round corners
- Labeling service: Phoenix Contact can custom-label all BMK ... markers according to your requirements
Technical Specifications
Marking
| Number of individual labels | 270 |
| Number of individual labels per row | 9 |
| Identification technology | Plotter |
Mounting
| Mounting Type | adhesive |
Material specifications
| Adhesive | Acrylic |
| Color | white |
| Material | Polyester foil |
| Flammability rating according to UL 94 | V0 |
| Base element material | Polyester foil |
| Components | Silicone-free |
Test for substances that would hinder coating with paint or varnish
| Result | Test passed |
UV resistance
| Specification | ISO 4892-2:2013-03 (following) |
| Result | Test passed |
| Test duration | 96 h |
Wipe resistance of inscriptions
| Specification | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Specification | DIN EN 62208 (VDE 0660-511):2012-06 (in parts) |
| Isopropyl [CAS No. 67-63-0] | Test passed |
| n-Hexane [CAS No. 110-54-3] | Test passed |
| Water + Petroleum ether [CAS No. 64742-82-1] | Test passed |
Testing in a condensation changing climate in the presence of sulfur dioxide
| Specification | DIN 50018:2013-05 |
| Result | Test passed |
| Climate level | AHT 1.0 S |
| Cycles | 2 |
Salt spray test
| Specification | DIN EN 60068-2-11:2000-02 |
| Result | Test passed |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 80 °C |
| Recommended ambient temperature (storage/transport) | 23 °C |
| Recommended humidity (storage/transport) | 50 % |
Dimensions
| Width | 20 mm |
| Length | 8 mm |
Notes
| General | Can be labeled with CMS |
Accessories
Why Proax for Phoenix Contact 0805470?
Proax is an authorized distributor of Phoenix Contact 0805470 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
