Name: 3240150
Brand: Phoenix Contact
SKU: PHX3240150
Price: 0.7400 CAD
Availability: BackOrder

Official Distributor

By Phoenix Contact

SKU

MPN

C-FC 6/M6

Weight

0.002 kg

Series C-FC

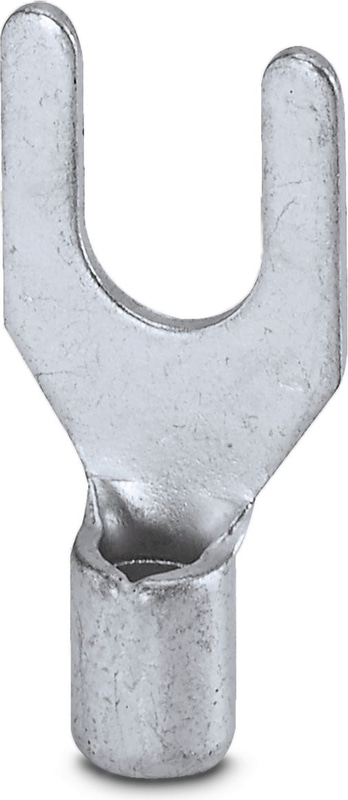

C-FC 6/M6 - Fork-type cable lug

Fork-type cable lug, non-insulated, 2.6 - 6 mm2, M6

The fork-type cable lugs without plastic sleeve feature a hard-soldered neck. In conjunction with the CRIMPFOX‑RC ... and CRIMPFOX‑RCI ... pliers they can be used to achieve maximum conductor pull-out forces
The insulated versions are halogen-free and feature "EASY ENTRY" technology

Dimensions

Width	12 mm
Length of the insulating material sleeve	6.5 mm
Maximum stripping length	9 mm
Distance from the center to the insulating material sleeve	9.5 mm
Min. material thickness	1 mm
Inner dimensions of the insulating collar	3.6 mm

Internal dimensions

Internal diameter

6.4 mm

Material specifications

Color	silver
Material	Copper
Coating	tin-plated
Components	halogen-free

Ambient conditions

Ambient Temperature (Operation)

110 °C

Standards and Regulations

Design according to standard

DIN 46234
