3240139
Official DistributorSKU
PHX3240139
MPN
C-FC 1,5/M4
Weight
0.001 kg
Series C-FC

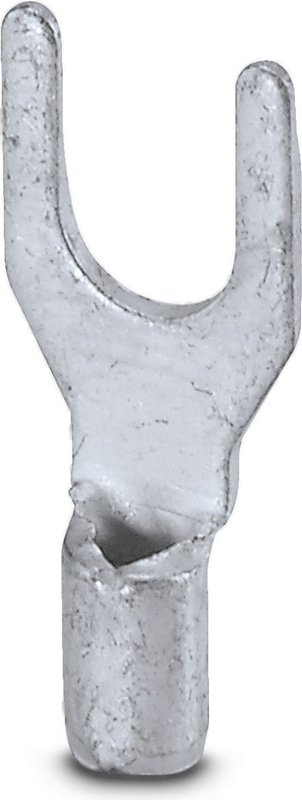

C-FC 1,5/M4 - Fork-type cable lug
Fork-type cable lug, non-insulated, 0.5 - 1 mm2, M4
- The fork-type cable lugs without plastic sleeve feature a hard-soldered neck. In conjunction with the CRIMPFOX‑RC ... and CRIMPFOX‑RCI ... pliers they can be used to achieve maximum conductor pull-out forces
- The insulated versions are halogen-free and feature "EASY ENTRY" technology
Technical Specifications
Dimensions
| Width | 7.2 mm |
| Length of the insulating material sleeve | 4.5 mm |
| Maximum stripping length | 7 mm |
| Distance from the center to the insulating material sleeve | 7.2 mm |
| Min. material thickness | 0.75 mm |
| Inner dimensions of the insulating collar | 1.9 mm |
Internal dimensions
| Internal diameter | 4.3 mm |
Material specifications
| Color | silver |
| Material | Copper |
| Coating | tin-plated |
| Components | halogen-free |
Ambient conditions
| Ambient Temperature (Operation) | 110 °C |
Standards and Regulations
| Design according to standard | DIN 46234 |
Why Proax for Phoenix Contact 3240139?
Proax is an authorized distributor of Phoenix Contact 3240139 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 100 |
