3038749
Official DistributorSKU
PHX3038749
MPN
PS-7,5/2,3MM RD
Weight
0.001 kg

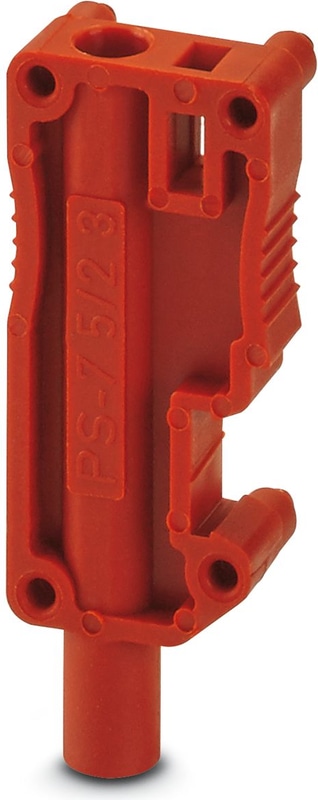

PS-7,5/2,3MM RD - Test plug
Test plug, number of positions: 1, color: red
- The test plug reliably makes contact in the bridge shaft and in all test sockets with a 2.3 mm or 4 mm diameter
- Individual test adapters can be combined using the modular PS-...2,3MM test plug.
- The test plugs are inserted in the function shaft of the terminal blocks from the CLIPLINE complete system or in the test pick-offs provided
- Housing for test plugs, any combination
Technical Specifications
Product properties
| Number of Positions | 1 |
| Pitch | 7.5 mm |
Connection data
| Connection Method | Spring-cage connection |
Dimensions
| Width | 7.5 mm |
| Height | 14 mm |
| Depth on NS 35/7,5 | 36 mm |
| Pitch | 7.5 mm |
Material specifications
| Color | red |
| Material | PA |
| Flammability rating according to UL 94 | V0 |
Ambient conditions
| Ambient Temperature (Operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C () |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Why Proax for Phoenix Contact 3038749?
Proax is an authorized distributor of Phoenix Contact 3038749 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
