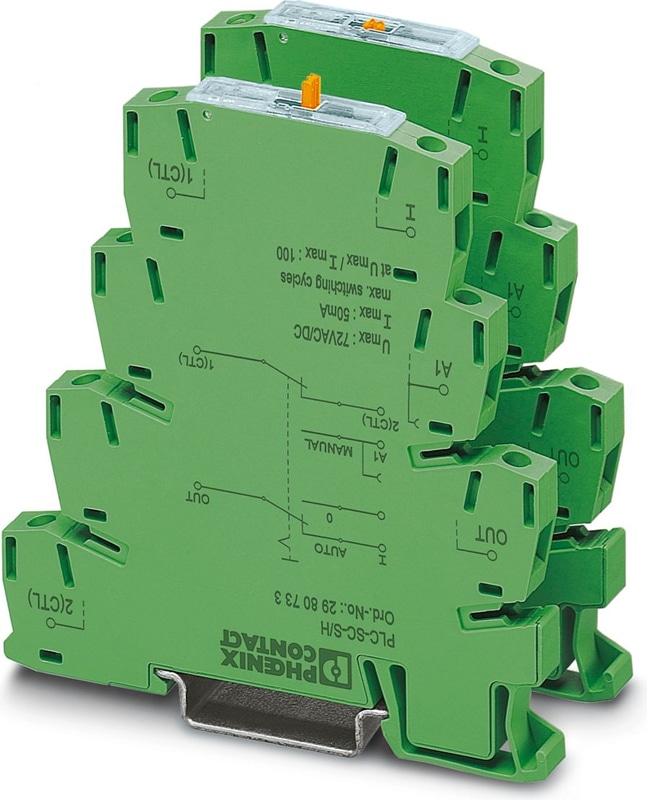

The figure shows a version with a screw connection
2980788
Official DistributorSKU
PHX2980788
MPN
PLC-SP-S/L
Weight
0.027 kg
PLC-SP-S/L - Switch
PLC-RELAY with integrated switch (actuation: Screwdriver) with spring-cage connection, for mounting on DIN rail NS 35/7.5, input voltage ≤ 72 V DC
- Just 6.2 mm wide
- Floating confirmation contact
Technical Specifications
Product properties
| Product family | PLC-INTERFACE |
| Operating mode | 100% operating factor |
Insulation characteristics
| Insulation | Basic insulation |
| Insulation | Basic insulation |
| Overvoltage category | III |
| Pollution degree | 2 |
Electrical properties
| Rated Insulation Voltage | 85 V AC |
| Rated surge voltage | 0.5 kV |
Switching
| Maximum Switching Voltage | 72 V DC |
| Minimum Switching Voltage | 2 V DC |
| Maximum Inrush Current | 50 mA |
| Min. switching current | 1 mA |
| Switching cycles, max. | 100 (At 72 V DC / 50 mA) |
| Switching cycles, max. | 10000 (at 12 V DC / 100 mA) |
| Insulation resistance | 100 MΩ |
Input side
| Connection Method | Spring-cage connection |
| Stripping length | 8 mm |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 |
Output side
| Connection Method | Spring-cage connection |
| Stripping length | 8 mm |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 |
Dimensions
| Width | 6.2 mm |
| Height | 80 mm |
| Depth | 86 mm |
Material specifications
| Color | green (RAL 6021) |
| Flammability rating according to UL 94 | V0 (Housing) |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
Standards and Regulations
| Standards/regulations | IEC 60664 |
| Standards/regulations | EN 50178 |
Mounting
| Mounting Type | DIN rail mounting |
| Assembly instructions | in rows with zero spacing |
| Mounting Position | any |
Why Proax for Phoenix Contact 2980788?
Proax is an authorized distributor of Phoenix Contact 2980788 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
