Phoenix Contact 2980555

2980555

Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
PHX2980555
MPN
PLC-SP-ELR W1/ 2-24DC
Weight
0.055 kg
This product has been discontinued and replaced with 1069556

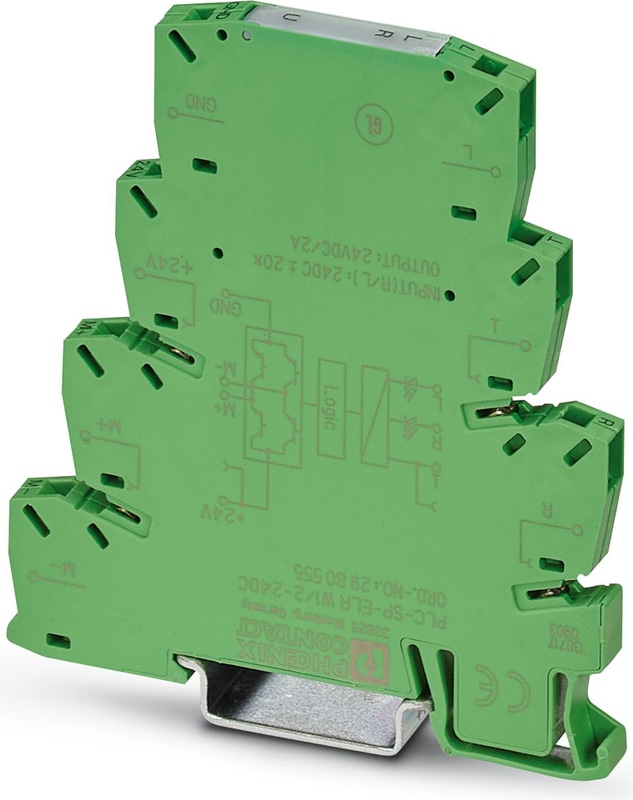

PLC-SP-ELR W1/ 2-24DC - Reversing load relay

PLC-INTERFACE as an electronic reversing load relay, consisting of PLC-BSP.../21 basic terminal block with spring-cage connection and integrated circuit, for driving DC motors, with LED and protective circuit, output: 10 ... 30 V DC/2 A

  • Wear-free reversing
  • Short-circuit, surge, and overload-proof output
  • Braking by controlling both inputs
  • Integrated locking circuit and load wiring
Technical Specifications

Product properties

Product familyPLC-INTERFACE
Operating mode100% operating factor

Insulation characteristics

InsulationBasic insulation

Insulation characteristics: Air clearances and creepage distances between the power circuits

InsulationBasic insulation
Overvoltage categoryII
Pollution degree2

Electrical properties

Number of phases1
Maximum power dissipation for nominal condition0.4 W
Mains type1-phase

Air clearances and creepage distances between the power circuits

Rated Insulation Voltage50 V
Rated surge voltage0.5 kV

Supply

Input nameDevice supply
Nominal input voltage UN24 V DC ±20 % (Control voltage UST right/left)
Input voltage range19.2 V DC ... 28.8 V DC
Typical input current at UNapprox. 3 mA (Control input current IST right/left)
Rated control circuit supply voltage US24 V DC
Control supply voltage range19.2 V DC ... 28.8 V DC
Typical response time200 µs
Protective circuitReverse polarity protection; Polarity protection diode
Protective circuitSurge protection
Status displayYellow LED
Surge voltage protection> 33 V DC
Transmission frequency300 Hz
Switchover time RL/LL (turn-on time)80 ms

Control

Input nameControl input right/left
Nominal input voltage UN24 V DC
Input voltage range in reference to UN0.8 ... 1.2
Input voltage range19.2 V DC ... 28.8 V DC
Input voltage range in reference to UN0.8 ... 1.2

Output data

Operating voltage range10 V DC ... 30 V DC
Nominal Output Voltage24 V DC
Nominal output voltage range10 V DC ... 30 V DC
Load Current2 A
Quiescent current10 mA
Protective circuitReverse polarity protection; Polarity protection diode
Protective circuitSurge protection
Surge voltage protection> 33 V DC
Operating voltage displayGreen LED

Motor switching output

NoteShort-circuit and overload protection
Continuous load current2 A (see derating curve)
Short-circuit current15 A (during braking)
Protective circuitSurge protection
Protective circuitRC element
Surge voltage protection> 33 V DC

Control circuits

Connection MethodSpring-cage connection
Stripping length8 mm
Conductor cross section rigid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
Conductor cross section AWG26 ... 14

Load circuit

Connection MethodSpring-cage connection
Stripping length8 mm
Conductor cross section rigid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
Conductor cross section AWG26 ... 14

Dimensions

Width6.5 mm
Height80 mm
Depth86 mm

Material specifications

Colorgreen (RAL 6021)
Flammability rating according to UL 94V0

Ambient conditions

Degree of ProtectionIP20
Ambient Temperature (Operation)-25 °C ... 60 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C

Air clearances and creepage distances between the power circuits

Standards/regulationsIEC 60664
Standards/regulationsEN 50178

Mounting

Mounting TypeDIN rail mounting
Assembly instructionsin rows with zero spacing
Mounting PositionVertical (horizontal DIN rail)
