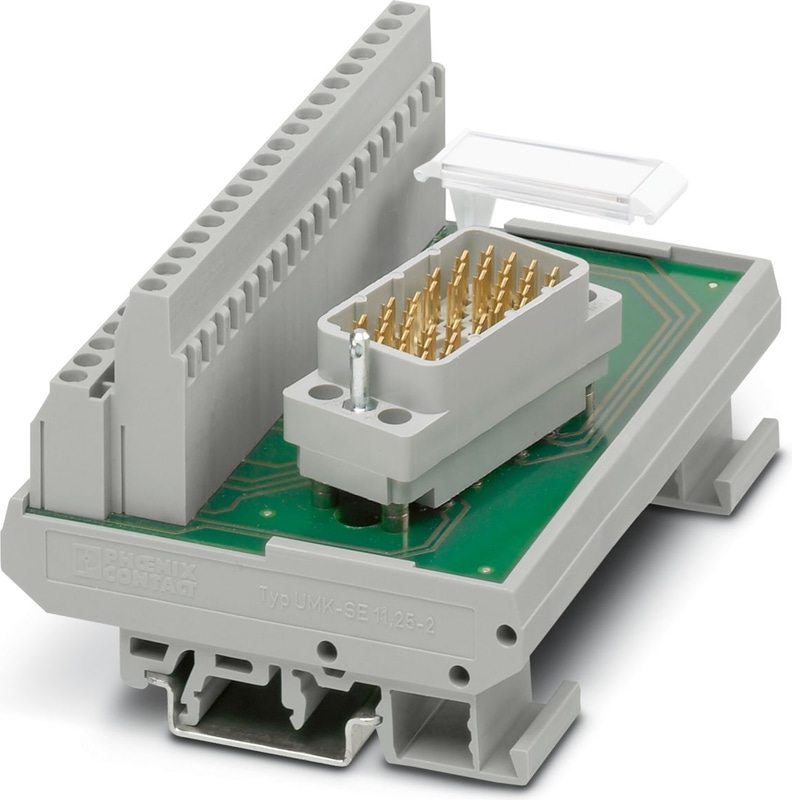

UMK- EC38/38-XOL - Interface module
Interface module, connection 1: EDAC / ELCO pin strip 1x 38-position (ELCO pin strip type 8016/EDAC pin strip type 516, left), connection 2: Screw connection 38-position
Technical Specifications
Product properties
| Product family | VARIOFACE |
| Number of Positions | 38 |
| Operating mode | 100% operating factor |
Insulation characteristics
| Insulation | Functional insulation |
Insulation characteristics: Air clearances and creepage distances
| Insulation | Functional insulation |
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Operating voltage (AC) | ≤ 30 V AC |
| Operating voltage (DC) | ≤ 60 V DC |
| Current (per branch) | ≤ 2 A |
| Current (Total current) | ≤ 76 A |
Air clearances and creepage distances
| Rated Insulation Voltage | 85 V |
| Rated surge voltage | 0.8 kV (1.2/50 μs) |
Connection 1 (control level)
| Connection Method | EDAC / ELCO pin strip |
| Coding | 1-1 |
| Number of Connections | 1 |
| Number of Positions | 38 |
| Note | ELCO pin strip type 8016/EDAC pin strip type 516, left |
| Pitch | 3.81 mm |
Connection 2 (field level)
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Number of Positions | 38 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Signaling
| Status display present | No |
Item dimensions
| Width | 101.5 mm |
| Height | 77 mm |
| Depth | 57.32 mm |
Material specifications
| Color | gray (RAL 7042) |
| Housing insulation material | Polyamide PA non-reinforced |
Ambient conditions
| Degree of protection (Module) | IP00 |
| Degree of protection (Installation location) | ≥ IP54 |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Altitude | ≤ 2000 m |
UKCA
| Certificate | UKCA-compliant |
Air clearances and creepage distances
| Standards/regulations | EN IEC 60664-1 |
Mounting
| Mounting Type | DIN rail mounting |
| Mounting Position | any |
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
