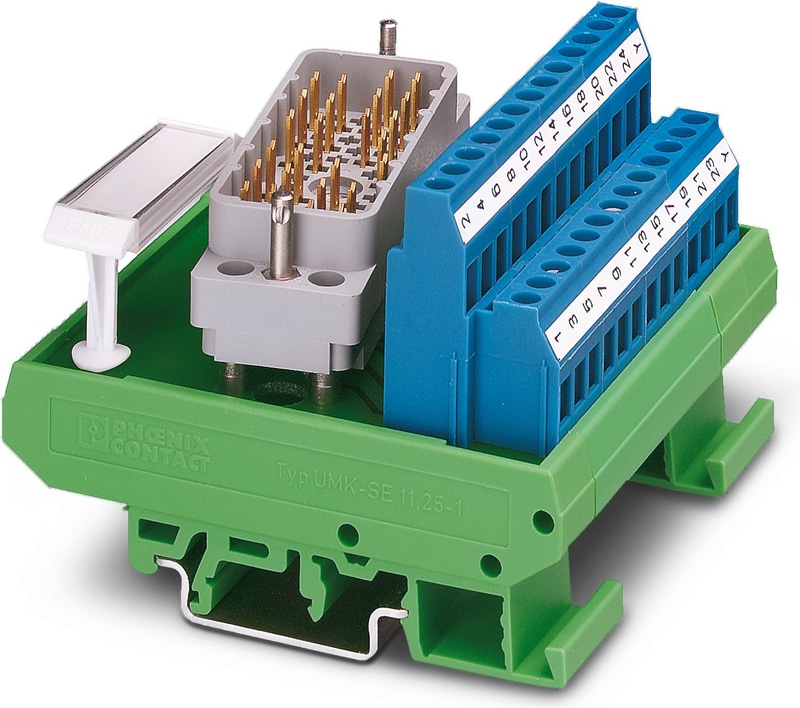

The figure shows version UMK- EC 56/25/EEX-R
Official DistributorSKU
MPN
UMK- EC56/25/EEX-L
Weight
0.19 kg
Series UMK-EC
UMK- EC56/25/EEX-L - Termination board
Termination board, connection 1: Screw connection, connection 2: ELCO connector 1x 25-position (Pin strip type 8016 (EEx i protection), left)
Documents
Technical Specifications
Product properties
| Number of Positions | 25 |
Electrical properties
| Nominal voltage UN | 30 V AC/DC |
| Max. current carrying capacity per branch | 4 A |
| Max. total current of all branches | 42.5 A (25 branches, each with 1.7 A) |
Field level
| Connection in acc. with standard | IEC / EN |
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Controller level
| Connection Method | ELCO connector |
| Number of Connections | 1 |
| Number of Positions | 25 |
| Note | Pin strip type 8016 (EEx i protection), left |
Signaling
| Status display present | No |
Item dimensions
| Width | 78.8 mm |
| Height | 77 mm |
| Depth | 58.5 mm |
Material specifications
| Color | green (RAL 6021) |
| Housing insulation material | Polyamide PA non-reinforced |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 40 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards and Regulations
| Standards/regulations | EN 50020 |
| Standards/regulations | VDE 0165 |
Mounting
| Mounting Position | any |
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
