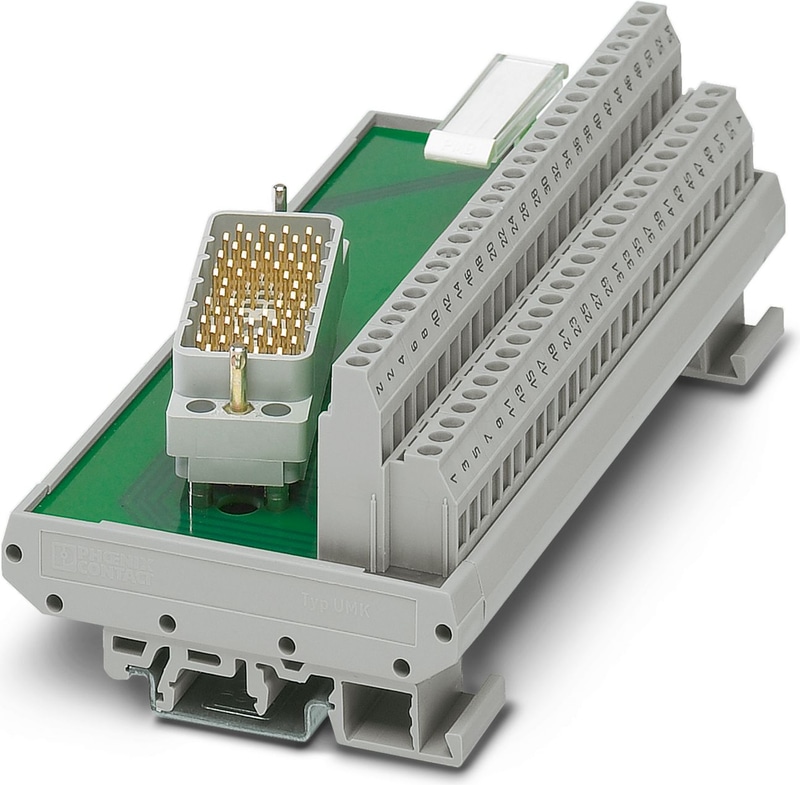

UMK- EC56/56-XOR - Interface module
Interface module, connection 1: Screw connection, connection 2: EDAC / ELCO pin strip 1x 56-position (ELCO pin strip type 8016/EDAC pin strip type 516, right)
Technical Specifications
Product properties
| Product family | VARIOFACE |
| Number of Positions | 56 |
Insulation characteristics
| Insulation | Functional insulation |
Insulation characteristics: Air clearances and creepage distances
| Insulation | Functional insulation |
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Max. permissible operating voltage | 125 V AC/DC |
| Max. permissible current | 1.5 A (per path) |
| Max. permissible total current | 28 A (56 branches with 0.5 A each) |
Air clearances and creepage distances
| Rated Insulation Voltage | 125 V |
| Rated surge voltage | 1.5 kV |
Field level
| Connection in acc. with standard | IEC / EN |
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Controller level
| Connection Method | EDAC / ELCO pin strip |
| Coding | 1-1 |
| Number of Connections | 1 |
| Number of Positions | 56 |
| Note | ELCO pin strip type 8016/EDAC pin strip type 516, right |
Signaling
| Status display present | No |
Item dimensions
| Width | 157.25 mm |
| Height | 77 mm |
| Depth | 57.37 mm |
Material specifications
| Color | gray (RAL 7042) |
| Housing insulation material | Polyamide PA non-reinforced |
Ambient conditions
| Degree of Protection | IP00 |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Altitude | ≤ 2000 m |
Air clearances and creepage distances
| Standards/regulations | EN 60664-1 |
Mounting
| Mounting Type | DIN rail mounting |
| Assembly instructions | in rows with zero spacing |
| Mounting Position | any |
Notes
| Notes on operation | Ensure that the supply voltage of the device has a common reference potential. |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
