2975845
Official DistributorSKU
PHX2975845
MPN
UMK-16 RELS/KSR-W230/I/S100
Weight
0.469 kg
Series UMK

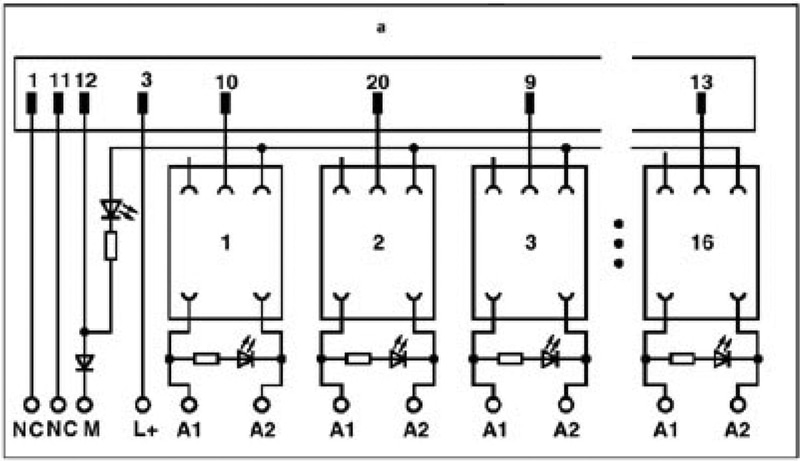

UMK-16 RELS/KSR-W230/I/S100 - Active module
VARIOFACE input module, for Siemens SIMATIC® S5-95U and S5-100U, with plug-in sockets for 16 miniature switching relays for 230 V AC
Technical Specifications
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Product properties
| No. of channels | 16 |
| Compatible components | Miniature switching relay, REL-KSR-W230/21AU |
| With components | no |
Insulation characteristics
| Overvoltage category | III |
| Pollution degree | 2 |
Input data
| Nominal input voltage UN | 230 V AC |
| Input voltage range in reference to UN | 0.4 ... 1.1 |
| Typical input current at UN | 0.5 mA (Light indicator) |
| Protective circuit | Polarity protection diode |
| Operating voltage display | Green LED |
| Status display/channel | Glow lamp |
Output data
| Compatible components | Miniature switching relay, REL-KSR-W230/21AU |
Switching
| Contact switching type | 1 N/O contact |
| Maximum Switching Voltage | 24 V DC |
| Maximum Switching Voltage | 30 V DC |
| Limiting Continuous Current | 0.5 A |
| Error detection (line break / short-circuit) | no |
Input
| Connection Method | Flat-ribbon cable connector in acc. with IEC 60603-13 |
| Stripping length | 8 mm |
| Number of Connections | 1 |
| Number of Positions | 20 |
Output
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Number of Connections | 36 |
| Number of Positions | 2 |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 12 |
Signaling
| Status display present | Yes |
Dimensions
| Width | 281.3 mm |
| Height | 90 mm |
| Depth | 68 mm |
Material specifications
| Color | green (RAL 6021) |
| Housing insulation material | PVC, side panel PA non-reinforced, |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards and Regulations
| Standards/regulations | IEC 60664 |
| Standards/regulations | IEC 60664 |
| Standards/regulations | DIN VDE 0110 |
| Standards/regulations | DIN VDE 0160 (in parts) |
Mounting
| Mounting Position | any |
Why Proax for Phoenix Contact 2975845?
Proax is an authorized distributor of Phoenix Contact 2975845 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
