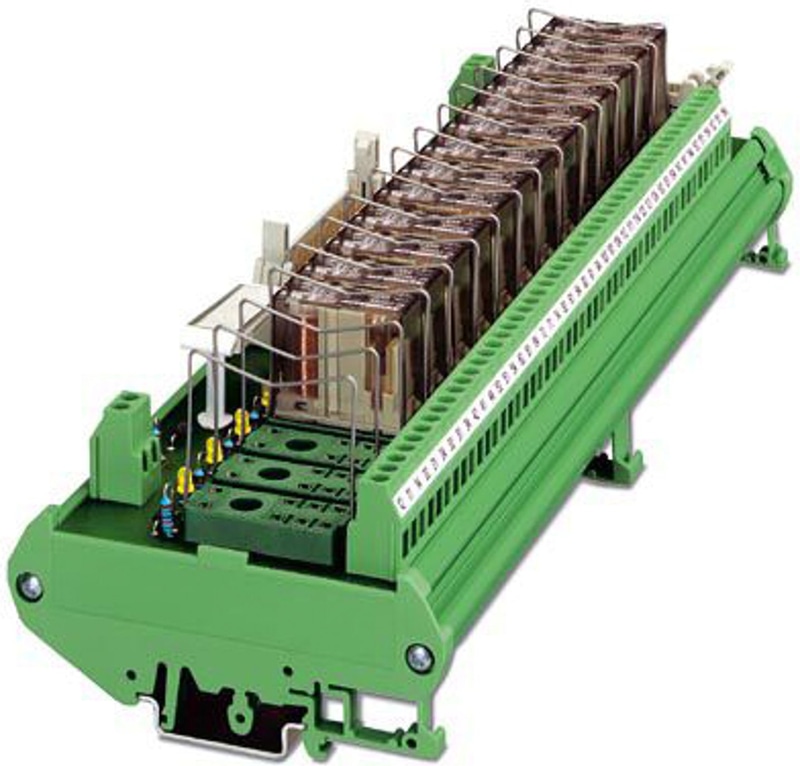

UMK-16 RELS/KSR-G24/S100 - Active module
VARIOFACE output module, for Siemens SIMATIC S5-95U and S5-100U, with plug-in socket for 16 miniature switching relays, for 24 V DC
Technical Specifications
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Product properties
| No. of channels | 16 |
| Compatible components | Miniature switching relay, REL-MR-24DC/21HC |
| With components | no |
Insulation characteristics
| Overvoltage category | III |
| Pollution degree | 2 |
Input data
| Nominal input voltage UN | 24 V DC |
| Input voltage range in reference to UN | 0.8 ... 1.1 |
| Input voltage range | 19.2 V DC ... 26.4 V DC |
| Protective circuit | Freewheeling diode; Freewheeling diode |
| Protective circuit | Reverse polarity protection; Polarity protection diode |
| Operating voltage display | Green LED |
| Status display/channel | Yellow LED |
Output data
| Compatible components | Miniature switching relay, REL-MR-24DC/21HC |
Switching
| Contact switching type | 1 changeover contact |
| Maximum Switching Voltage | 250 V AC/DC |
| Limiting Continuous Current | 5 A |
| Error detection (line break / short-circuit) | no |
Input
| Connection Method | Flat-ribbon cable connectors |
| Number of Connections | 2 |
| Number of Positions | 40 |
Output
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Number of Connections | 52 |
| Number of Positions | 3 |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 12 |
Signaling
| Status display present | Yes |
Dimensions
| Width | 270 mm |
| Height | 90 mm |
| Depth | 68 mm |
Material specifications
| Color | green (RAL 6021) |
| Housing insulation material | PVC, side panel PA non-reinforced, |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards and Regulations
| Standards/regulations | IEC 664 |
| Standards/regulations | IEC 664 A |
| Standards/regulations | DIN VDE 0110 |
| Standards/regulations | DIN VDE 0160 (in parts) |
Mounting
| Mounting Position | any |
