2965185
Official DistributorSKU
PHX2965185
MPN
UMK-16 RELS/KSR-G24/21/SLC
Weight
0.47 kg
Series UMK

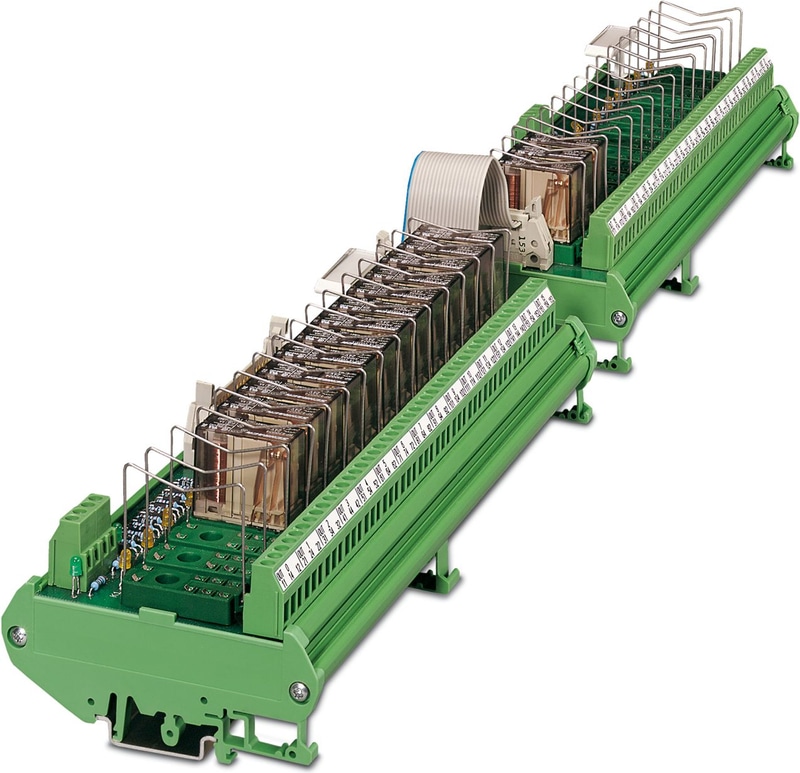

UMK-16 RELS/KSR-G24/21/SLC - Active module
VARIOFACE output module, with plug-in bases for 16 miniature switching relays, for Allen-Bradley SLC 500, OB32 output card
Technical Specifications
Product properties
| No. of channels | 32 |
| Compatible components | Miniature switching relay, REL-MR-24DC/21HC |
| With components | no |
Insulation characteristics
| Overvoltage category | III |
| Pollution degree | 2 |
Supported controller ALLEN-BRADLEY SLC 500
| Suitable I/O card | 1746 OB 32 |
Input data
| Nominal input voltage UN | 24 V DC |
| Input voltage range in reference to UN | 0.8 ... 1.1 |
| Input voltage range | 19.2 V DC ... 26.4 V DC |
| Typical input current at UN | 2 mA (without relay (light indicator)) |
| Protective circuit | Freewheeling diode; Freewheeling diode |
| Operating voltage display | Green LED |
| Status display/channel | Yellow LED |
Output data
| Compatible components | Miniature switching relay, REL-MR-24DC/21HC |
Switching
| Contact switching type | 1 changeover contact |
| Maximum Switching Voltage | 250 V AC/DC |
| Limiting Continuous Current | 5 A |
Controller level
| Connection Method | IDC/FLK pin strip |
| Number of Connections | 2 |
| Number of Positions | 40 |
| Pitch | 2.54 mm |
Field level
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Number of Connections | 52 |
| Number of Positions | 3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Signaling
| Status display present | Yes |
Dimensions
| Width | 259 mm |
| Height | 90 mm |
| Depth | 68 mm |
Material specifications
| Color | green (RAL 6021) |
| Housing insulation material | PVC, side panel PA non-reinforced, |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards and Regulations
| Standards/regulations | IEC 60664 |
| Standards/regulations | IEC 60664A |
| Standards/regulations | DIN VDE 0110 |
Mounting
| Assembly instructions | in rows with zero spacing |
| Mounting Position | any |
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
