Official DistributorSKU
MPN
UMK- F32M-VS
Weight
0.204 kg
Series UMK-F

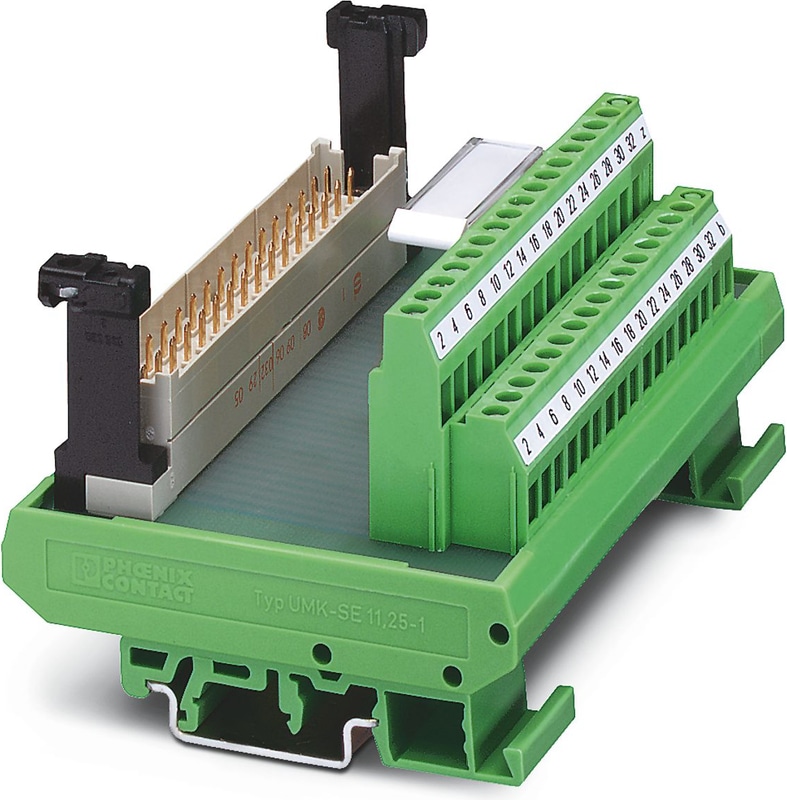

UMK- F32M-VS - Interface module
VARIOFACE module, for IEC 603/DIN 41612 connector, type F, 32-pos., z, b, components mounted, with male connector, cable housing with screw interlock
Technical Specifications
Product properties
| Number of Positions | 32 |
Electrical properties
| Nominal voltage UN | 250 V AC |
| Max. current carrying capacity per branch | 4 A |
Field level
| Connection in acc. with standard | IEC / EN |
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Controller level
| Connection Method | IEC 603/DIN 41612 connection |
| Number of Connections | 1 |
| Number of Positions | 32 |
Signaling
| Status display present | No |
Item dimensions
| Width | 112.5 mm |
| Height | 77 mm |
| Depth | 62.5 mm |
Material specifications
| Color | green (RAL 6021) |
| Housing insulation material | Polyamide PA non-reinforced |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 50 °C |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
Standards and Regulations
| Standards/regulations | DIN VDE 0110 |
Mounting
| Mounting Position | any |
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Why Proax for Phoenix Contact 2970099?
Proax is an authorized distributor of Phoenix Contact 2970099 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
