Official DistributorSKU
MPN
UM-RH 1004/4X21/W120
Weight
0.115 kg
Series UM-RH

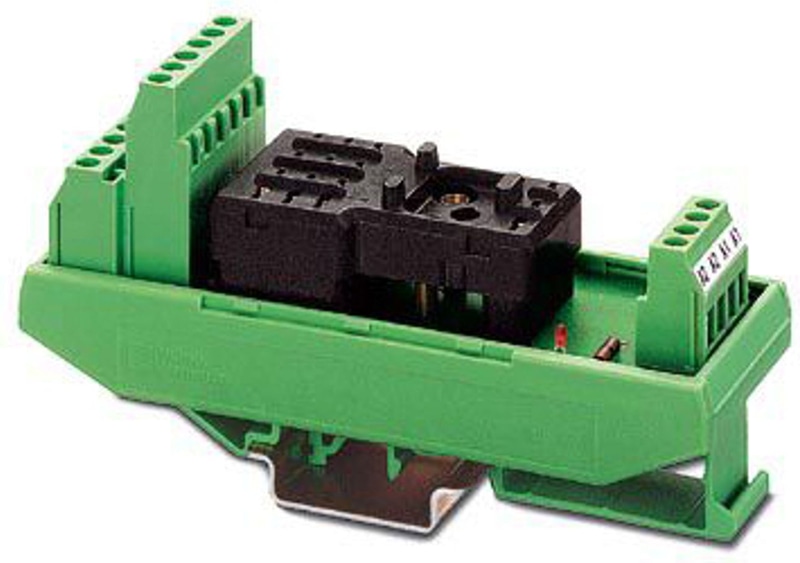

UM-RH 1004/4X21/W120 - Relay base
Universal module with Hartmann & Braun plug-in base for relay 1004, contact: 4 changeover contacts, with LED display, freewheeling and polarity protection diode, input voltage 120-230 V AC
Technical Specifications
Product properties
| Operating mode | 100% operating factor |
Electrical properties
| Protective circuit | Damping diode, polarity protection diode |
Input data
| Input voltage range | 120 V AC ... 230 V AC |
Input side
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Output side
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Signaling
| Status display | LED red |
Dimensions
| Width | 40 mm |
| Height | 111 mm |
| Depth | 59 mm |
Material specifications
| Color | green (RAL 6021) |
| Insulating material | PA |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
Standards and Regulations
| Standards/regulations | DIN VDE 0110 |
Mounting
| Mounting Type | DIN rail mounting |
| Assembly instructions | in rows with zero spacing |
| Mounting Position | any |
