2920528
Official DistributorSKU
PHX2920528
MPN
VAL-MS/1+1-BE
Weight
0.172 kg
Series VAL-MS

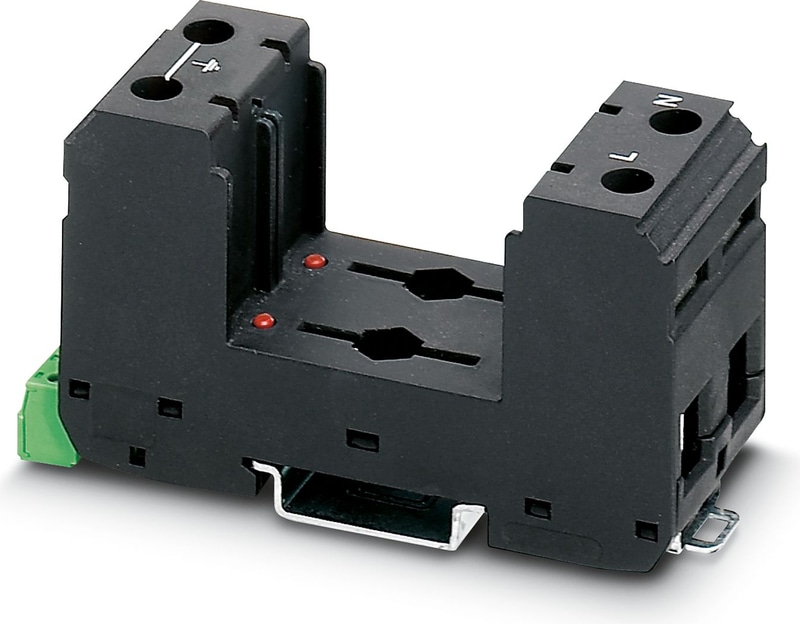

VAL-MS/1+1-BE - Type 2 surge protection base element
Base element for type 2 arresters of the VALVETRAB MS product range. Version for 1-phase power supply with separate installation of N and PE conductors.
- Quality proven millions of times over in the widest range of applications
- Rapid installation with bridges, thanks to industry-standard overall width of 1 HP
- Easy testing and insulation measurement, thanks to pluggable protection modules
- Wide range of applications due to various nominal voltages
- High degree of modularity provides individual solutions for every application
Technical Specifications
Product properties
| Product family | VALVETRAB MS |
| IEC test classification | II |
| IEC test classification | T2 |
| EN type | T2 |
| Type | Base element, DIN rail mounting |
| Number of Positions | 2 |
| Surge protection fault message | none |
Insulation characteristics
| Overvoltage category | III |
| Pollution degree | 2 |
Electrical properties
| Nominal frequency fN | 50 Hz (60 Hz) |
Connection data
| Connection Method | Screw connection |
| Screw thread | M5 |
| Tightening torque | 3 Nm (1.5 mm² ... 16 mm²) |
| Tightening torque | 4.5 Nm (25 mm² ... 35 mm²) |
| Stripping length | 16 mm |
| Conductor cross section flexible | 1.5 mm² ... 25 mm² |
| Conductor cross section rigid | 1.5 mm² ... 35 mm² |
| Conductor cross section AWG | 15 ... 2 |
| Connection Method | Fork-type cable lug |
| Conductor cross section flexible | 1.5 mm² ... 16 mm² |
Dimensions
| Width | 35.6 mm |
| Height | 89.8 mm |
| Depth | 51.5 mm (incl. DIN rail 7.5 mm) |
| Horizontal pitch | 2 Div. |
Material specifications
| Color | black (RAL 9005) |
| Flammability rating according to UL 94 | V-0 |
| CTI value of material | 600 |
| Insulating material | PBT |
| Material group | I |
| Housing Material | PBT |
Mechanical data
| Open side panel | No |
Protective circuit
| Direction of action | 1L-N & N-PE |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Maximum continuous voltage UC | 500 V AC |
| Rated load current IL | 80 A |
| Short-circuit current rating ISCCR | 25 kA |
| Max. backup fuse with V-type through wiring | 80 A (gG) |
| Max. backup fuse with branch wiring | 200 A (gG) |
Ambient conditions
| Degree of Protection | IP20 (only when all terminal points are used) |
| Ambient Temperature (Operation) | -40 °C ... 80 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | ≤ 2000 m (amsl) |
| Permissible humidity (operation) | 5 % ... 95 % |
| Shock (operation) | 25g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z) |
| Vibration (Operation) | 5g (10 ... 500 Hz / 2.5 h / X, Y, Z) |
UL specifications
| Nominal Voltage | 690 V AC |
| SPD Type | 4CA |
UL connection data
| Tightening torque | 30 lbf-in. |
| Conductor cross section AWG | 14 ... 2 |
Standards and Regulations
| Standards/specifications | IEC 61643-11 |
| Note | 2011 |
| Standards/specifications | EN 61643-11 |
| Note | 2012 |
Mounting
| Mounting Type | DIN rail: 35 mm |
Accessories
