Official DistributorSKU
MPN
FL CAT6 PATCH 0,5
Weight
0.032 kg
This product is Not Cancellable/Not Returnable
Series FL-CAT

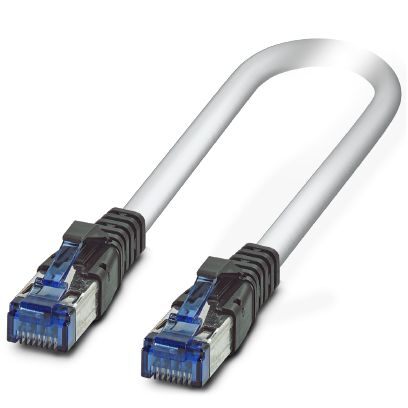

Patch cable - FL CAT6 PATCH 0,5
Patch cable, CAT6, pre-assembled, 0.5 m
Technical Specifications
Cable type
| Fixed cable length | 0.50 m |
| Shielding | S/FTP |
Ambient conditions
| Ambient Temperature (Operation) | -10 °C ... 60 °C |
External sheath
| Outer sheath, material | LSFROH |
| External Diameter | 5.50 mm |
| External diameter max. | 6.2 mm |
Single wire
| Single wires, quantity | 8 |
| Single wire, material | Cu litz wire |
| Single wire, cross section | 0.14 mm² |
Mechanical properties
| Smallest bending radius, fixed installation | 30 mm |
General
| Conductor length | 0.50 m |
| Nominal voltage UN | 150 Vrms |
| Transmission characteristics (category) | CAT6 |
| Transmission Speed | 1 Gbps |
| Degree of Protection | IP20 |
| Contact resistance | ≤ 0.003 Ω (IEC 60603-7) |
Behavior in fire
| Flame resistance | according to IEC 60332-3C |
| Concentration of fumes | in accordance with IEC 61034 |
| Halogen-free | according to IEC 60754-1 |
Standards and Regulations
| Concentration of fumes | in accordance with IEC 61034 |
| Flame resistance | according to IEC 60332-3C |
| Halogen-free | according to IEC 60754-1 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Accessories
Why Proax for Phoenix Contact 2891288?
Proax is an authorized distributor of Phoenix Contact 2891288 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
