Official DistributorSKU
MPN
FL CAT5 PATCH 0,3
Weight
0.023 kg
This product is Not Cancellable/Not Returnable
Series FL-CAT

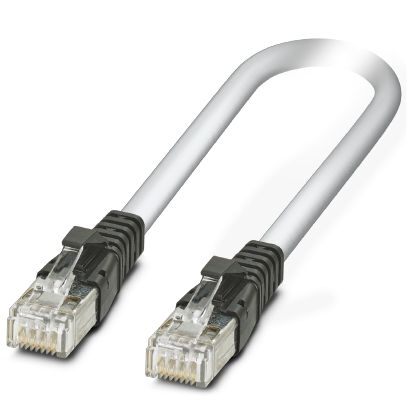

Patch cable - FL CAT5 PATCH 0,3
Patch cable, CAT5, assembled, 0.3 m
Technical Specifications
Cable type
| Fixed cable length | 0.30 m |
| Smallest bending radius, fixed installation | 50 mm (under load) |
| Cable structure | 2x2xAWG26/7; SF/UTP |
| Smallest bending radius, movable installation | 25 mm (without load) |
| Shielding | SF/UTP |
Ambient conditions
| Ambient Temperature (Operation) | -10 °C ... 60 °C |
External sheath
| Outer sheath, material | LSFROH |
| External Diameter | 5.80 mm |
| External diameter max. | 6 mm |
Single wire
| Single wires, quantity | 8 |
| Single wire, material | Cu litz wire |
| Single wire, cross section | 0.14 mm² |
Plug
| Connection profile | RJ45 |
Mechanical properties
| Smallest bending radius, fixed installation | 30 mm |
General
| Conductor length | 0.30 m |
| Nominal voltage UN | 150 Vrms |
| Transmission characteristics (category) | CAT5 |
| Transmission Speed | 1 Gbps |
| Degree of Protection | IP20 |
| Contact resistance | ≤ 0.003 Ω (IEC 60603-7) |
Behavior in fire
| Flame resistance | according to IEC 60332-3C |
| Concentration of fumes | in accordance with IEC 61034 |
| Halogen-free | according to IEC 60754-1 |
Standards and Regulations
| Concentration of fumes | in accordance with IEC 61034 |
| Flame resistance | according to IEC 60332-3C |
| Halogen-free | according to IEC 60754-1 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Accessories
