2884952
Official DistributorSKU
PHX2884952
MPN
FL BT SPA
Weight
0.235 kg

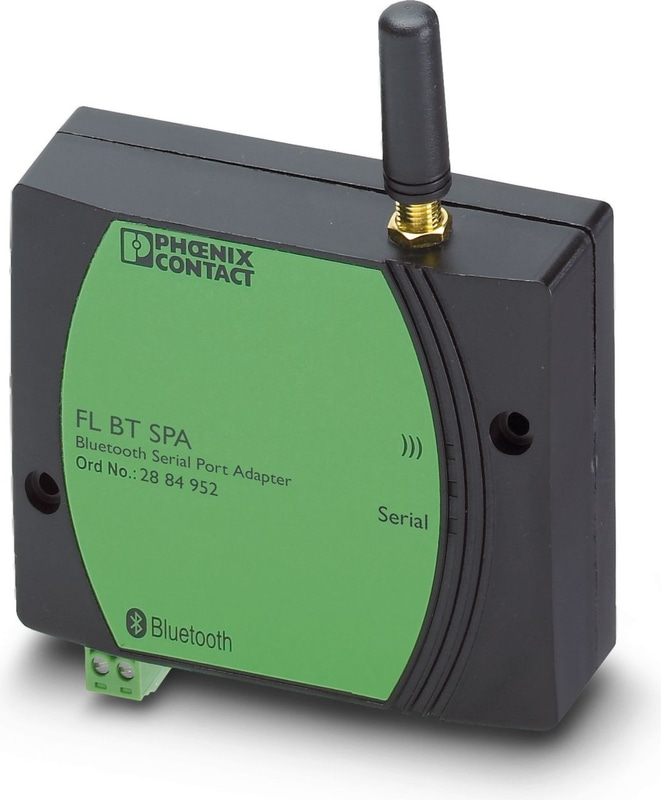

FL BT SPA - Wireless module
Factoryline Wireless Bluetooth Serial Port Adapter, as a wireless connection from a serial interface to an FL BLUETOOTH AP.
Documents
Technical Specifications
Product properties
| Type | Stand-Alone |
Wireless card
| Number | 1 |
| Type | Bluetooth 2.4 GHz up to 1 Mbps |
| Assembly note | Permanently installed |
Electrical properties
| Maximum power dissipation for nominal condition | 4.8 W |
Supply: Module electronics
| Connection Method | Via COMBICON |
| Supply Voltage | 24 V DC |
| Supply Voltage Range | 9 V DC ... 30 V DC |
| Supply current | 200 mA |
| Current consumption | 200 mA |
Antenna
| Number | 1 |
| Connection Method | SMA (male) |
Functions
| Operating modes | Serial client adapters |
| Configuration | By means of AT commands |
| Automatic channel selection | FHSS, AFH |
| Security | 128-bit data encryption |
| Security | MAC filter |
| Security | Authentication |
| Security | PIN |
| Security | Non-discoverable |
| Wireless licenses | Europe, additional countries in the e-shop |
| Country support | Australia (Special rule: Please contact the Product Manager) |
| Country support | Belgium |
| Country support | Bulgaria |
| Country support | Denmark |
| Country support | Germany |
| Country support | Estonia |
| Country support | Finland |
| Country support | France |
| Country support | Greece |
| Country support | Great Britain |
| Country support | Ireland |
| Country support | Iceland |
| Country support | Israel |
| Country support | Italy |
| Country support | Canada |
| Country support | Latvia |
| Country support | Liechtenstein |
| Country support | Lithuania |
| Country support | Luxembourg |
| Country support | Malta |
| Country support | Netherlands |
| Country support | Norway |
| Country support | Austria |
| Country support | Poland |
| Country support | Portugal |
| Country support | Romania |
| Country support | Russia (Special rule: Please contact the Product Manager) |
| Country support | Sweden |
| Country support | Switzerland |
| Country support | Singapore |
| Country support | Slovakia |
| Country support | Slovenia |
| Country support | Spain |
| Country support | Czech Republic |
| Country support | Turkey |
| Country support | Hungary |
| Country support | USA |
| Country support | Cyprus (rep.) |
Serial
| Connection Method | D-SUB 9 plug |
| Protocols Supported | RS-232, RS-485, RS-422 |
Wireless
| Designation | Bluetooth |
| Antenna Connection Method | SMA (female) |
| Frequency Range | 2.402 GHz ... 2.48 GHz (ISM bandwidth) |
| Frequency band | 2.4 GHz |
| Wireless Standard | Bluetooth 2.0 |
| Transmission power | max. 14 dBm (with automatic control) |
| Number of wireless interfaces | 1 |
| Wireless modules that can be connected | 1 |
| Profiles supported | SPP |
Dimensions
| Width | 80 mm |
| Height | 65 mm |
| Depth | 25 mm |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -25 °C ... 55 °C |
| Air pressure (operation) | 795 hPa ... 1080 hPa (up to 2000 m above sea level) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 90 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
Standards and Regulations
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting
| Mounting Type | Panel mounting, optional DIN rail mounting |
| Mounting Type | Panel mounting |
| Assembly note | External OMNI antenna, antennas can be exchanged |
