Official DistributorSKU
MPN
FL BT EPA
Weight
0.244 kg
Series FL-BT-EPA

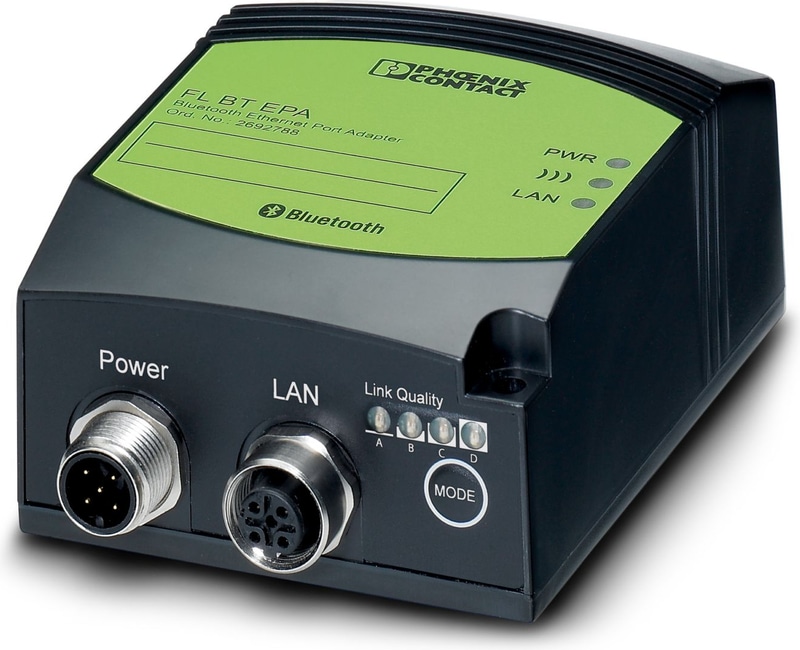

FL BT EPA - Wireless module
Factoryline Wireless Bluetooth Ethernet port adapter; 2.4 GHz frequency band, 1 wireless interface, WLAN black channel list, LEM, country approvals, IP65, connections: M12 connection for 9 V DC ... 30 V DC, M12 for LAN, autocrossing, compatible with PROFINET and PROFIsafe
- WLAN coexistence functions AFH, LEM, black channel listing
- Protocol-transparent communication on Layer 2
- Degree of protection IP65
- Integrated special antenna (EPA)
- Range* of up to 200 m
Technical Specifications
Product properties
| Product family | AS-i |
| Type | Stand-Alone |
Wireless card
| Number | 1 |
| Assembly instructions | Permanently installed |
Electrical properties
| Maximum power dissipation for nominal condition | 1.104 W |
Supply: Module electronics
| Connection Method | M12 connector (A-coded, male) |
| Supply Voltage | 24 V DC |
| Supply Voltage Range | 9 V DC ... 30 V DC |
| Supply current | 46 mA (at 24 V DC) |
| Current consumption | 46 mA (at 24 V DC) |
Digital:
| Number of Inputs | 1 |
Ethernet
| Interface | Ethernet |
| Number | 1 |
| Connection Method | M12 connectors (D-coded, female) |
Antenna
| Number | 1 |
| Connection Method | permanently installed |
Functions
| Operating modes | Ethernet client adapter |
| Configuration | Web interface, MODE button, AT commands (TCP/IP), SSC |
| Automatic channel selection | FHSS, AFH |
| Quality of service (QoS) | Yes |
| Security | 128-bit data encryption |
| Security | Authentication |
| Security | PIN |
| Security | Non-discoverable |
| Wireless licenses | Europe, additional countries in the e-shop |
| Country support | Belgium |
| Country support | Bulgaria |
| Country support | Denmark |
| Country support | Germany |
| Country support | Estonia |
| Country support | Finland |
| Country support | France |
| Country support | Greece |
| Country support | Great Britain |
| Country support | Ireland |
| Country support | Iceland |
| Country support | Italy |
| Country support | Japan |
| Country support | Canada |
| Country support | Latvia |
| Country support | Liechtenstein |
| Country support | Lithuania |
| Country support | Luxembourg |
| Country support | Malta |
| Country support | Netherlands |
| Country support | Norway |
| Country support | Austria |
| Country support | Poland |
| Country support | Portugal |
| Country support | Romania |
| Country support | Sweden |
| Country support | Switzerland |
| Country support | Slovakia |
| Country support | Slovenia |
| Country support | Spain |
| Country support | Czech Republic |
| Country support | Hungary |
| Country support | USA |
| Country support | Cyprus (rep.) |
Wireless
| Designation | Bluetooth |
| Antenna Connection Method | (Internal) |
| Frequency Range | 2.402 GHz ... 2.48 GHz (ISM bandwidth) |
| Frequency band | 2.4 GHz |
| Wireless Standard | Bluetooth 2.1 + EDR |
| Transmission power | max. 15 dBm (EIRP) |
| Number of wireless interfaces | 1 |
| Wireless modules that can be connected | 1 |
| Profiles supported | PAN |
Dimensions
| Width | 66 mm |
| Height | 91 mm |
| Depth | 34 mm |
| Note on dimensions | Without M12 connections |
Ambient conditions
| Degree of Protection | IP65 |
| Ambient Temperature (Operation) | -40 °C ... 65 °C |
| Air pressure (operation) | 795 hPa ... 1080 hPa (up to 2000 m above sea level) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 90 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 90 % (non-condensing) |
Standards and Regulations
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting
| Mounting Type | Wall mounting |
| Mounting Type | Wall mounting |
| Assembly instructions | Internal circularly polarized panel antenna |
Why Proax for Phoenix Contact 2692788?
Proax is an authorized distributor of Phoenix Contact 2692788 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
