Official DistributorSKU
MPN
FL BT EPA AIR SET
Weight
1.086 kg
Series FL-BT-EPA-AIR-SET

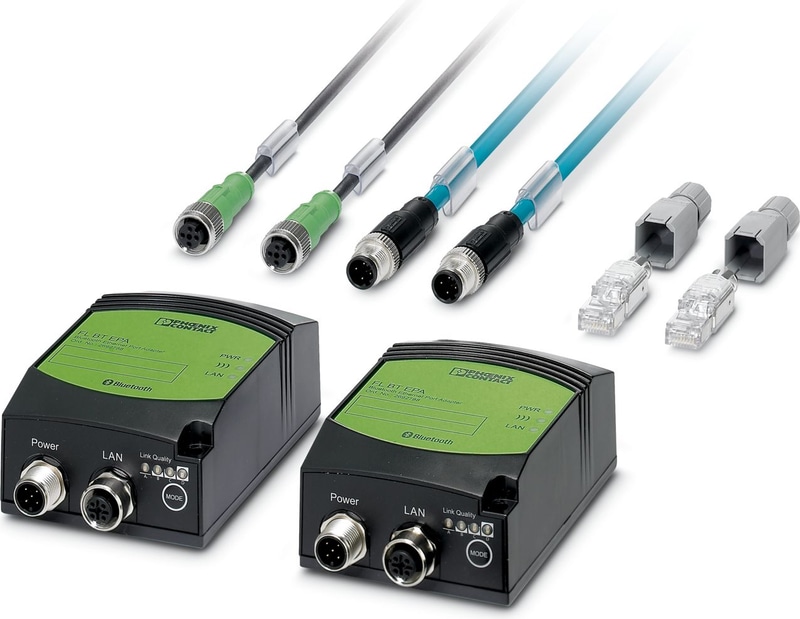

FL BT EPA AIR SET - Wireless set
Factoryline Wireless Bluetooth Ethernet port adapter set; Bluetooth V2.0; 2.4 GHz frequency band; 1 wireless interface per module; WLAN black channel list; LEM; country approvals; IP65; M12 connection for 9 - 30 V DC and LAN; autocrossing, compatible with PROFINET and PROFIsafe
- Protocol-transparent communication on Layer 2
- WLAN coexistence functions AFH, LEM, black channel listing
- Degree of protection IP65
- Range* of up to 200 m
- Integrated special antenna (EPA)
Technical Specifications
Product properties
| Type | Stand-Alone |
Wireless card
| Number | 1 |
| Assembly instructions | Permanently installed |
Electrical properties
| Maximum power dissipation for nominal condition | 1.104 W |
Supply: Module electronics
| Connection Method | M12 connector (A-coded, male) |
| Supply Voltage | 24 V DC |
| Supply Voltage Range | 9 V DC ... 30 V DC |
| Supply current | 46 mA (at 24 V DC) |
| Current consumption | 46 mA (per module at 24 V DC) |
Digital:
| Number of Inputs | 1 |
Ethernet
| Interface | Ethernet |
| Number | 1 |
| Connection Method | M12 connectors (D-coded, female) |
Antenna
| Number | 1 |
| Connection Method | permanently installed |
Functions
| Operating modes | Ethernet client adapter |
| Configuration | Web interface, MODE button, AT commands (TCP/IP), SSC |
| Automatic channel selection | FHSS, AFH |
| Quality of service (QoS) | Yes |
| Security | 128-bit data encryption |
| Security | Authentication |
| Security | PIN |
| Security | Non-discoverable |
| Wireless licenses | Europe, additional countries in the e-shop |
| Country support | Belgium |
| Country support | Bulgaria |
| Country support | Denmark |
| Country support | Germany |
| Country support | Estonia |
| Country support | Finland |
| Country support | France |
| Country support | Greece |
| Country support | Great Britain |
| Country support | Ireland |
| Country support | Iceland |
| Country support | Italy |
| Country support | Canada |
| Country support | Latvia |
| Country support | Liechtenstein |
| Country support | Lithuania |
| Country support | Luxembourg |
| Country support | Malta |
| Country support | Netherlands |
| Country support | Norway |
| Country support | Austria |
| Country support | Poland |
| Country support | Portugal |
| Country support | Romania |
| Country support | Sweden |
| Country support | Switzerland |
| Country support | Slovakia |
| Country support | Slovenia |
| Country support | Spain |
| Country support | Czech Republic |
| Country support | Hungary |
| Country support | USA |
| Country support | Cyprus (rep.) |
Wireless
| Designation | Bluetooth |
| Antenna Connection Method | (Internal) |
| Frequency Range | 2.402 GHz ... 2.48 GHz (ISM bandwidth) |
| Frequency band | 2.4 GHz |
| Wireless Standard | Bluetooth 2.1 + EDR |
| Transmission power | max. 15 dBm (EIRP) |
| Number of wireless interfaces | 1 |
| Wireless modules that can be connected | 1 |
| Profiles supported | PAN |
Dimensions
| Width | 66 mm |
| Height | 91 mm |
| Depth | 34 mm |
| Note on dimensions | Without M12 connections |
Ambient conditions
| Degree of Protection | IP65 |
| Ambient Temperature (Operation) | -40 °C ... 65 °C |
| Air pressure (operation) | 795 hPa ... 1080 hPa (up to 2000 m above sea level) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 90 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 90 % (non-condensing) |
Standards and Regulations
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting
| Mounting Type | Wall mounting |
| Mounting Type | Wall mounting |
| Assembly instructions | Internal circularly polarized panel antenna |
