OT80FD8
Official DistributorBy ABB
SKU
ABBOT80FD8
MPN
1SCA112404R1001
Weight
0.67 kg

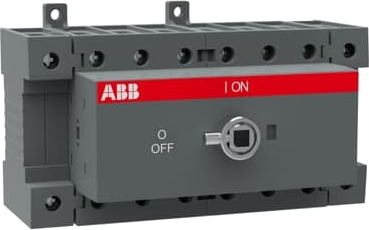

8-pole, front operated, base mounted, DIN-rail mountable switch-diconnector / non-fusible diconnect switch with protected clamp terminals, handle and shaft are not included
Technical Specifications
ABB EcoSolutions
| Environmental Information | 1SCC301263D0201 |
| Environmental Product Declaration - EPD | 1SCC301279D0201 |
Dimensions
| Product Net Width | 140 mm |
| Product Net Height | 91.5 mm |
| Product Net Depth / Length | 84.5 mm |
| Product Net Weight | 0.67 kg |
Technical
| Cable Cross-Section | Cu 1.5 ... 35 mm² |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 80 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 80 A |
| Degree of Protection | Front IP20 |
| Distance Between Phases | Standard |
| Fourth Pole Position | Left Side |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Type | Knob |
| Handle Type | Handle and shaft not included |
| Mechanical Durability | 20000 |
| Mounting Type | Base mounting |
| Number of Poles | 8P |
| Operating mode | Front |
| Pollution degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Position of Line Terminals | Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 4.5 W |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 80 A |
| Rated Operational Current AC-21A (Ie) | (500 V) 80 A |
| Rated Operational Current AC-21A (Ie) | (690 V) 80 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 80 A |
| Rated Operational Current AC-22A (Ie) | (500 V) 80 A |
| Rated Operational Current AC-22A (Ie) | (690 V) 80 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 75 A |
| Rated Operational Current AC-23A (Ie) | (500 V) 58 A |
| Rated Operational Current AC-23A (Ie) | (690 V) 20 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 22 kW |
| Rated Operational Power AC-23A (Pe) | (400 ... 415 V) 37 kW |
| Rated Operational Power AC-23A (Pe) | (500 V) 37 kW |
| Rated Operational Power AC-23A (Pe) | (690 V) 18.5 kW |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 2.1 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1.5 kA |
| Special Functions | No |
| Standards | IEC 60947-3 / UL 508 / CSA C22.2 No. 14 |
| Switches Operating Mechanism | Mechanism on Top of the Switch |
| Terminal Type | Screw Terminals |
| Tightening torque | acc. IEC 60947-1 2 N·m |
Technical UL/CSA
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 80 A |
| Horsepower Rating UL/CSA | (110 ... 120 V AC) Single Phase 2 Hp |
| Horsepower Rating UL/CSA | (240 V AC) Single Phase 10 Hp |
| Horsepower Rating UL/CSA | (440 ... 480 V AC) Single Phase 20 Hp |
| Horsepower Rating UL/CSA | (550 ... 600 V AC) Single Phase 20 Hp |
| Horsepower Rating UL/CSA | (220 ... 240 V AC) Three Phase 20 Hp |
| Horsepower Rating UL/CSA | (440 ... 480 V AC) Three Phase 40 Hp |
| Horsepower Rating UL/CSA | (550 ... 600 V AC) Three Phase 40 Hp |
| Tightening torque | acc. IEC 60947-1 2 N·m |
| Tightening Torque UL/CSA | 18 in·lb |
Why Proax for ABB OT80FD8?
Proax is an authorized distributor of ABB OT80FD8 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
