Official DistributorSKU
MPN
MNT-TV-SAT D
Weight
0.314 kg
This product is Not Cancellable/Not Returnable
MNT-TV-SAT D - Type 3 surge protection device

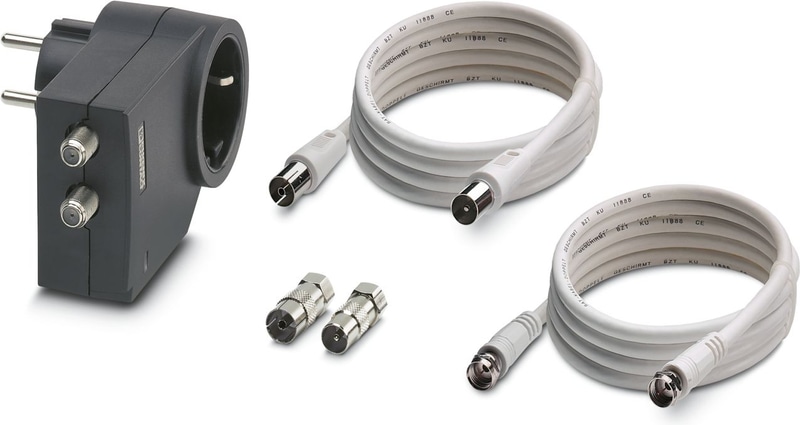

Socket attachment plug with surge protection for the power supply unit and signal connection for radio and television equipment (cable, terrestrial antenna, satellite system). Cable is provided.
- Optimal additional protection of the building installation for longer service life and increased availability of the end devices
- Industrial quality for residential buildings, thanks to compliance with international product standard
- Meets the most stringent safety requirements with thermal monitoring and additional fuses
- Ideal addition to the C-SAT surge protective device, direct end device protection
Technical Specifications
General
| Note | Shielding requirements according to DIN EN 50083-2, Class A |
Product properties
| Product family | MAINTRAB |
| IEC test classification | C2 |
| IEC test classification | C3 |
| IEC test classification | D1 |
| IEC power supply system | TN |
| IEC power supply system | TT |
| Type | Attachment plug |
| Number of Positions | 2 |
| For country-specific use in | D, A, NL, E, S, FIN, TR |
| Surge protection fault message | optical |
Insulation characteristics
| Overvoltage category | II |
| Pollution degree | 2 |
| IEC test classification | III |
| IEC test classification | T3 |
| EN type | T3 |
| Number of Ports | One |
Connection data
| Connection Method | F connector |
| Connection Method | Grounding plug/socket |
Dimensions
| Width | 63 mm |
| Height | 107 mm |
| Depth | 78 mm |
Material specifications
| Color | black (RAL 9005) |
| Color | black (RAL 9005) |
| Flammability rating according to UL 94 | V-0 |
| CTI value of material | 400 |
| CTI value of material | 600 |
| Insulating material | PA 6 |
| Housing Material | PA 6 |
Power supplies
| Direction of action | L/N-PE & Signal Line-Shield-Earth Ground |
| Nominal voltage UN | 230/400 V AC (TN/TT) |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Maximum continuous operating voltage UC (L-N) | 275 V AC |
| Maximum continuous operating voltage UC (L-PE) | 360 V AC |
| Maximum continuous operating voltage UC (N-PE) | 360 V AC |
| Rated load current IL | 16 A (30 °C) |
| Residual current IPE | ≤ 5 µA |
| Standby power consumption PC | ≤ 1.00 VA |
| Reference test voltage UREF | 255.00 V AC |
| Combination wave UOC | 6 kV |
| Voltage protection level Up | ≤ 1.5 kV |
| TOV behavior at UT (L-N) | 460 V AC (5 s / withstand mode) |
| TOV behavior at UT (L-N) | 460 V AC (120 min / safe failure mode) |
| TOV behavior at UT (L-PE) | 460 V AC (5 s / withstand mode) |
| TOV behavior at UT (L-PE) | 460 V AC (120 min / withstand mode) |
| TOV behavior at UT (L-PE) | 1455 V AC (200 ms / safe failure mode) |
| TOV behavior at UT (N-PE) | 1200 V AC (200 ms / safe failure mode) |
| Response time tA (L-N) | ≤ 25 ns |
| Response time tA (L-PE) | ≤ 100 ns |
| Response time tA (N-PE) | ≤ 100 ns |
| Max. required back-up fuse | 16 A (gG / B / C) |
| Short-circuit current rating ISCCR | 1.5 kA AC |
Information technology
| Maximum continuous voltage UC | 24 V DC |
| Rated current | 1.5 A (25 °C) |
| Operating effective current IC at UC | ≤ 1 µA |
| Standby power consumption PC | ≤ 1.00 VA |
| Residual current IPE | ≤ 1 µA |
| Insulation resistance Riso | ≥ 70 MΩ |
| Insulation resistance Riso | ≥ 70 MΩ |
| Nominal discharge current In (8/20) µs (line-ground) | 2.5 kA |
| Nominal discharge current In (8/20) µs (line-shield) | 2.5 kA |
| Nominal discharge current In (8/20) µs (shield-ground) | 5 kA |
| Total discharge current Itotal (8/20) µs | 5 kA |
| Nominal pulse current Ian (10/1000) µs (line-shield) | 120 A |
| Nominal pulse current Ian (10/1000) µs (shield-ground) | 200 A |
| Output voltage limitation at 1 kV/µs (line-shield) spike | ≤ 700 V |
| Output voltage limitation at 1 kV/µs (shield-ground) spike | ≤ 1 kV |
| Output voltage limitation at 1 kV/µs (line-shield) static | ≤ 700 V |
| Output voltage limitation at 1 kV/µs(shield-ground) static | ≤ 1 kV |
| Residual voltage at In (conductor-shield) | ≤ 40 V |
| Residual voltage at In (shield-ground) | ≤ 50 V |
| Voltage protection level Up (line-shield) | ≤ 700 V (C2 - 2 kA) |
| Voltage protection level Up (shield-ground) | ≤ 1.2 kV (C2 - 5 kA) |
| Response time tA (line-shield) | ≤ 100 ns |
| Response time tA (shield-ground) | ≤ 100 ns |
| Input attenuation aE, asym. | typ. 0.3 dB (≤ 2.4 GHz /75 Ω) |
| Cut-off frequency fg (3 dB), asym. (shield) in 75 Ω system | typ. 2.5 GHz |
| Frequency Range | 0 Hz ... 2400 MHz |
| Capacity asymmetrical (shield) | typ. 10 pF |
| Alternating current carrying capacity (line-shield) | 5 A - 1 s |
| Alternating current carrying capacity (shield-ground) | 10 A - 1 s |
| Pulse reset time (line-shield) | ≤ 4 s |
Ambient conditions
| Degree of Protection | IP20 (Child-proofing) |
| Ambient Temperature (Operation) | -25 °C ... 75 °C |
| Ambient temperature (storage/transport) | -25 °C ... 75 °C |
| Altitude | ≤ 2000 m (amsl) |
| Permissible humidity (operation) | 5 % ... 95 % |
Standards and Regulations
| Standards/specifications | IEC 61643-11 |
| Note | 2011 |
| Standards/specifications | EN 61643-11 |
| Note | 2019 |
| Standards/specifications | EN 61643-21 |
| Note | A2:2013 |
| Standards/specifications | IEC 61643-21 |
| Note | A2:2012 |
| Standards/specifications | EN 50083 |
| Note | CLASS-A |
Mounting
| Mounting Type | Plugging into the mains socket |
