Official DistributorSKU
MPN
MNT-TV D/WH
Weight
0.151 kg

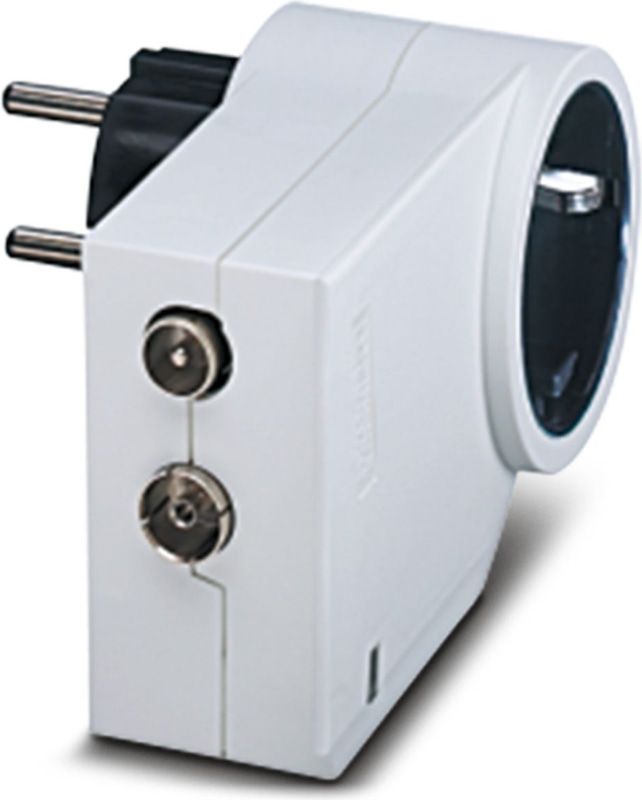

MNT-TV D/WH - Type 3 surge protection device
MAINTRAB, combination surge protection adapter for plugging into a socket, for device and TV protection. Color: white
Technical Specifications
Product properties
| IEC test classification | C2 + D1 |
| VDE requirement class | C2 + D1 |
| Type | Attachment plug |
| For country-specific use in | D, A, I, NL, S, E, FIN, P |
| Surge protection fault message | optical |
| EN type | T3 |
Connection data
| Connection Method | TV connector |
Dimensions
| Width | 63 mm |
| Height | 79 mm |
| Depth | 103.5 mm |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Housing Material | PA |
Mechanical data
| Open side panel | No |
Power supplies
| Direction of action | L-N-PE & Signal Line-Signal Line-Earth Ground |
| Nominal frequency fN | 50 Hz |
| Nominal frequency fN | 60 Hz |
| Maximum continuous voltage UC | 250 V AC |
| Residual current IPE | ≤ 1 µA |
| Operating effective current IC at UC | ≤ 4 mA |
| Nominal discharge current In (8/20) µs (L-N) | 1.5 kA |
| Nominal discharge current In (8/20) µs (L-PE) | 1.5 kA |
| Maximum discharge current Imax (8/20) µs | 5 kA (total current) |
| 100 % lightning impulse sparkover voltage (1.2/50) µs (L-PE) | ≤ 1.1 kV |
| Energy absorption symmetrical | 80 J |
| Enery absorption, asymmetrical | 40 J |
| Voltage protection level Up (L-N) | ≤ 1.5 kV |
| Voltage protection level Up (L-PE) | ≤ 1.5 kV |
| Voltage protection level Up (N-PE) | ≤ 1.5 kV |
| Residual voltage at In | ≤ 1.2 kV |
| Residual voltage at In | ≤ 900 V |
| Residual voltage at In | ≤ 900 V |
| Response time tA (L-N) | ≤ 25 ns |
| Response time tA (L-PE) | ≤ 100 ns |
| Max. required back-up fuse | 16 A (gL/C) |
Information technology
| Maximum continuous voltage UC (line-earth) | 72 V DC |
| Maximum continuous voltage UC (line-earth) | 50 V AC |
| Nominal discharge current In (8/20) µs (line-ground) | ≤ 5 kA |
| Nominal discharge current In (8/20) µs (line-shield) | ≤ 2.5 kA |
| Output voltage limitation at 1 kV/µs (line-earth) spike | 1000 V |
| Output voltage limitation at 1 kV/µs (line-shield) spike | ≤ 500 V |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 600 V |
| Output voltage limitation at 1 kV/µs (line-shield) static | ≤ 600 V |
| Residual voltage at In (conductor-ground) | ≤ 30 V |
| Residual voltage at In (conductor-shield) | ≤ 30 V |
| Response time tA (line-earth) | ≤ 100 ns |
| Response time tA (line-shield) | ≤ 100 ns |
| Cut-off frequency fg (3 dB), sym. in 75 Ω system | 1 GHz |
Ambient conditions
| Degree of Protection | IP20, child-proof |
| Ambient Temperature (Operation) | -20 °C ... 75 °C |
Standards and Regulations
| VDE requirement class | C2 + D1 |
Standards Information technology specification
| Standards/regulations | IEC 61643-1 |
| Standards/regulations | EN 61643-11 |
| Standards/regulations | IEC 61643-21 |
| Standards/regulations | IEC 61643-21 |
Mounting
| Mounting Type | Plugging into the mains socket |
