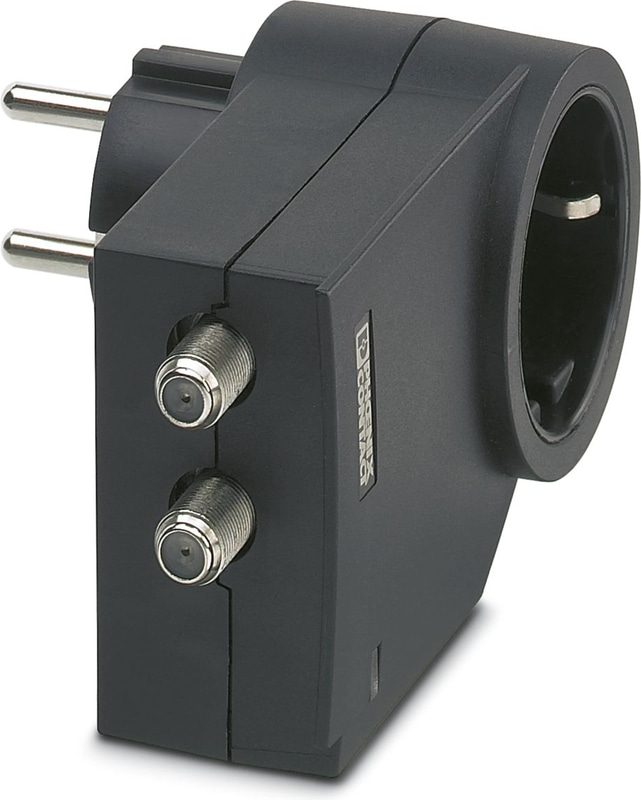

MNT-TV-SAT D - Type 3 surge protection device
Socket attachment plug with surge voltage device protection for the power supply unit and signal connection for radio and television equipment (cable, terrestrial antenna, satellite system).
Technical Specifications
Product properties
| IEC test classification | C2 + D1 |
| VDE requirement class | C2 + D1 |
| Type | Attachment plug |
| For country-specific use in | D, A, I, NL, S, E, FIN, P |
| Surge protection fault message | optical |
| EN type | T3 |
Connection data
| Connection Method | F connector |
Dimensions
| Width | 63 mm |
| Height | 79 mm |
| Depth | 106.5 mm |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Housing Material | PA |
Mechanical data
| Open side panel | No |
Power supplies
| Direction of action | L-N-PE & Signal Line-Signal Line-Earth Ground |
| Nominal frequency fN | 50 Hz |
| Nominal frequency fN | 60 Hz |
| Maximum continuous voltage UC | 250 V AC |
| Residual current IPE | ≤ 1 µA |
| Operating effective current IC at UC | ≤ 4 mA |
| Nominal discharge current In (8/20) µs (L-N) | 1.5 kA |
| Nominal discharge current In (8/20) µs (L-PE) | 1.5 kA |
| Maximum discharge current Imax (8/20) µs | 5 kA (total current) |
| 100 % lightning impulse sparkover voltage (1.2/50) µs (L-PE) | ≤ 1.1 kV |
| Energy absorption symmetrical | 80 J |
| Enery absorption, asymmetrical | 40 J |
| Voltage protection level Up (L-N) | ≤ 1.5 kV |
| Voltage protection level Up (L-PE) | ≤ 1.5 kV |
| Voltage protection level Up (N-PE) | ≤ 1.5 kV |
| Residual voltage at In | ≤ 1.2 kV |
| Residual voltage at In | ≤ 900 V |
| Residual voltage at In | ≤ 900 V |
| Response time tA (L-N) | ≤ 25 ns |
| Response time tA (L-PE) | ≤ 100 ns |
| Max. required back-up fuse | 16 A (gL/C) |
Information technology
| Maximum continuous voltage UC (line-earth) | 72 V DC |
| Maximum continuous voltage UC (line-earth) | 50 V AC |
| Nominal discharge current In (8/20) µs (line-ground) | ≤ 5 kA |
| Nominal discharge current In (8/20) µs (line-shield) | ≤ 2.5 kA |
| Output voltage limitation at 1 kV/µs (line-earth) spike | 1000 V |
| Output voltage limitation at 1 kV/µs (line-shield) spike | ≤ 500 V |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 600 V |
| Output voltage limitation at 1 kV/µs (line-shield) static | ≤ 600 V |
| Residual voltage at In (conductor-ground) | ≤ 30 V |
| Residual voltage at In (conductor-shield) | ≤ 30 V |
| Response time tA (line-earth) | ≤ 100 ns |
| Response time tA (line-shield) | ≤ 100 ns |
| Cut-off frequency fg (3 dB), sym. in 75 Ω system | 2.2 GHz (SAT) |
Ambient conditions
| Degree of Protection | IP20, child-proof |
| Ambient Temperature (Operation) | -20 °C ... 75 °C |
Standards and Regulations
| VDE requirement class | C2 + D1 |
Standards Information technology specification
| Standards/regulations | IEC 61643-1 |
| Standards/regulations | EN 61643-11 |
| Standards/regulations | IEC 61643-21 |
| Standards/regulations | IEC 61643-21 |
Mounting
| Mounting Type | Plugging into the mains socket |
