Official DistributorSKU
MPN
FLT-CP-350-ST
Weight
0.154 kg
This product is Not Cancellable/Not Returnable
Series FLT-CP

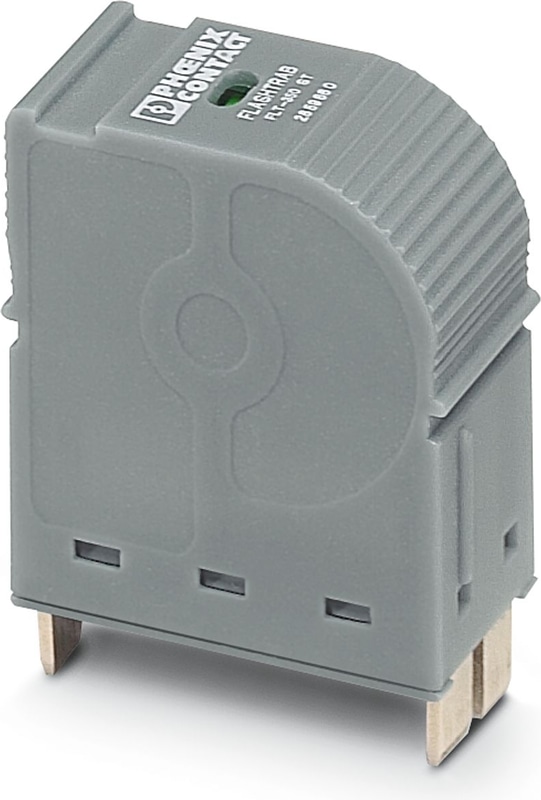

FLT-CP-350-ST - Type 1 surge protection plug
Type 1 / Class I / B arrester (lightning current arrester) replacement plug for paths L-N and L-PEN, can be combined with FLASHTRAB compact series of products.
Technical Specifications
General
| Note | Only in parallel connection with VAL-CP-350-ST. The technical parameters are based on the combination of the two products. |
Product properties
| IEC test classification | I / II |
| IEC test classification | T1 / T2 |
| EN type | T1 / T2 |
| IEC power supply system | TN |
| IEC power supply system | TT |
| Type | Male |
| Number of Positions | 1 |
| Surge protection fault message | optical |
Insulation characteristics
| Overvoltage category | III |
| Pollution degree | 2 |
Electrical properties
| Nominal frequency fN | 50 Hz (60 Hz) |
Connection data
| Connection Method | pluggable |
Dimensions
| Width | 23.5 mm |
| Height | 46.6 mm |
| Depth | 56.4 mm |
| Horizontal pitch | 2 Div. |
Material specifications
| Color | blue grey (RAL 7031) |
| Color | black (RAL 9005) |
| Flammability rating according to UL 94 | V-0 |
| CTI value of material | 600 |
| Insulating material | PA 6.6/PBT |
| Material group | I |
| Housing Material | PBT |
Protective circuit
| Mode of protection | L-PEN |
| Mode of protection | L-N |
| Direction of action | L-N / L-PEN |
| Nominal voltage UN | 240 V AC (TN) |
| Nominal voltage UN | 240 V AC (TT) |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Maximum continuous voltage UC | 350 V AC |
| Nominal discharge current In (8/20) µs | 25 kA |
| Impulse discharge current (10/350) µs, charge | 12.5 As |
| Impulse discharge current (10/350) µs, specific energy | 160 kJ/Ω |
| Impulse discharge current (10/350) µs, peak value limp | 25 kA |
| Follow current interrupt rating Ifi | 25 kA (264 V AC) |
| Follow current interrupt rating Ifi | 3 kA (350 V AC) |
| Short-circuit current rating ISCCR | 25 kA (264 V AC) |
| Short-circuit current rating ISCCR | 3 kA (350 V AC) |
| Voltage protection level Up | ≤ 1.5 kV |
| Residual voltage Ures | ≤ 1.5 kV (at In) |
| Residual voltage Ures | ≤ 1.2 kV (at 10 kA) |
| Residual voltage Ures | ≤ 1 kV (at 5 kA) |
| Residual voltage Ures | ≤ 0.9 kV (at 3 kA) |
| Front of wave sparkover voltage at 6 kV (1.2/50) µs | ≤ 1.5 kV |
| TOV behavior at UT | 415 V AC (5 s / withstand mode) |
| TOV behavior at UT | 457 V AC (120 min / safe failure mode) |
| Response time tA | ≤ 25 ns |
| Max. backup fuse with branch wiring | 315 A (gG) |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 80 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | ≤ 2000 m (amsl) |
| Permissible humidity (operation) | 5 % ... 95 % |
| Shock (operation) | 25g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z) |
| Vibration (Operation) | 5g (5 - 500 Hz/2.5 h/X, Y, Z) |
UL specifications
| Maximum continuous operating voltage MCOV (L-N) | 264 V AC |
| Nominal discharge current In (L-N) | 20 kA |
| Mode of protection | L-N |
| Nominal Voltage | 240 V AC |
| Power distribution system | Split phase |
| Nominal frequency | 50/60 Hz |
| Measured limiting voltage MLV (L-N) | 1340 V |
| Follow current (L-N) | 10 kA (264 V AC) |
| SPD Type | 4CA |
Air clearances and creepage distances
| Standards/regulations | IEC 664-1 / IEC 61643-1 / IEC 61643-11 |
| Standards/specifications | IEC 61643-11 |
| Note | 2011 |
| Standards/specifications | EN 61643-11 |
| Note | 2012 |
Mounting
| Mounting Type | on base element |
